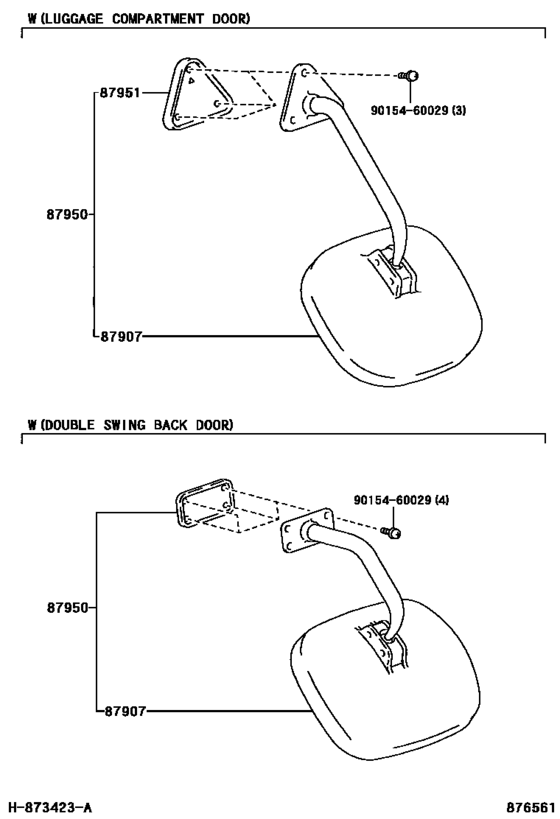

Mirror ([10.2003 - ] REAR UNDER MIRROR (0310- )) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87907
|
87907
87907-36020 Mirror Sub-Assy, Outer Under View[10.2003 - 11.2004] BB5#,RZB5#..20S,24S |
87907-36020 |
US $214.64 |
||
|
87907
|
87907
87907-36040
Mirror Sub-Assy, Outer Under View
[11.2004 - 12.2006] BB5#,RZB5# W(LUGGAGE COMPARTMENT DOOR) |
87907-36040 |
— | ||
|
87950
|
87950
87950-36030 Mirror Assy, Outer Under Rear View[10.2003 - 11.2004] BB5#,RZB5# W(LUGGAGE COMPARTMENT DOOR) |
87950-36030 |
from US $146.27 |
||
|
87950
|
87950
87950-36040
Mirror Assy, Outer Under Rear View
[11.2004 - 12.2006] BB5#,RZB5# W(LUGGAGE COMPARTMENT DOOR) |
87950-36040 |
— | ||
|
87951
|
87951
87951-36010
Gasket, Outer Under Rear View Mirror
[10.2003 - 11.2004] BB5#,RZB5# |
87951-36010 |
— | ||
| replacement | |||||
|
87951
|
87951
8795136011 Gasket, Outer Under Rr View[10.2003 - 11.2004] BB5#,RZB5# |
8795136011 |
US $4.19 |
||
|
87951
|
87951
87951-36020
Gasket, Outer Under Rear View Mirror
[11.2004 - 12.2006] BB5#,RZB5# |
87951-36020 |
— | ||
|
9015460029
|
9015460029
90154-60029 SCREW |
90154-60029 |
US $1.12 |
||
