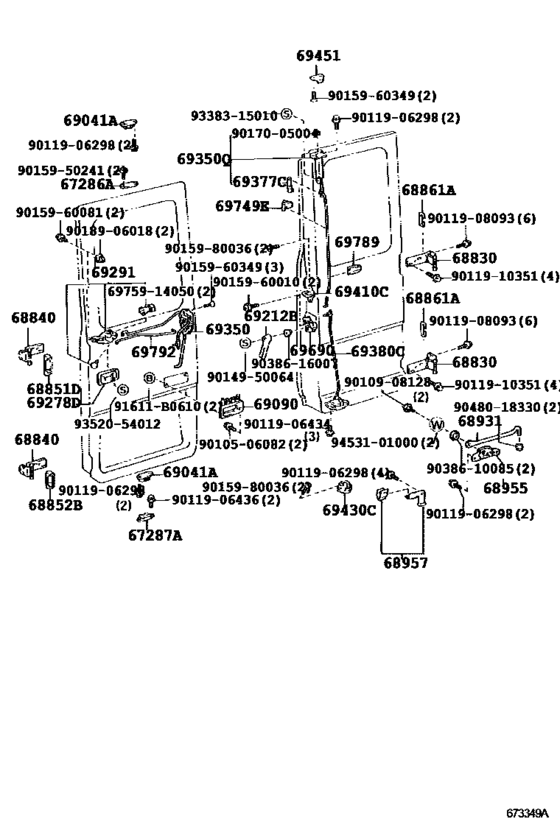

Back Door Lock & Hinge ([10.2003 - ] DOUBLE SWING BACK DOOR (0310- )TRB53,XZB53 ; (0310- )BB54,RZB54.. 23S,29S,30S) Diagram Toyota COASTER
- Year
- 2004 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 11.2004
- To
- 01.2007
- Seating Capacity
- 23S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67286A
|
67286A
67285-90B00 Anti-Rattle, Back Door, Upper[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
67285-90B00 |
US $6.70 |
||
|
67287A
|
67287A
67286-36010 Anti-Rattle, Back Door, Lower[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
67286-36010 |
US $4.51 |
||
|
68830
|
68830
68801-36010 Hinge Assy, Back Door, Rh[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR),UPPER |
68801-36010 |
US $72.51 |
||
|
68830
|
68830
68801-36020 Hinge Assy, Back Door, Rh[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU |
68801-36020 |
US $47.03 |
||
|
68830
|
68830
68803-36010 Hinge Assy, Back Door, Rh[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR),LOWER |
68803-36010 |
US $69.96 |
||
|
68840
|
68840
68801-36010 Hinge Assy, Back Door, Rh[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR),UPPER |
68801-36010 |
US $72.51 |
||
|
68840
|
68840
68801-36020 Hinge Assy, Back Door, Rh[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU |
68801-36020 |
US $47.03 |
||
|
68840
|
68840
68803-36010 Hinge Assy, Back Door, Rh[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR),LOWER |
68803-36010 |
US $69.96 |
||
|
68851D
|
68851D
68851-90K00 Cover, Back Door Hinge, Upper[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
68851-90K00 |
US $8.16 |
||
|
68852B
|
68852B
68852-36010 Cover, Back Door Hinge[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
68852-36010 |
US $7.20 |
||
|
68861A
|
68861A
68861-36010 Pad, Back Door Hinge[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
68861-36010 |
US $2.88 |
||
|
68931
|
68931
68931-36010 Stay, Back Door, No.1[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
68931-36010 |
US $14.41 |
||
|
68955
|
68955
68955-90B00 Bracket, Back Door Stay[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
68955-90B00 |
US $5.53 |
||
|
68957
|
68957
68957-36010 Bracket, Back Door Stay[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
68957-36010 |
US $3.68 |
||
|
69041A
|
69041A
69041-36010 Stopper Sub-Assy, Back Door, Upper[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69041-36010 |
US $9.32 |
||
|
69090
|
69090
69090-36010 Handle Assy, Back Door, Outside[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69090-36010 |
US $102.21 |
||
|
69212B
|
69212B
69212-60030-C0 Handle, Back Door Inside[11.2004 - 01.2013] TRB53..IV5;BB54,RZB54..23S BLACK |
69212-60030-C0 |
from US $12.25 |
||
|
69278D
|
69278D
69278-60010-A1 Bezel, Front Door Inside Handle, Lh[10.2003 - 01.2013] TRB53..IV5;BB54,RZB54..23S,29S,30S IVORY,TRIM4# |
69278-60010-A1 |
US $6.54 |
||
|
69291
|
69291
69206-60040-A1 Handle Sub-Assy, Front Door Inside, Lh[10.2003 - 01.2013] TRB53..IV5;BB54,RZB54..23S,29S,30S IVORY,TRIM4# |
69206-60040-A1 |
US $23.95 |
||
|
69350
|
69350
69350-36010 Lock Assy, Back Door[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR) |
69350-36010 |
US $99.59 |
||
|
69350
|
69350
69350-36030 Lock Assy, Back Door[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU |
69350-36030 |
from US $47.58 |
||
|
69350Q
|
69350Q
69880-36020 Lock Assy, Back Door, Upper[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69880-36020 |
US $84.91 |
||
|
69377C
|
69377C
69377-90A00 Snap, Back Door Upper Lock Rod[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69377-90A00 |
US $2.33 |
||
|
69380C
|
69380C
69380-36010 Lock Assy, Back Door, Lower[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69380-36010 |
US $61.41 |
||
|
69410C
|
69410C
69410-90B01 Plate Assy, Front Door Lock Striker[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69410-90B01 |
US $10.56 |
||
|
69430C
|
69430C
69430-90B02 Striker Assy, Back Door Lock[10.2003 -] BB5#,RZB5#,TRB53,XZB53..CBU |
69430-90B02 |
from US $25.08 |
||
|
69430C
|
69430C
69430-95702 Striker Assy, Back Door Lock[10.2003 - 08.2011] TRB53,XZB53;BB54,RZB54..23S,29S,30S W(DOUBLE SWING BACK DOOR) |
69430-95702 |
US $19.39 |
||
|
69451
|
69451
69451-90B01 Striker Assy, Back Door, Upper[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69451-90B01 |
US $14.12 |
||
|
69690
|
69690
69690-36010 Control Assy, Back Door Remote[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69690-36010 |
US $26.75 |
||
|
69749E
|
69749E
69749-12010 Clamp(For Hood Lock Control Cable)[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69749-12010 |
from US $2.24 |
||
|
69789
|
69789
69789-36010 Silencer, Back Door Lock Control Link[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69789-36010 |
US $3.19 |
||
|
69792
|
69792
69792-36010 Link, Back Door Lock Locking[10.2003 -] TRB53..IV5;BB54,RZB54..23S,29S,30S |
69792-36010 |
US $6.12 |
||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
6975914050
|
6975914050
69759-14050 Snap(For Rear Door Inside Handle) |
69759-14050 |
from US $2.24 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9010908128
|
9010908128
90109-08128 BOLT |
90109-08128 |
US $1.31 |
||
|
9011906298
|
9011906298
90119-06298 BOLT, W/WASHER |
90119-06298 |
US $0.52 |
||
|
9011906434
|
9011906434
90119-06434 New Genuine Part |
90119-06434 |
US $1.60 |
||
|
9011906436
|
9011906436
90119-06436 New Genuine Part |
90119-06436 |
US $1.92 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9011910351
|
9011910351
90119-10351 BOLT |
90119-10351 |
US $5.76 |
||
|
9014950064
|
9014950064
90149-50064 SCREW |
90149-50064 |
from US $0.76 |
||
|
9015950241
|
9015950241
90159-50241 New Genuine Part |
90159-50241 |
US $1.02 |
||
|
9015960010
|
9015960010
90159-60010 SCREW |
90159-60010 |
US $1.12 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960349
|
9015960349
90159-60349 SCREW WWASHER |
90159-60349 |
US $1.12 |
||
|
9015980036
|
9015980036
90159-80036 SCREWWWASHER |
90159-80036 |
US $1.24 |
||
|
9017005004
|
9017005004
90170-05004 New Genuine Part |
90170-05004 |
US $0.87 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9038610085
|
9038610085
90386-10085 Grommet (For Accelerator Link Rod) |
90386-10085 |
US $1.75 |
||
|
9038616007
|
9038616007
90386-16007 BUSH |
90386-16007 |
from US $1.76 |
||
|
9048018330
|
9048018330
90480-18330 Grommet, No.3(For Front Brake Tube) |
90480-18330 |
US $3.20 |
||
|
9338315010
|
9338315010
93383-15010 New Genuine Part |
93383-15010 |
US $0.96 |
||
|
9352054012
|
9352054012
93520-54012 Screw |
93520-54012 |
from US $1.02 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
