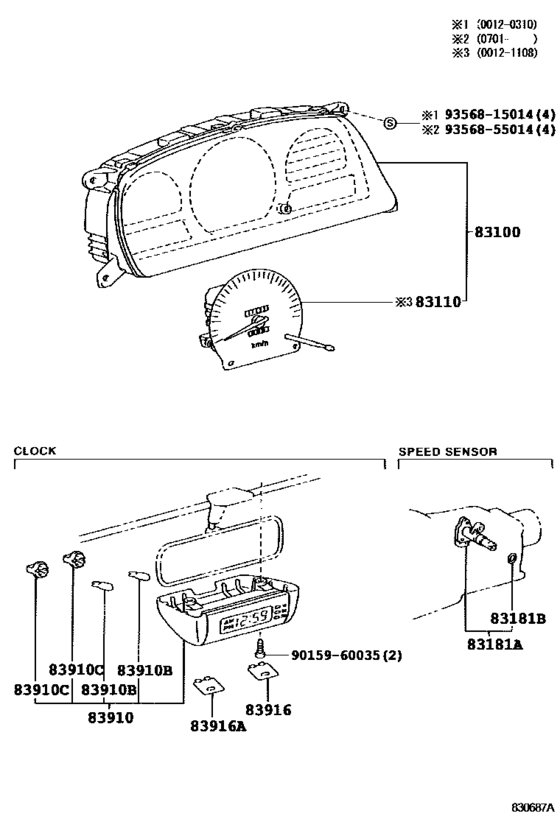

Meter ([12.2000 - 10.2003] (0012-0310) ; (0701-1108)) Diagram Toyota COASTER
- Year
- 2000 - 2003
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BF
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 12.2000
- To
- 10.2003
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-36550
Meter Assy, Combination
[12.2000 - 10.2003] BB5# |
83800-36550 |
— | ||
|
83110
|
83110
83220-36090 Speedometer Assy[12.2000 - 10.2003] BB5#,RZB5# |
83220-36090 |
from US $326.16 |
||
|
83181A
|
83181A
83181-36010 Sensor, Speedometer[12.2000 - 10.2003] BB5#,RZB5# |
83181-36010 |
from US $151.20 |
||
|
83181B
|
83181B
90301-18004 Ring, O (For Atm Speedometer Driven Hole Cover)[12.2000 - 10.2003] BB5#,RZB5# |
90301-18004 |
from US $2.26 |
||
|
83910
|
83910
83910-36040-A0 Clock Assy[12.2000 - 10.2003] BB5# IVORY,TRIM4# |
83910-36040-A0 |
US $425.15 |
||
|
83910B
|
83910B
84999-50290 Bulb, Clock Indicator[12.2000 - 10.2003] BB5# 24V 3W |
84999-50290 |
US $5.44 |
||
|
83910C
|
83910C
90072-01005 Socket Sub-Assy, Clock Bulb[12.2000 - 10.2003] BB5# |
90072-01005 |
from US $3.80 |
||
|
83916
|
83916
83916-36010-A0 Clip, Clock, No.1[12.2000 - 10.2003] BB5#,RZB5# IVORY,TRIM4# |
83916-36010-A0 |
US $1.92 |
||
|
83916A
|
83916A
83916-36020-A0 Clip, Clock, No.2[12.2000 - 10.2003] BB5#,RZB5# IVORY,TRIM4# |
83916-36020-A0 |
US $1.92 |
||
|
9015960035
|
9015960035
90159-60035 SCREW |
90159-60035 |
US $0.61 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
