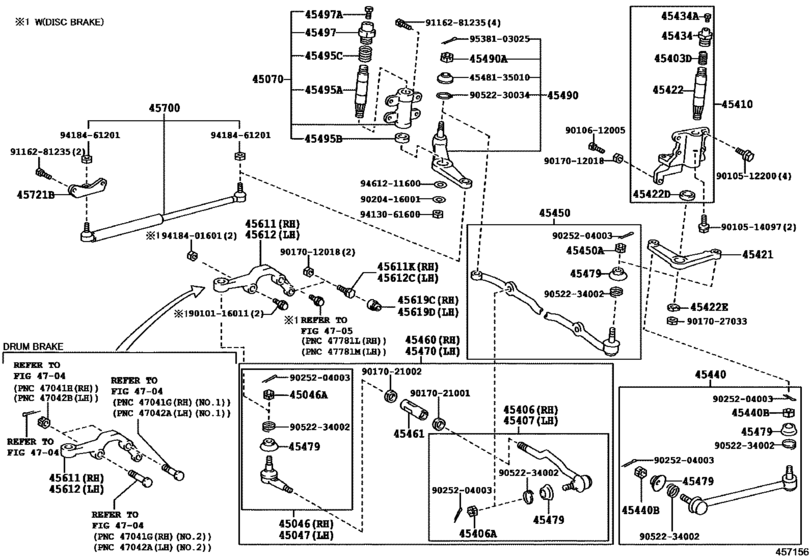

Front Steering Gear & Link ([01.2017 - ] STEERING LINK (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-39275 End Sub-Assy, Tie Rod[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45046-39275 |
from US $37.39 |
||
|
45046A
|
45046A
90171-18003 Nut, Castle(For Relay Rod)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90171-18003 |
from US $1.15 |
||
|
45047
|
45047
45046-39275 End Sub-Assy, Tie Rod[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45046-39275 |
from US $37.39 |
||
|
45070
|
45070
45070-36030 Bracket Assy, Idler Arm[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45070-36030 |
from US $105.08 |
||
|
45403D
|
45403D
90501-32033 Spring, Compression(For Bracket, Idler Arm)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90501-32033 |
US $4.51 |
||
|
45406
|
45406
45047-39165 Rod Sub-Assy, Tie, Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45047-39165 |
from US $51.68 |
||
|
45406A
|
45406A
90171-18003 Nut, Castle(For Relay Rod)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90171-18003 |
from US $1.15 |
||
|
45407
|
45407
45047-39165 Rod Sub-Assy, Tie, Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45047-39165 |
from US $51.68 |
||
|
45410
|
45410
45410-36041
Bracket Assy, Center Arm
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
45410-36041 |
— | ||
| replacement | |||||
|
45410
|
45410
45410-36042 BRACKET ASSY CTR[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
45410-36042 |
US $185.85 |
||
|
45421
|
45421
45421-36030 Arm, Steering CenterSTEERING CENTER [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
45421-36030 |
from US $78.03 |
||
|
45422
|
45422
45422-36010 Shaft, Center Arm[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45422-36010 |
from US $70.59 |
||
|
45422D
|
45422D
90311-36003 Seal(For Center Arm Shaft)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90311-36003 |
from US $4.48 |
||
|
45422E
|
45422E
90204-27020 Washer(For Pitman Arm)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90204-27020 |
US $1.76 |
||
|
45434
|
45434
45434-36011 Cap, Center Arm Bracket[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45434-36011 |
US $52.07 |
||
|
45434A
|
45434A
90345-06014 Plug (For Ball Joint)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90345-06014 |
from US $1.76 |
||
|
45440
|
45440
45440-39115 Link Assy, Steering DragSTEERING DRAG [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
45440-39115 |
from US $156.72 |
||
|
45440B
|
45440B
90171-18003 Nut, Castle(For Relay Rod)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90171-18003 |
from US $1.15 |
||
|
45450
|
45450
45450-39225 Rod Assy, Steering RelaySTEERING RELAY [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
45450-39225 |
from US $112.48 |
||
|
45450A
|
45450A
90171-18003 Nut, Castle(For Relay Rod)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90171-18003 |
from US $1.15 |
||
|
45460
|
45460
45460-80007 Rod Assy, Tie, Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45460-80007 |
US $87.32 |
||
|
45461
|
45461
45461-36120
Rod, Steering Tie
[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45461-36120 |
— | ||
|
45470
|
45470
45470-39355 Rod Assy, Tie, Lh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45470-39355 |
US $87.32 |
||
|
45479
|
45479
45479-36030 Seal, Dust(For Tie Rod)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45479-36030 |
from US $5.76 |
||
|
45490
|
45490
45490-39435 Arm Assy, Steering IdlerSTEERING IDLER [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
45490-39435 |
from US $189.28 |
||
|
45490A
|
45490A
90171-14006 Nut, Castle(For Idler Arm)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90171-14006 |
US $0.76 |
||
|
45495A
|
45495A
45495-36010 Shaft, Idler Arm[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45495-36010 |
US $92.60 |
||
|
45495B
|
45495B
90311-25009 Seal, Type T Oil(For Bracket, Idler Arm)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90311-25009 |
from US $2.27 |
||
|
45495C
|
45495C
90501-32033 Spring, Compression(For Bracket, Idler Arm)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90501-32033 |
US $4.51 |
||
|
45497
|
45497
45497-36020 Cap, Idler Arm Bracket[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45497-36020 |
US $14.27 |
||
|
45497A
|
45497A
90345-06014 Plug (For Ball Joint)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90345-06014 |
from US $1.76 |
||
|
45611
|
45611
45611-36242 Arm, Steering Knuckle, Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45611-36242 |
from US $58.01 |
||
|
45611K
|
45611K
90106-12015 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90106-12015 |
from US $1.13 |
||
|
45612
|
45612
45612-36152 Arm, Steering Knuckle, Lh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45612-36152 |
US $58.01 |
||
|
45612C
|
45612C
90106-12015 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90106-12015 |
from US $1.13 |
||
|
45619C
|
45619C
45619-26020 Cover, Knuckle Stopper[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45619-26020 |
from US $2.24 |
||
|
45619D
|
45619D
45619-26020 Cover, Knuckle Stopper[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45619-26020 |
from US $2.24 |
||
|
45700
|
45700
45700-69135 Damper Assy, SteeringSTEERING [01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45700-69135 |
from US $106.56 |
||
|
45721B
|
45721B
45721-36020 Bracket, Steering Damper, No.3STEERING DAMPER, NO.3 [01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
45721-36020 |
US $16.60 |
||
|
9010116011
|
9010116011
90101-16011 BOLT HEXAGON |
90101-16011 |
US $4.95 |
||
|
9010512200
|
9010512200
90105-12200 Bolt(For Torque Arm Setting) |
90105-12200 |
US $2.24 |
||
|
9010514097
|
9010514097
90105-14097 Bolt (For Rear Axle Bearing Case Rh) |
90105-14097 |
US $3.52 |
||
|
9010612005
|
9010612005
90106-12005 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt) |
90106-12005 |
from US $1.13 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017021001
|
9017021001
90170-21001 New Genuine Part |
90170-21001 |
US $2.48 |
||
|
9017021002
|
9017021002
90170-21002 New Genuine Part |
90170-21002 |
US $2.48 |
||
|
9017027033
|
9017027033
90170-27033 Nut, Castle(For Pitman Arm) |
90170-27033 |
US $5.60 |
||
|
9020416001
|
9020416001
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9025204003
|
9025204003
90252-04003 PIN |
90252-04003 |
from US $0.16 |
||
|
9052230034
|
9052230034
90522-30034 Ring, Set(For Power Steering Rack End Dust Seal) |
90522-30034 |
US $3.04 |
||
|
9052234002
|
9052234002
90522-34002 Ring, Set(For Tie Rod End Dust Seal) |
90522-34002 |
US $1.60 |
||
|
9116281235
|
9116281235
91162-81235 Bolt(for Dust Cover Setting) |
91162-81235 |
US $2.08 |
||
|
9413061600
|
9413061600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9418401601
|
9418401601
94184-01601 NUT LOCK |
94184-01601 |
from US $1.54 |
||
|
9418461201
|
9418461201
94184-61201 Nut, Lock(For Power Steering Control Valve) |
94184-61201 |
US $1.76 |
||
|
9461211600
|
9461211600
94612-11600 Washer, Shift Lever Shaft Housing, No.2 |
94612-11600 |
from US $1.76 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.76 |
||
