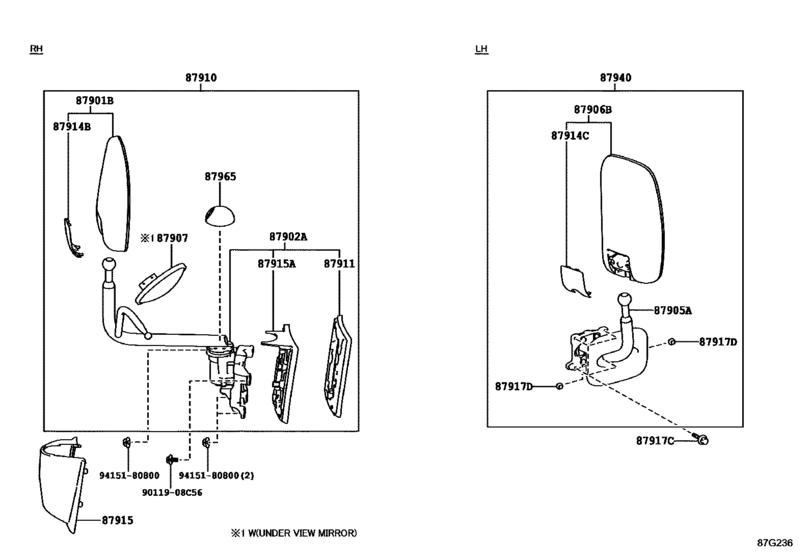

Mirror ([01.2017 - ] OUTER MIRROR (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87901B
|
87901B
87901-36140 Mirror Sub-Assy, Outer Rear View, Rh[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..(GEN,TAIW) |
87901-36140 |
US $64.45 |
||
|
87902A
|
87902A
87902-36130
Arm Sub-Assy, Outer Rear View Mirror, Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD..(GCC,GEN) |
87902-36130 |
— | ||
|
87905A
|
87905A
87905-36130
Arm Sub-Assy, Outer Rear View Mirror, Lh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
87905-36130 |
— | ||
|
87906B
|
87906B
87901-36140 Mirror Sub-Assy, Outer Rear View, Rh[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..(GEN,TAIW) |
87901-36140 |
US $64.45 |
||
|
87907
|
87907
87907-36030 Mirror Sub-Assy, Outer Under View[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN |
87907-36030 |
from US $23.41 |
||
|
87910
|
87910
87910-36170 Mirror Assy, Outer Rear View, Rh[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..GEN |
87910-36170 |
US $129.58 |
||
|
87911
|
87911
87911-36060
Gasket, Outer Rear View Mirror, Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
87911-36060 |
— | ||
|
87914B
|
87914B
87914-36010
Cover, Outer Mirror Knob, Rh
[01.2017 -] TRB70;BB60,HZB70,TRB60,XZB70..(02S,20S,22S,25S,26S,29S,30S)..(DX,STD) |
87914-36010 |
— | ||
|
87914C
|
87914C
87914-36010
Cover, Outer Mirror Knob, Rh
[01.2017 -] TRB70;BB60,HZB70,TRB60,XZB70..(02S,20S,22S,25S,26S,29S,30S)..(DX,STD) |
87914-36010 |
— | ||
|
87915
|
87915
87915-36010 Cover, Outer Mirror, Rh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
87915-36010 |
US $35.82 |
||
|
87915A
|
87915A
87914-36020 Cover, Outer Mirror, Rh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
87914-36020 |
US $11.47 |
||
|
87917C
|
87917C
87929-26020 Screw, Outer Mirror[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
87929-26020 |
US $1.92 |
||
|
87917D
|
87917D
62955-50010 Retainer, Quarter Vent Louver[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
62955-50010 |
from US $2.20 |
||
|
87940
|
87940
87940-36210
Mirror Assy, Outer Rear View, Lh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
87940-36210 |
— | ||
|
87965
|
87965
87965-37030 Grommet, Outer Mirror[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
87965-37030 |
US $12.48 |
||
|
9011908C56
|
9011908C56
90119-08C56 BOLT WWASHER |
90119-08C56 |
US $1.60 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
