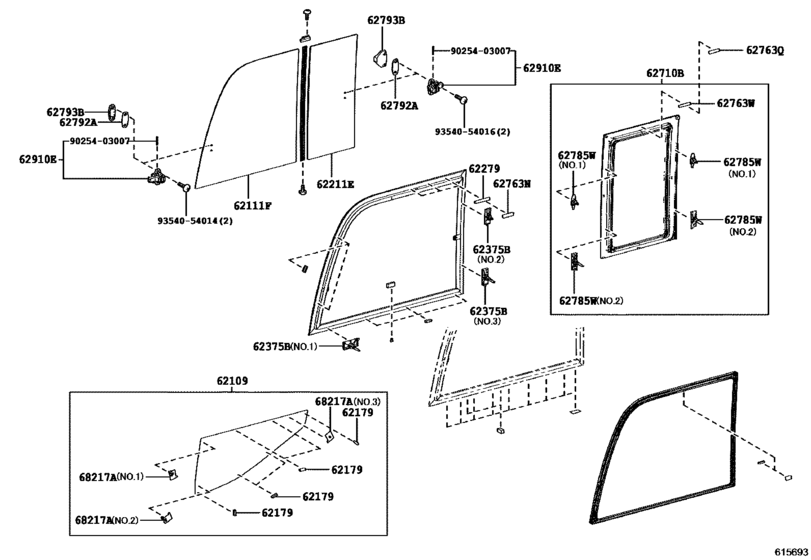

Side Window ([01.2017 - ] FRONT SIDE WINDOW (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62109
|
62109
62109-36110
Glass Sub-Assy, Side Lower Window, Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
62109-36110 |
— | ||
|
62111F
|
62111F
62111-36080 Glass, Front Side Window, Front Rh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
62111-36080 |
US $292.91 |
||
|
62179
|
62179
68294-26030 Dam, Side Lower WindowBACK DOOR GLASS ADHESIVE [01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
68294-26030 |
from US $2.30 |
||
|
62211E
|
62211E
62211-36140
Glass, Side Window, Rear Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
62211-36140 |
— | ||
|
62279
|
62279
62763-36020 Spacer, Side Window Frame, Upper[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
62763-36020 |
US $2.72 |
||
|
62375B
|
62375B
62375-36050 Clip, Side Window, No.1[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW NO.3:REFER ILLUST. |
62375-36050 |
US $4.96 |
||
|
62375B
|
62375B
62375-36060 Clip, Side Window, No.1[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW NO.2:REFER ILLUST. |
62375-36060 |
US $4.16 |
||
|
62375B
|
62375B
62375-36070 Clip, Side Window, No.1[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW NO.1:REFER ILLUST. |
62375-36070 |
US $4.96 |
||
|
62710B
|
62710B
62203-36020
Window Assy, Side, Front Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
62203-36020 |
— | ||
|
62763N
|
62763N
62763-36010 Retainer, Side Window Frame[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
62763-36010 |
US $1.76 |
||
|
62763Q
|
62763Q
62763-36010 Retainer, Side Window Frame[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
62763-36010 |
US $1.76 |
||
|
62763W
|
62763W
62763-36030 Retainer, Quarter Window Glass, Upper[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
62763-36030 |
US $1.28 |
||
|
62785W
|
62785W
62785-36020 Spacer, Quarter Window Glass[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW NO.2(YELLOW) |
62785-36020 |
US $4 |
||
|
62785W
|
62785W
62785-36030 Spacer, Quarter Window Glass[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW NO.2(BLUE) |
62785-36030 |
US $3.68 |
||
|
62785W
|
62785W
62785-36040 Spacer, Quarter Window Glass[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW NO.1(WHITE) |
62785-36040 |
US $3.36 |
||
|
62792A
|
62792A
62792-95A00 Packing, Side Rear Window, Rh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
62792-95A00 |
from US $1.60 |
||
|
62793B
|
62793B
62793-36010 Retainer, Side Window Lock, Lh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD REAR |
62793-36010 |
US $10.08 |
||
|
62793B
|
62793B
62793-95J00 Retainer, Side Window Lock, No.1[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD FRONT |
62793-95J00 |
from US $3.72 |
||
|
62910E
|
62910E
62910-36010 Lock Assy, Side Window[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
62910-36010 |
from US $7.14 |
||
|
68217A
|
68217A
68217-36080 Pin, Side Window , No.1[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW NO.2:REFER ILLUST. |
68217-36080 |
US $3.04 |
||
|
68217A
|
68217A
68217-36090 Pin, Side Window , No.1[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW NO.3:REFER ILLUST. |
68217-36090 |
US $3.04 |
||
|
68217A
|
68217A
68217-36100 Pin, Side Window , No.1[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW NO.1:REFER ILLUST. |
68217-36100 |
US $3.04 |
||
|
9025403007
|
9025403007
90254-03007 New Genuine Part |
90254-03007 |
US $0.79 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.99 |
||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
