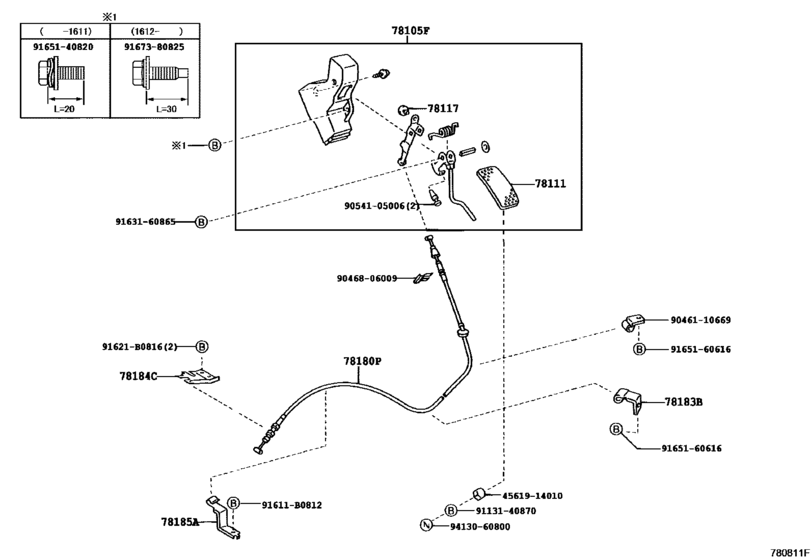

Accelerator Link ([09.2003 - ] (0309- )BZB40,50) Diagram Toyota COASTER
- Year
- 2001 - 2016
- Sales region
- General
- Frame
- BZB40
- grade
- STD
- Roof
- HRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2001
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- LPG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78105F
|
78105F
78105-36040 Link Sub-Assy, Accelerator[09.2003 - 08.2004] BB42,BZB40,50,HZB50..RHD *EX-USSR SPEC & COLD AREA SPEC OR CHINA SPEC |
78105-36040 |
US $58.24 |
||
| replacement | |||||
|
78105F
|
78105F
78105-36041 Link Sub-Assy, Accelerator[09.2003 - 08.2004] BB42,BZB40,50,HZB50..RHD *EX-USSR SPEC & COLD AREA SPEC OR CHINA SPEC |
78105-36041 |
US $58.24 |
||
|
78105F
|
78105F
78105-36041 Link Sub-Assy, Accelerator[01.2015 - 12.2016] BB42,BZB40,50,HZB50..RHD |
78105-36041 |
US $58.24 |
||
|
78111
|
78111
78111-95110 Pedal, Accelerator[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF.. WC;BB50,RZB40..WOC..(ARL,GEN)..CBU;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN); BB42,50,HZB50..HRF..(21S,26S,30S)..WC..(DSL,TDEFI);BB5#,BZB40,50,RZB5 |
78111-95110 |
from US $7.52 |
||
|
78117
|
78117
90541-06036 Cushion, No.1(For Clutch Pedal)[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF.. WC;BB50,RZB40..WOC..(ARL,GEN)..CBU;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN); BB42,50,HZB50..HRF..(21S,26S,30S)..WC..(DSL,TDEFI);BB5#,BZB40,50,RZB5 |
90541-06036 |
from US $0.94 |
||
| replacement | |||||
|
78117
|
78117
90541060361
CUSHION
[07.1999 - 08.2004] BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF.. WC;BB50,RZB40..WOC..(ARL,GEN)..CBU;HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN); BB42,50,HZB50..HRF..(21S,26S,30S)..WC..(DSL,TDEFI);BB5#,BZB40,50,RZB5 |
90541060361 |
— | ||
|
78180P
|
78180P
78180-36270 Cable Assy, Accelerator Control[08.2001 - 08.2004] BZB40,50 |
78180-36270 |
US $53.29 |
||
|
78183B
|
78183B
78183-36010 Clamp, Accelerator Control Cable[07.1999 - 10.2003] BZB40,50,HZB50..RHD..HRF..(17S,21S,30S)..WC |
78183-36010 |
US $2.91 |
||
|
78183B
|
78183B
78183-36060 Clamp, Accelerator Control Cable[10.2003 - 08.2004] BZB40,50,HZB50..RHD |
78183-36060 |
US $2.91 |
||
|
78184C
|
78184C
78184-37050 Bracket, Accelerator Control Cable[08.2001 - 08.2004] BZB40,50 |
78184-37050 |
US $5.24 |
||
|
78185A
|
78185A
78185-36090 Clamp, Accelerator Control Cable, No.2[08.2001 - 08.2004] BZB40,50 |
78185-36090 |
US $7.13 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
4561914010
|
4561914010
45619-14010 Cover, Knuckle Stopper |
45619-14010 |
US $8.64 |
||
|
9046110669
|
9046110669
90461-10669 New Genuine Part |
90461-10669 |
US $2.04 |
||
|
9046806009
|
9046806009
90468-06009 New Genuine Part |
90468-06009 |
US $4.37 |
||
|
9054105006
|
9054105006
90541-05006 Cushion (For Accelerator Rod) |
90541-05006 |
US $1.16 |
||
|
9113140870
|
9113140870
91131-40870 Bolt(For Clutch Master Cylinder Setting) |
91131-40870 |
US $0.87 |
||
|
9163160865
|
9163160865
91631-60865 BOLT WWASHER |
91631-60865 |
from US $0.94 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9167380825
|
9167380825
91673-80825 New Genuine Part |
91673-80825 |
US $1.60 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.70 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
