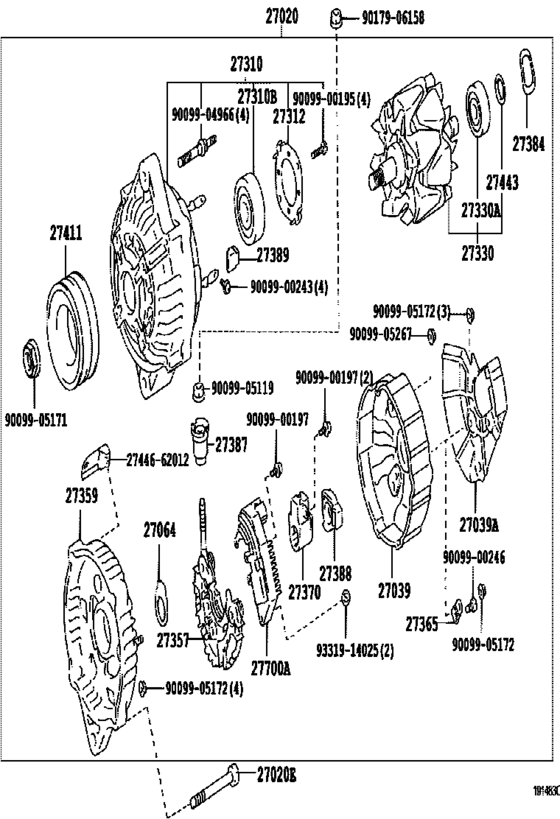

Alternator ([03.2002 - 12.2003] 12V 100A (0203-0312)1BZFPE) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-58320 Alternator Assy[03.2002 - 12.2003] 1BZFPE..BZB40,50 １２Ｖ １００Ａ |
27060-58320 |
US $1,805.44 |
||
|
27020
|
27020
27060-58420 Alternator Assy[12.2003 - 08.2004] 1BZFPE..BZB40,50 １２Ｖ １００Ａ |
27060-58420 |
US $1,140.05 |
||
|
27020E
|
27020E
90148-10001 Bolt(For Alternator)[07.1999 - 08.2004] 15BFTE,1BZFPE..BB58,BZB40,50 |
90148-10001 |
US $0.79 |
||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27039-17230 |
— | ||
|
27039A
|
27039A
27039-58330
Cover, Alternator Rear End
[03.2002 - 12.2003] 1BZFPE..BZB40,50 |
27039-58330 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[07.1999 - 12.2003] 1BZFPE..BZB40,50 |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-58350 Frame Assy, Drive End, Alternator[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27310-58350 |
US $384.35 |
||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27312-42010 |
— | ||
|
27330
|
27330
27330-20070
Rotor Assy, Alternator
[12.2003 - 08.2004] 1BZFPE..BZB40,50 12V 100A |
27330-20070 |
— | ||
|
27330
|
27330
27330-28050
Rotor Assy, Alternator
[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27330-28050 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-17080 Holder, Alternator, W/rectifier[07.1999 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27357-17080 |
US $67.08 |
||
|
27357
|
27357
27357-20060 Holder, Alternator, W/rectifier[12.2003 - 08.2004] 1BZFPE..BZB40,50 12V 100A |
27357-20060 |
from US $71.45 |
||
|
27359
|
27359
27359-58050
Frame, Alternator Rectifier End
[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27359-58050 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[07.1999 - 12.2003] 1BZFPE..BZB40,50 |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[07.1999 - 08.2004] 1BZFPE..BZB40,50 12V 100A; 15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[07.1999 - 12.2003] 1BZFPE..BZB40,50 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42021 Insulator, Terminal[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27387-42021 |
US $2.42 |
||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27388-42010 |
US $10.66 |
||
|
27389
|
27389
27389-42010
Insulator, Terminal
[07.1999 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27389-42010 |
— | ||
|
27411
|
27411
27411-58290
Pulley, Alternator
[03.2002 - 12.2003] 1BZFPE..BZB40,50 12V 100A |
27411-58290 |
— | ||
|
27411
|
27411
27411-58440
Pulley, Alternator
[12.2003 - 08.2004] 1BZFPE..BZB40,50 12V 100A |
27411-58440 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[07.1999 - 12.2003] 1BZFPE..BZB40,50 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-75010 Regulator Assy, Generator[03.2002 - 08.2004] 1BZFPE..BZB40,50 12V 100A |
27700-75010 |
US $164.53 |
||
|
2744662012
|
2744662012
27446-62012
Clip, Alternator Cord
|
27446-62012 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905267
|
9009905267
90099-05267
New Genuine Part
|
90099-05267 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
