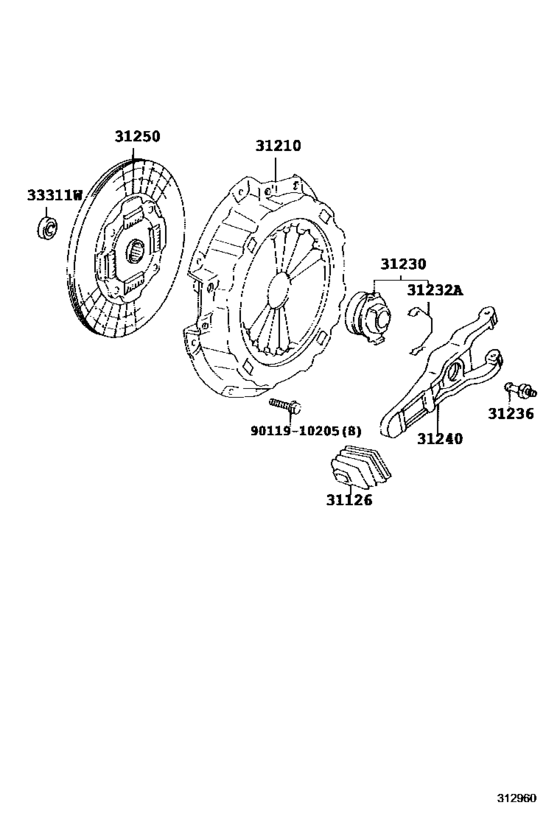

Clutch & Release Fork ([03.2002 - ] (0203- )BZB40,50) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-36070 Boot, Clutch Release Fork[07.1999 - 08.2004] BZB40,50,HZB4#,5#..5F |
31126-36070 |
from US $10.08 |
||
|
31210
|
31210
31210-36310 Cover Assy, Clutch[01.2006 - 08.2011] BZB40,50..STD |
31210-36310 |
from US $174.72 |
||
|
31210
|
31210
31210-37030
Cover Assy, Clutch
[03.2002 - 08.2004] BZB40,50 |
31210-37030 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36310 Cover Assy, Clutch[03.2002 - 08.2004] BZB40,50 |
31210-36310 |
from US $174.72 |
||
|
31230
|
31230
31230-37010 Bearing Assy, Clutch Release[03.2002 - 08.2004] BZB40,50 |
31230-37010 |
from US $63.54 |
||
|
31232A
|
31232A
31232-37010 Clip, Release Bearing Hub[03.2002 - 08.2004] BZB40,50 |
31232-37010 |
US $1.02 |
||
|
31236
|
31236
31236-36060 Ball, Release Fork[07.1999 - 08.2004] BZB40,50,HDB5#,HZB4#,5#..MTM |
31236-36060 |
from US $7.68 |
||
|
31240
|
31240
31204-36142 Fork Sub-Assy, Clutch Release[07.1999 - 08.2004] BZB40,50,HDB5#,HZB4#,5#..MTM |
31204-36142 |
from US $51.68 |
||
|
31250
|
31250
31250-36521 Disc Assy, Clutch[03.2002 - 08.2004] BZB40,50 |
31250-36521 |
US $324.69 |
||
| replacement | |||||
|
31250
|
31250
31250-36571 Disc Assy, Clutch[03.2002 - 08.2004] BZB40,50 |
31250-36571 |
US $177.34 |
||
|
31250
|
31250
31250-36570 Disc Assy, Clutch[08.2005 - 08.2011] BZB40,50..STD |
31250-36570 |
US $294.11 |
||
| replacement | |||||
|
31250
|
31250
31250-36571 Disc Assy, Clutch[08.2005 - 08.2011] BZB40,50..STD |
31250-36571 |
US $177.34 |
||
|
33311W
|
33311W
90363-12018 Bearing (For Input Shaft)[03.2002 - 08.2004] BZB40,50 ＮＳＫ |
90363-12018 |
from US $6.16 |
||
|
33311W
|
33311W
90363-12020 Bearing (For Input Shaft)[03.2002 - 08.2004] BZB40,50 ＮＡＣＨＩ |
90363-12020 |
from US $5.69 |
||
|
9011910205
|
9011910205
90119-10205 Bolt |
90119-10205 |
from US $1.13 |
||
