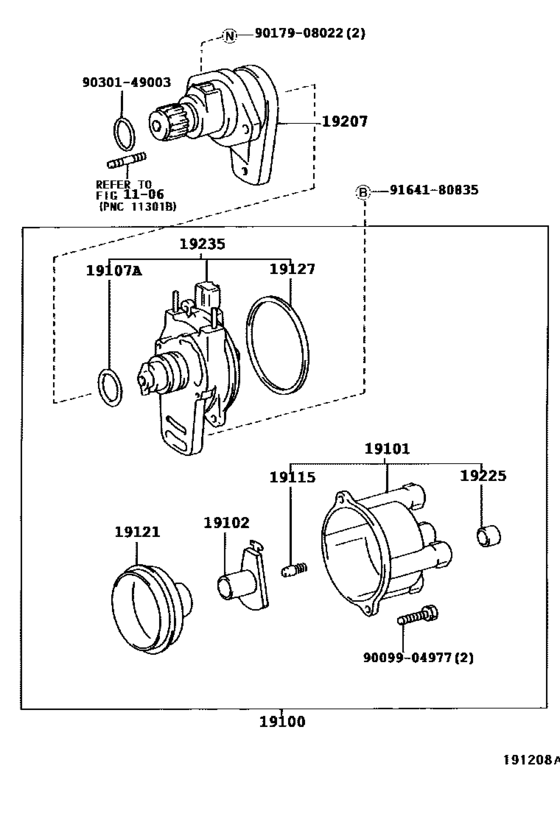

Distributor ([03.2002 - ] (0203- )1BZFPE) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-48010 Distributor Assy[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19100-48010 |
US $449.90 |
||
|
19101
|
19101
19101-74150 Cap Sub-Assy, Distributor[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19101-74150 |
from US $29.13 |
||
|
19102
|
19102
19102-11370 Rotor Sub-Assy, Distributor[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19102-11370 |
US $17.33 |
||
| replacement | |||||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19102-16010 |
from US $8.96 |
||
|
19107A
|
19107A
90099-14118 Ring, O, Distributor Housing[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
90099-14118 |
from US $1.58 |
||
|
19115
|
19115
19115-88280 Piece, Distributor Cap, Center[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19115-88280 |
US $1.67 |
||
|
19121
|
19121
19121-74030
Cover, Dust Proof
[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19121-74030 |
— | ||
|
19127
|
19127
19127-74040 Packing, Dust Proof[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19127-74040 |
from US $3.14 |
||
|
19207
|
19207
19207-48010 Housing Sub-Assy, Distributor, Rh[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19207-48010 |
from US $188.31 |
||
|
19225
|
19225
19225-62010
Cap, Rubber
[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19225-62010 |
— | ||
|
19235
|
19235
19235-48010 Housing, Distributor[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
19235-48010 |
US $183.46 |
||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.54 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.28 |
||
|
9164180835
|
9164180835
91641-80835 Bolt, Compressor, No.1 |
91641-80835 |
US $2.24 |
||
