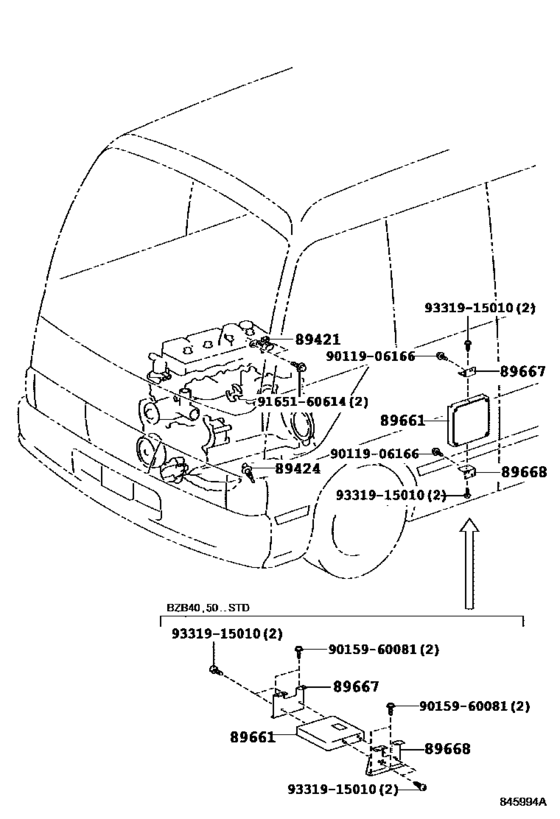

Electronic Fuel Injection System ([03.2002 - ] (0203- )BZB40,50) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89421
|
89421
89421-20190 Sensor Assy, Vacuum[03.2002 - 08.2004] BZB40,50 |
89421-20190 |
from US $115.44 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[03.2002 - 08.2004] BZB40,50 |
89424-12010 |
from US $57 |
||
|
89661
|
89661
89661-36110 Computer, Engine Control[10.2003 - 12.2003] BZB40,50 |
89661-36110 |
US $1,747.20 |
||
|
89661
|
89661
89661-36111 Computer, Engine Control[12.2003 - 08.2004] BZB40,50 |
89661-36111 |
from US $1,149.68 |
||
|
89661
|
89661
89661-36230
Computer, Engine Control
[08.2007 - 08.2011] BZB40,50..STD |
89661-36230 |
— | ||
|
89667
|
89667
89667-36030 Bracket, Engine Control Computer[10.2003 - 08.2004] BZB40,50..STD |
89667-36030 |
US $18.78 |
||
|
89668
|
89668
89668-36020 Bracket, Engine Control Computer, No.2[10.2003 - 08.2004] BZB40,50..STD |
89668-36020 |
US $25.92 |
||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $1.28 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
