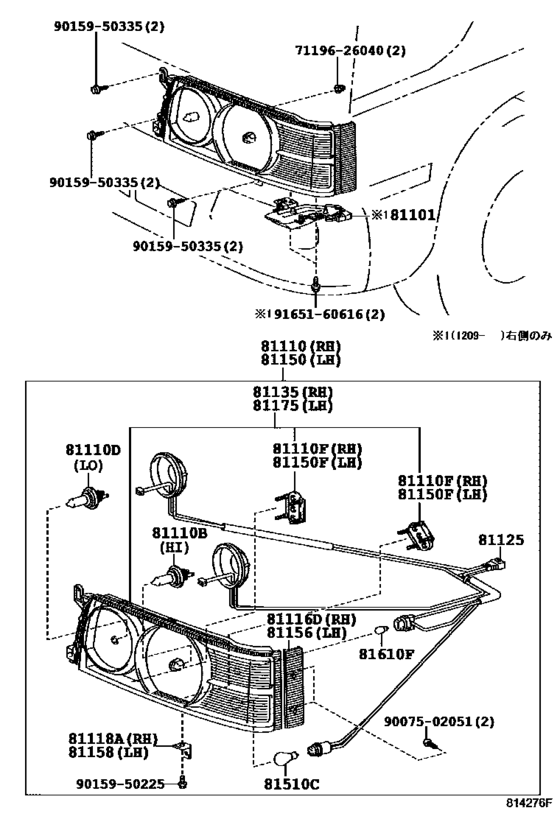

Headlamp ([08.2007 - ] (0708- )) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-36430 Headlamp Assy, Rh[03.2002 - 08.2004] BZB40,50 |
81110-36430 |
US $458.64 |
||
|
81110
|
81110
81110-36520 Headlamp Assy, Rh[12.2005 - 08.2007] BZB40,50 |
81110-36520 |
US $556.19 |
||
|
81110
|
81110
81110-36550 Headlamp Assy, Rh[08.2007 - 08.2011] BZB40,50..STD |
81110-36550 |
US $464.46 |
||
|
81110B
|
81110B
90981-13063 Bulb(For Headlamp, No.2)[08.2007 - 01.2015] BZB40,50 １２Ｖ ５５Ｗ，ハロゲン |
90981-13063 |
from US $16.38 |
||
|
81110D
|
81110D
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [03.2002 - 08.2004] BZB40,50 １２Ｖ ６０／５５Ｗ，ハロゲン |
90981-13058 |
from US $30.40 |
||
| replacement | |||||
|
81110D
|
81110D
90084-98033 Bulb(For Headlamp, No.1)NO.1) [03.2002 - 08.2004] BZB40,50 １２Ｖ ６０／５５Ｗ，ハロゲン |
90084-98033 |
US $52.88 |
||
|
81110D
|
81110D
90981-13063 Bulb(For Headlamp, No.2)[08.2007 - 08.2011] BZB40,50..STD １２Ｖ ５５Ｗ，ハロゲン |
90981-13063 |
from US $16.38 |
||
|
81110F
|
81110F
90075-50019 Gear Unit Assy, Rh No.1[07.1999 - 08.2004] BB58,BZB40,50,HDB5#,HZB4#,5# |
90075-50019 |
US $16 |
||
|
81110F
|
81110F
90075-50023 Gear Unit Assy, Rh No.1[08.2007 - 08.2011] BZB40,50,XZB51..STD,SULNG |
90075-50023 |
US $15.68 |
||
|
81116D
|
81116D
81116-36530 Rim, Head Lamp, Rh[08.2007 - 08.2011] BZB40,50,XZB51..STD,SULNG |
81116-36530 |
US $16.07 |
||
|
81118A
|
81118A
81118-36530 Bracket, Headlamp, Rh[08.2007 - 08.2011] BZB40,50,XZB51..STD,SULNG |
81118-36530 |
from US $10.34 |
||
|
81125
|
81125
81125-36510 Cord, Headlamp[12.2005 - 08.2007] BZB40,50,XZB4#,50,56 |
81125-36510 |
US $30.87 |
||
|
81125
|
81125
81125-36530 Cord, Headlamp[08.2007 - 08.2011] BZB40,50,XZB51..STD,SULNG |
81125-36530 |
US $56.09 |
||
|
81135
|
81135
81130-36370 Unit Assy, Headlamp, Rh[08.2001 - 08.2004] BZB40,50,HDB5#,HZB4#,5# |
81130-36370 |
US $379.40 |
||
|
81135
|
81135
81130-36510 Unit Assy, Headlamp, Rh[12.2005 - 08.2007] BZB40,50,XZB4#,50,56 |
81130-36510 |
US $458.64 |
||
|
81135
|
81135
81130-36550 Unit Assy, Headlamp, Rh[08.2007 - 08.2011] BZB40,50..STD |
81130-36550 |
US $492.80 |
||
|
81150
|
81150
81150-36410 Headlamp Assy, Lh[03.2002 - 08.2004] BZB40,50 |
81150-36410 |
US $458.64 |
||
|
81150
|
81150
81150-36500 Headlamp Assy, Lh[12.2005 - 08.2007] BZB40,50 |
81150-36500 |
US $556.19 |
||
|
81150
|
81150
81150-36530 Headlamp Assy, Lh[08.2007 - 08.2011] BZB40,50..STD |
81150-36530 |
US $464.46 |
||
|
81150F
|
81150F
90075-50020 Gear Unit Assy, Rh No.2[07.1999 - 08.2004] BB58,BZB40,50,HDB5#,HZB4#,5# |
90075-50020 |
US $16 |
||
|
81150F
|
81150F
90075-50023 Gear Unit Assy, Rh No.1[08.2007 - 08.2011] BZB40,50,XZB51..STD,SULNG |
90075-50023 |
US $15.68 |
||
|
81156
|
81156
81156-36360 Rim, Headlamp, Lh[08.2001 - 08.2004] BZB40,50,HDB5#,HZB4#,5# |
81156-36360 |
US $14.71 |
||
|
81156
|
81156
81156-36510 Rim, Headlamp, Lh[08.2007 - 08.2011] BZB40,50,XZB51..STD,SULNG |
81156-36510 |
from US $17 |
||
|
81158
|
81158
81158-36510 Bracket, Headlamp, Lh[08.2007 - 08.2011] BZB40,50,XZB51..STD,SULNG |
81158-36510 |
US $10.34 |
||
|
81175
|
81175
81170-36350 Unit Assy, Headlamp, Lh[08.2001 - 08.2004] BZB40,50,HDB5#,HZB4#,5# |
81170-36350 |
US $379.40 |
||
|
81175
|
81175
81170-36490 Unit Assy, Headlamp, Lh[12.2005 - 08.2007] BZB40,50,XZB4#,50,56 |
81170-36490 |
US $458.64 |
||
|
81175
|
81175
81170-36530 Unit Assy, Headlamp, Lh[08.2007 - 08.2011] BZB40,50..STD |
81170-36530 |
US $492.80 |
||
|
81510C
|
81510C
90981-15009 Bulb(For Headlamp, No.2)[08.2007 - 08.2011] BZB40,50..STD １２Ｖ ２１Ｗ，アンバー |
90981-15009 |
from US $5.05 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2007 - 08.2011] BZB40,50..STD １２Ｖ ５Ｗ |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2007 - 08.2011] BZB40,50..STD １２Ｖ ５Ｗ |
90080-81053 |
US $2.75 |
||
|
7119626040
|
7119626040
71196-26040 Clip(for Rear Spoiler) |
71196-26040 |
US $1.60 |
||
|
9007502051
|
9007502051
90075-02051 Screw, Headlamp |
90075-02051 |
US $0.96 |
||
|
9015950225
|
9015950225
90159-50225 New Genuine Part |
90159-50225 |
US $0.79 |
||
|
9015950335
|
9015950335
90159-50335 New Genuine Part |
90159-50335 |
US $1.12 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
