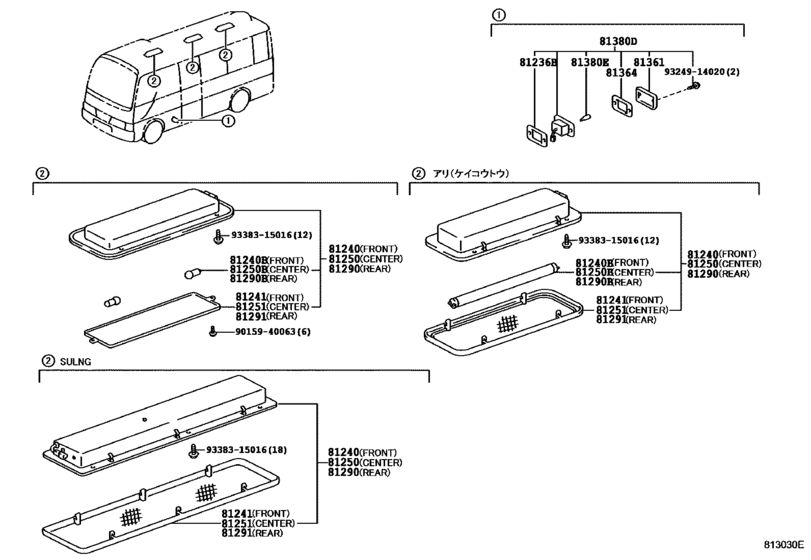

Interior Lamp ([08.2004 - 08.2007] (0408-0708)) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81236B
|
81236B
81236-14016 Rim,step Lamp[07.1999 - 08.2004] BB58,BZB40,50,HDB5#,HZB4#,5# |
81236-14016 |
US $3.79 |
||
|
81240
|
81240
81240-36040-B0 Lamp Assy, Room, No.1[03.2002 - 08.2004] BZB40,50 MD.CHARCOAL,TRIM1# |
81240-36040-B0 |
US $279.55 |
||
|
81240
|
81240
81240-36042 Lamp Assy, Room, No.1[08.2007 - 08.2011] BZB40,50..STD |
81240-36042 |
US $192.19 |
||
|
81240B
|
81240B
99132-11100 Bulb, Room Lamp, No.1[03.2002 - 08.2004] BZB40,50 １２Ｖ １０Ｗ |
99132-11100 |
US $2.40 |
||
|
81241
|
81241
81027-36010 Lens, Room Lamp, No.1[08.2007 - 08.2011] BZB40,50..STD |
81027-36010 |
US $46.96 |
||
|
81241
|
81241
81241-90B00 Lens, Room Lamp, No.1[07.1999 - 08.2004] HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU ,IV5); HZB40..4FC..IV5 ｱﾘ(ﾊｸﾈﾂﾄｳ) & ﾃﾂｸｽ ﾌﾚｱｲ10ﾆﾝｼﾖｳ |
81241-90B00 |
US $76.96 |
||
|
81250
|
81250
81240-36040-B0 Lamp Assy, Room, No.1[03.2002 - 08.2004] BZB40,50 MD.CHARCOAL,TRIM1# |
81240-36040-B0 |
US $279.55 |
||
|
81250
|
81250
81240-36042 Lamp Assy, Room, No.1[08.2007 - 08.2011] BZB40,50..STD |
81240-36042 |
US $192.19 |
||
|
81250B
|
81250B
99132-11100 Bulb, Room Lamp, No.1[03.2002 - 08.2004] BZB40,50 １２Ｖ １０Ｗ |
99132-11100 |
US $2.40 |
||
|
81251
|
81251
81027-36010 Lens, Room Lamp, No.1[08.2007 - 08.2011] BZB40,50..STD |
81027-36010 |
US $46.96 |
||
|
81251
|
81251
81241-90B00 Lens, Room Lamp, No.1[07.1999 - 08.2004] HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU ,IV5); HZB40..4FC..IV5 ｱﾘ(ﾊｸﾈﾂﾄｳ) & ﾃﾂｸｽ ﾌﾚｱｲ10ﾆﾝｼﾖｳ |
81241-90B00 |
US $76.96 |
||
|
81290
|
81290
81240-36040-B0 Lamp Assy, Room, No.1[03.2002 - 08.2004] BZB40,50 MD.CHARCOAL,TRIM1# |
81240-36040-B0 |
US $279.55 |
||
|
81290
|
81290
81240-36042 Lamp Assy, Room, No.1[08.2007 - 08.2011] BZB40,50..STD |
81240-36042 |
US $192.19 |
||
|
81290B
|
81290B
99132-11100 Bulb, Room Lamp, No.1[03.2002 - 08.2004] BZB40,50 １２Ｖ １０Ｗ |
99132-11100 |
US $2.40 |
||
|
81291
|
81291
81027-36010 Lens, Room Lamp, No.1[08.2007 - 08.2011] BZB40,50..STD |
81027-36010 |
US $46.96 |
||
|
81291
|
81291
81241-90B00 Lens, Room Lamp, No.1[07.1999 - 08.2004] HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(09S,10S,24S ,26S,29S,39S,49S)..(CBU,IV5); HZB40..4FC..IV5 ｱﾘ(ﾊｸﾈﾂﾄｳ) & ﾃﾂｸｽ ﾌﾚｱｲ10ﾆﾝｼﾖｳ |
81241-90B00 |
US $76.96 |
||
|
81361
|
81361
81361-90511 Lens, Step Lamp[07.1999 - 08.2004] BB58,BZB40,50,HDB5#,HZB4#,5# |
81361-90511 |
US $9.28 |
||
|
81364
|
81364
81364-90501 Gasket, Step Lamp[07.1999 - 08.2004] BB58,BZB40,50,HDB5#,HZB4#,5# |
81364-90501 |
US $4.51 |
||
|
81380D
|
81380D
81380-36020 Lamp Assy, Step[03.2002 - 08.2004] BZB40,50 |
81380-36020 |
US $32.03 |
||
|
81380D
|
81380D
81380-36021 Lamp Assy, StepSTEP [08.2009 - 08.2011] BZB40,50..STD |
81380-36021 |
US $24.17 |
||
|
81380E
|
81380E
99132-12050 Bulb (12V 5W)[03.2002 - 08.2004] BZB40,50 |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81380E
|
81380E
90080-81053 Bulb(For Clearance Lamp)[03.2002 - 08.2004] BZB40,50 |
90080-81053 |
US $2.75 |
||
|
9015940063
|
9015940063
90159-40063 New Genuine Part |
90159-40063 |
US $0.87 |
||
|
9324914020
|
9324914020
93249-14020 New Genuine Part |
93249-14020 |
US $0.87 |
||
|
9338315016
|
9338315016
93383-15016 New Genuine Part |
93383-15016 |
US $1.16 |
||
