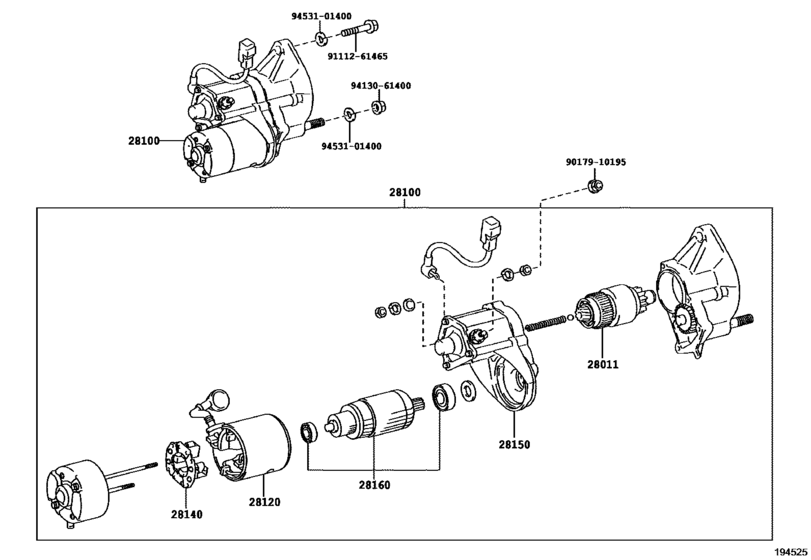

Starter ([08.2010 - ] 12V 2.5KW (1008- )1BZFPE) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[07.1999 - 08.2004] 15BFTE,1BZFPE..BB58,BZB40,50 |
28011-54010 |
from US $200.05 |
||
|
28100
|
28100
28100-56311 Starter Assy[03.2002 - 08.2004] 1BZFPE..BZB40,50 １２Ｖ ２．５ＫＷ |
28100-56311 |
US $1,645.28 |
||
| replacement | |||||
|
28100
|
28100
28100-56312 Starter Assy[03.2002 - 08.2004] 1BZFPE..BZB40,50 １２Ｖ ２．５ＫＷ |
28100-56312 |
US $1,241.97 |
||
|
28100
|
28100
28100-56312 Starter Assy[06.2009 - 08.2011] 1BZFPE..BZB40,50..STD １２Ｖ ２．５ＫＷ |
28100-56312 |
US $1,241.97 |
||
|
28120
|
28120
28120-56231
Yoke Assy, Starter
[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
28120-56231 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[07.1999 - 08.2004] 15BFTE,1BZFPE,1H#..BB58,BZB40,50,HDB5#,HZB4#,5# |
28140-77090 |
from US $60.98 |
||
|
28150
|
28150
28150-56310 Switch Assy, Magnet Starter[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
28150-56310 |
US $195.10 |
||
|
28160
|
28160
28160-54140 Armature Assy, Starter[03.2003 - 08.2004] 1BZFPE..BZB40,50 |
28160-54140 |
US $283.05 |
||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.76 |
||
|
9111261465
|
9111261465
91112-61465 Bolt |
91112-61465 |
US $4.80 |
||
|
9413061400
|
9413061400
94130-61400 Nut, Lock |
94130-61400 |
US $1.60 |
||
|
9453101400
|
9453101400
94531-01400 New Genuine Part |
94531-01400 |
US $0.87 |
||
