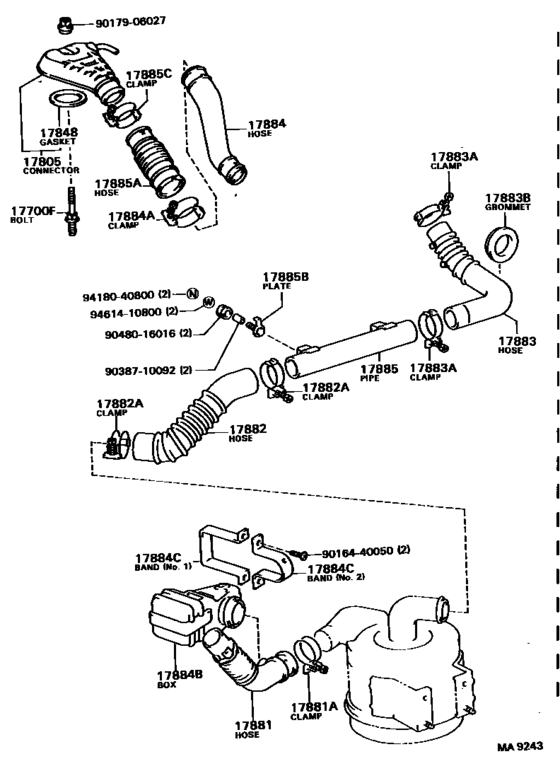

Air Cleaner ([10.1986 - ] (8610- )3F) Diagram Toyota COASTER
- Year
- 1986 - 1993
- Sales region
- Europe
- Frame
- FB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3F
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700F
|
17700F
90116-06309 Bolt, Stud(For Air Cleaner Setting)[10.1986 - 01.1993] 3F..FB30 |
90116-06309 |
US $3.35 |
||
|
17805
|
17805
17805-61040 Connector Sub-Assy, Intake AirINTAKE AIR [10.1986 - 01.1993] 3F..FB30 |
17805-61040 |
US $163.07 |
||
|
17848
|
17848
17848-61020 Gasket, Air Cleaner To Carburetor[10.1986 - 01.1993] 3F..FB30 |
17848-61020 |
from US $3.49 |
||
|
17881
|
17881
17781-90B02 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1986 - 01.1990] 3F..FB30 SNORKEL TYPE; 2H..HB30..GEN SNORKEL TYPE |
17781-90B02 |
US $56.64 |
||
| replacement | |||||
|
17881
|
17881
17781-90B03 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1986 - 01.1990] 3F..FB30 SNORKEL TYPE; 2H..HB30..GEN SNORKEL TYPE |
17781-90B03 |
US $55.76 |
||
|
17881
|
17881
17781-90B03 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [01.1990 - 01.1993] 3F..FB30 SNORKEL TYPE; 1HZ..HZB30..GEN,ME SNORKEL TYPE |
17781-90B03 |
US $55.76 |
||
|
17881
|
17881
59131-90B00 Hose, Air Cleaner, No.1[10.1986 - 01.1993] 3F..FB30; 2H..HB30 |
59131-90B00 |
US $55.18 |
||
|
17881
|
17881
59131-90B01 Hose, Air Cleaner, No.1[10.1986 - 08.1988] 3F..FB30 OIL BATH; 2H..HB30 OIL BATH |
59131-90B01 |
US $55.76 |
||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[05.1982 - 01.1987] 3F..FB30; 22R..RB20; 13B,3B..BB2#,30; 2H..HB30 |
96111-10750 |
from US $3.04 |
||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[10.1986 - 04.1990] 3F..FB30 SNORKEL TYPE; 2H..HB30..GEN SNORKEL TYPE |
96111-10830 |
from US $2.88 |
||
|
17881A
|
17881A
96111-10850 Clamp, Hose(For Air Connector)[04.1990 - 01.1993] 3F..FB30 SNORKEL TYPE; 3B..BB21..GEN,ME SNORKEL TYPE; 1HZ..HZB30..SRF..WC SNORKEL TYPE; 22R..RB20..GEN,ME SNORKEL TYPE |
96111-10850 |
from US $3.84 |
||
|
17882
|
17882
59132-90B03 Hose, Air Cleaner, No.2[10.1986 - 01.1993] 3F..FB30; 2H..HB30 |
59132-90B03 |
US $206.75 |
||
|
17882A
|
17882A
96111-10780 Clamp, Hose(For Air Connector)[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 3F..FB30; 2H..HB30 |
96111-10780 |
from US $3.94 |
||
|
17883
|
17883
59133-90B02 Hose, Air Cleaner, No.3[10.1986 - 01.1993] 3F..FB30; 2H..HB30 |
59133-90B02 |
US $292.66 |
||
|
17883A
|
17883A
96111-10780 Clamp, Hose(For Air Connector)[02.1983 - 01.1993] 3F..FB30; 2H..HB30; 22R..RB20 |
96111-10780 |
from US $3.94 |
||
|
17883B
|
17883B
90480-99006 Grommet, Air Cleaner Hose[10.1985 - 01.1993] 13B,3B..BB20,21,22,30; 3F..FB30; 2H..HB30; 22R..RB20; 3B..BB20,21..22S,25S,26S SNORKEL TYPE,NO.1; 22R..RB20..GEN,ME SNORKEL TYPE,NO.1 |
90480-99006 |
US $30.87 |
||
|
17884
|
17884
17882-61050 Hose, Air Cleaner, No.4AIR CLEANER, NO.4 [10.1986 - 01.1993] 3F..FB30 |
17882-61050 |
US $34.65 |
||
|
17884A
|
17884A
96111-10880 Clamp(For Air Intake Rubber Seal)[10.1986 - 01.1993] 3F..FB30 |
96111-10880 |
from US $8.32 |
||
|
17884B
|
17884B
59137-90B00 Box, Air Cleaner, No.1[10.1985 - 08.1988] 13B..BB22; 3F..FB30; 12HT,2H..HB3#; 3B..BB20..22S,26S;3B..BB21..RHD..(22S,26S);3B..BB21..LHD..(25S,26S) OIL BATH |
59137-90B00 |
US $24.75 |
||
|
17884C
|
17884C
59135-90B00 Band, Air Cleaner Box[10.1985 - 08.1988] 3F..FB30 NO.2; 2H..HB30 NO.2; 13B..BB22 NO.2; 3B..BB20,21..22S,25S,26S OIL BATH,NO.2 |
59135-90B00 |
US $11.07 |
||
|
17884C
|
17884C
59136-90B00 Band, Air Cleaner Box[10.1985 - 08.1988] 3F..FB30 NO.1; 2H..HB30 NO.1; 13B..BB22 NO.1; 3B..BB20,21..22S,25S,26S OIL BATH,NO.1 |
59136-90B00 |
US $15.58 |
||
|
17885
|
17885
59101-90B00 Pipe, Air Cleaner[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 3F..FB30; 2H..HB30; 22R..RB20 |
59101-90B00 |
US $149.97 |
||
|
17885A
|
17885A
17883-61011
Hose, Air Cleaner, No.3
[10.1986 - 01.1993] 3F..FB30 |
17883-61011 |
— | ||
|
17885B
|
17885B
59117-90B01 Plate, Pipe Support[10.1985 - 01.1993] 3F..FB30; 13B,14B,3B..BB2#,3#; 22R..RB20; 12HT,1H#,2H..HB3#,HDB30,HZB30 |
59117-90B01 |
US $18.05 |
||
|
17885C
|
17885C
96111-10800 Clamp, Hose(For Air Cleaner Duct)[10.1986 - 01.1993] 3F..FB30 |
96111-10800 |
from US $2.56 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.80 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9038710092
|
9038710092
90387-10092 New Genuine Part |
90387-10092 |
US $2.48 |
||
|
9048016016
|
9048016016
90480-16016 New Genuine Part |
90480-16016 |
US $1.46 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.54 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.70 |
||
