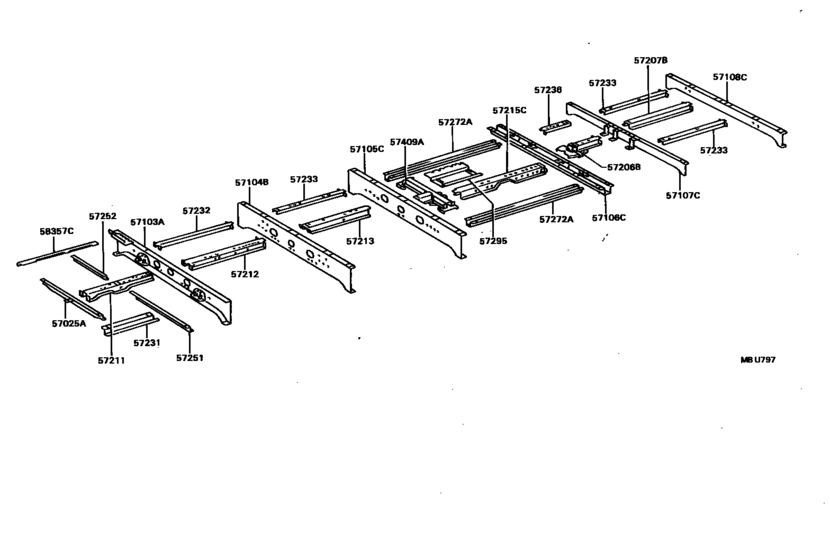

Rear Floor Panel & Rear Floor Member ([01.1990 - ] (9001- )BB32,FB30,HZB30..LHD..GEN) Diagram Toyota COASTER
- Year
- 1986 - 1993
- Sales region
- Europe
- Frame
- FB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3F
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57025A
|
57025A
57025-90B01 Strength, Sub-Assy, Crossmember Floor, No.2 SubSUB-ASSY, CROSSMEMBER FLOOR, NO.2 SUB [01.1990 - 01.1993] FB30; HZB30..LHD..GEN |
57025-90B01 |
US $60.72 |
||
|
57103A
|
57103A
57103-90B01 Crossmenber Sub-Assy, Floor, No.3FLOOR, NO.3 [01.1990 - 01.1993] BB21,32,FB30,HZB30,RB20..LHD |
57103-90B01 |
US $315.95 |
||
|
57103A
|
57103A
57103-90B08 Crossmenber Sub-Assy, Floor, No.3FLOOR, NO.3 [01.1990 - 01.1993] BB21,32,FB30,HZB30,RB20..LHD W/GLIDING TYPE CENTER DOOR OR W/GLIDING TYPE CENTER DOOR & W/TACHOMETER |
57103-90B08 |
US $315.95 |
||
|
57104B
|
57104B
57104-90B02 Crossmember Sub-Assy, Floor, No.4[01.1990 - 01.1993] HZB30..RHD; HZB30..LHD..GEN; BB32,FB30 |
57104-90B02 |
US $458.64 |
||
|
57105C
|
57105C
57105-90B04 Crossmember Sub-Assy, Floor, No.5[01.1990 - 01.1993] HZB30..RHD; HZB30..LHD..GEN; BB32,FB30 |
57105-90B04 |
US $722.18 |
||
|
57106C
|
57106C
57106-90B04 Crossmember Sub-Assy, Floor, No.6[01.1990 - 01.1993] BB2#,32,FB30,HZB30,RB20 |
57106-90B04 |
US $346.53 |
||
|
57107C
|
57107C
57107-90B03 Crossmenber Sub-Assy, Floor, No.7FLOOR, NO.7 [01.1990 - 01.1993] HZB30..LHD..GEN; BB32,FB30 |
57107-90B03 |
US $752.75 |
||
|
57108C
|
57108C
57108-90B03 Crossmember Sub-Assy, Floor, No.8[01.1990 - 01.1993] BB2#,32,FB30,HZB30,RB20 |
57108-90B03 |
US $263.54 |
||
|
57206B
|
57206B
57206-90B01 Strength Sub-Assy, AnchorANCHOR [01.1990 - 01.1993] BB21,FB30,HZB30,RB20..LHD |
57206-90B01 |
US $52.27 |
||
| replacement | |||||
|
57206B
|
57206B
57206-90B07 Strength Sub-Assy, AnchorANCHOR [01.1990 - 01.1993] BB21,FB30,HZB30,RB20..LHD |
57206-90B07 |
US $52.27 |
||
|
57206B
|
57206B
57206-90B07 Strength Sub-Assy, AnchorANCHOR [01.1990 - 01.1993] BB32; FB30,HZB30..LHD CHINA DISTINATION PACKAGE |
57206-90B07 |
US $52.27 |
||
|
57207B
|
57207B
57207-36010 Strength Sub-Assy, Rear Floor Housing, No.7[03.1991 - 01.1993] BB2#,32,FB30,HZB30,RB20 |
57207-36010 |
US $88.82 |
||
|
57207B
|
57207B
57207-90B01 Strength Sub-Assy, Rear Floor Housing, No.7[01.1990 - 03.1991] BB2#,32,FB30,HZB30,RB20 |
57207-90B01 |
US $88.82 |
||
| replacement | |||||
|
57207B
|
57207B
57207-36010 Strength Sub-Assy, Rear Floor Housing, No.7[01.1990 - 03.1991] BB2#,32,FB30,HZB30,RB20 |
57207-36010 |
US $88.82 |
||
|
57211
|
57211
57211-90B08 Strength, Anchor, No.1ANCHOR, NO.1 [01.1990 - 01.1993] FB30; HZB30..LHD..GEN |
57211-90B08 |
US $59.40 |
||
|
57212
|
57212
57212-90B01 Strength, Anchor, No.2ANCHOR, NO.2 [01.1990 - 01.1993] BB21,32,FB30,HZB30,RB20..LHD |
57212-90B01 |
US $88.82 |
||
|
57213
|
57213
57213-90B03 Strength, Anchor, No.3ANCHOR, NO.3 [01.1990 - 01.1993] HZB30..ME; HZB30..LHD..GEN; BB32,FB30 |
57213-90B03 |
US $82.99 |
||
|
57215C
|
57215C
57205-90B00 Strength, Anchor, No.5ANCHOR, NO.5 [01.1990 - 01.1993] BB32; FB30,HZB30..LHD CHINA DISTINATION PACKAGE |
57205-90B00 |
US $91.73 |
||
|
57215C
|
57215C
57215-90B01 Strength, Anchor, No.5ANCHOR, NO.5 [01.1990 - 01.1993] BB21,FB30,HZB30,RB20..LHD |
57215-90B01 |
US $85.90 |
||
|
57231
|
57231
57231-90B01 Strength, Anchor Side, No.1ANCHOR SIDE, NO.1 [01.1990 - 01.1993] FB30; HZB30..LHD |
57231-90B01 |
US $26.21 |
||
|
57232
|
57232
57232-90B00 Strength, Anchor Side, No.2[01.1990 - 01.1993] BB2#,32,FB30,HZB30,RB20 |
57232-90B00 |
US $44.84 |
||
|
57233
|
57233
57233-90B00 Strength, Anchor Side, No.3[01.1990 - 01.1993] HZB30..RHD RR; HZB30..LHD..GEN RR; BB32,FB30 RR |
57233-90B00 |
US $38.88 |
||
|
57236
|
57236
57236-90B00 Strength, Anchor Side, No.6[01.1990 - 01.1993] BB2#,32,FB30,HZB30,RB20..GEN,ME |
57236-90B00 |
US $17.18 |
||
|
57251
|
57251
57251-90B01 Strength, Floor CrossFLOOR CROSS [01.1990 - 01.1993] FB30; HZB30..LHD |
57251-90B01 |
US $36.69 |
||
|
57252
|
57252
57252-90B00 Strength, Floor Cross, No.2[01.1990 - 01.1993] BB2#,32,FB30,HZB30,RB20 |
57252-90B00 |
US $26.21 |
||
|
57272A
|
57272A
57272-90B00 Strength, Rear Floor Housing, Side[01.1990 - 01.1993] BB2#,32,FB30,HZB30,RB20 |
57272-90B00 |
US $59.40 |
||
|
57295
|
57295
57295-90B00 Insulator, Anchor Strength To Rear Floor[01.1990 - 01.1993] BB21,32,FB30,HZB30,RB20..LHD |
57295-90B00 |
US $55.47 |
||
|
57409A
|
57409A
57409-90B03 Strength Sub-Assy, Rear Floor HousingREAR FLOOR HOUSING [01.1990 - 01.1993] BB21,FB30,HZB30,RB20..LHD |
57409-90B03 |
US $101.92 |
||
| replacement | |||||
|
57409A
|
57409A
57409-90B05 Strength Sub-Assy, Rear Floor HousingREAR FLOOR HOUSING [01.1990 - 01.1993] BB21,FB30,HZB30,RB20..LHD |
57409-90B05 |
US $101.92 |
||
|
57409A
|
57409A
57409-90B05 Strength Sub-Assy, Rear Floor HousingREAR FLOOR HOUSING [01.1990 - 01.1993] BB32; FB30,HZB30..LHD CHINA DISTINATION PACKAGE |
57409-90B05 |
US $101.92 |
||
|
58357C
|
58357C
58357-90B01 Strength, Center Door Step, UpperCENTER DOOR STEP, UPPER [01.1990 - 01.1993] BB21,32,FB30,HZB30,RB20..LHD |
58357-90B01 |
US $40.77 |
||
