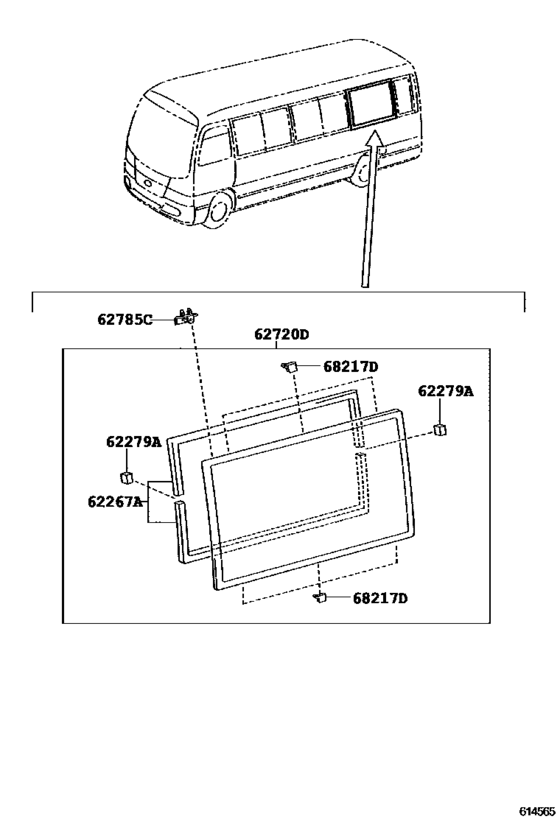

Side Window ([01.2013 - ] FIX TYPE (1301- )EX,LX) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- EX
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62267A
|
62267A
62267-36010 Dam, Side Window Adhesive[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
62267-36010 |
US $15 |
||
|
62279A
|
62279A
62279-36020 Spacer, Side Window Frame[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
62279-36020 |
US $1.31 |
||
|
62720D
|
62720D
62072-0S010
Glass Sub-Assy, Side Front Window, Lh
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
62072-0S010 |
— | ||
|
62720D
|
62720D
62072-0S030
Glass Sub-Assy, Side Front Window, Lh
[07.2015 -] GRB53..EX,LX; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN |
62072-0S030 |
— | ||
|
62785C
|
62785C
62785-36010 Spacer, Quarter Window Glass[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
62785-36010 |
from US $8 |
||
|
68217D
|
68217D
68217-36010 Pin, Front Door Fix Window[01.2013 - 07.2015] GRB53,XZB53..EX,LX BLACK; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR,BLACK |
68217-36010 |
US $3.84 |
||
|
68217D
|
68217D
68217-36020 Pin, Front Door Fix Window[01.2013 - 07.2015] GRB53,XZB53..EX,LX GRAY |
68217-36020 |
US $3.84 |
||
|
68217D
|
68217D
68217-36030 Pin, Side Window , No.1[01.2013 - 07.2015] GRB53,XZB53..EX,LX ORANGE |
68217-36030 |
US $3.84 |
||
|
68217D
|
68217D
68217-36040 Pin, Side Window, No.3[01.2013 - 07.2015] GRB53,XZB53..EX,LX GREEN |
68217-36040 |
US $2.18 |
