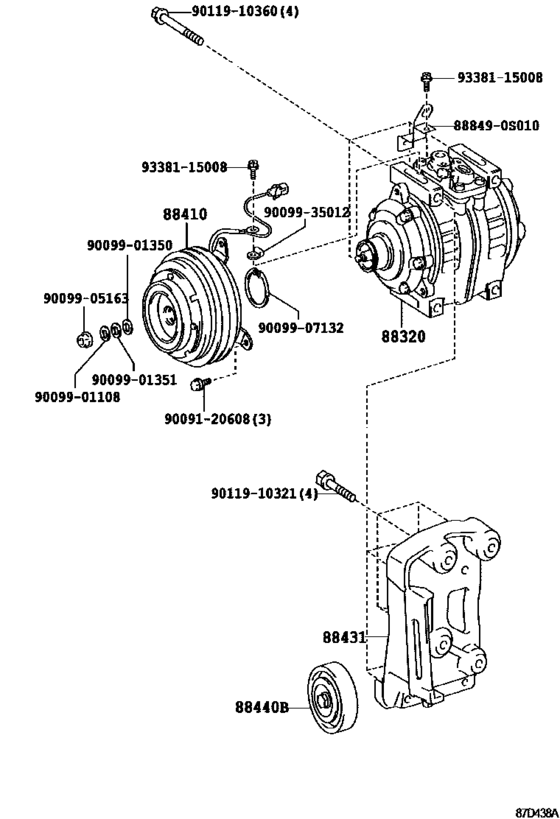

Heating & Air Conditioning - Compressor ([01.2013 - ] (1301- )GRB53) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- STD
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-36530 Compressor Assy, Cooler[01.2013 - 07.2015] GRB53 |
88320-36530 |
from US $2,481.02 |
||
|
88410
|
88410
88410-36430 Clutch Assy, MagnetMAGNET [01.2013 - 07.2015] GRB53,TRB53 |
88410-36430 |
US $349.44 |
||
|
88431
|
88431
88431-0S010
Bracket, Compressor Mounting, No.1
[01.2013 - 07.2015] GRB53 |
88431-0S010 |
— | ||
|
88440B
|
88440B
88440-0S020
Pulley Assy, Idle
[01.2013 - 03.2014] GRB53 |
88440-0S020 |
— | ||
| replacement | |||||
|
88440B
|
88440B
88440-0S021
Pulley Assy, Idle
[01.2013 - 03.2014] GRB53 |
88440-0S021 |
— | ||
|
88440B
|
88440B
88440-0S021
Pulley Assy, Idle
[04.2014 - 07.2015] GRB53 |
88440-0S021 |
— | ||
|
888490S010
|
888490S010
88849-0S010
New Genuine Part
|
88849-0S010 |
— | ||
|
9009120608
|
9009120608
90091-20608 BOLT |
90091-20608 |
US $0.42 |
||
|
9009901108
|
9009901108
90099-01108
Washer (For Magnet Clutch)
|
90099-01108 |
— | ||
|
9009901350
|
9009901350
90099-01350
Washer (For Magnet Clutch)
|
90099-01350 |
— | ||
|
9009901351
|
9009901351
90099-01351
Washer (For Magnet Clutch)
|
90099-01351 |
— | ||
|
9009905163
|
9009905163
90099-05163 NUT |
90099-05163 |
from US $0.55 |
||
|
9009907132
|
9009907132
90099-07132 SNAP RING |
90099-07132 |
from US $3.67 |
||
|
9009935012
|
9009935012
90099-35012
CLIP
|
90099-35012 |
— | ||
|
9011910321
|
9011910321
90119-10321 BOLT |
90119-10321 |
US $1.89 |
||
|
9011910360
|
9011910360
90119-10360 BOLT |
90119-10360 |
from US $2.65 |
||
|
9338115008
|
9338115008
93381-15008 SCREWWWASHER |
93381-15008 |
US $1.44 |
||
