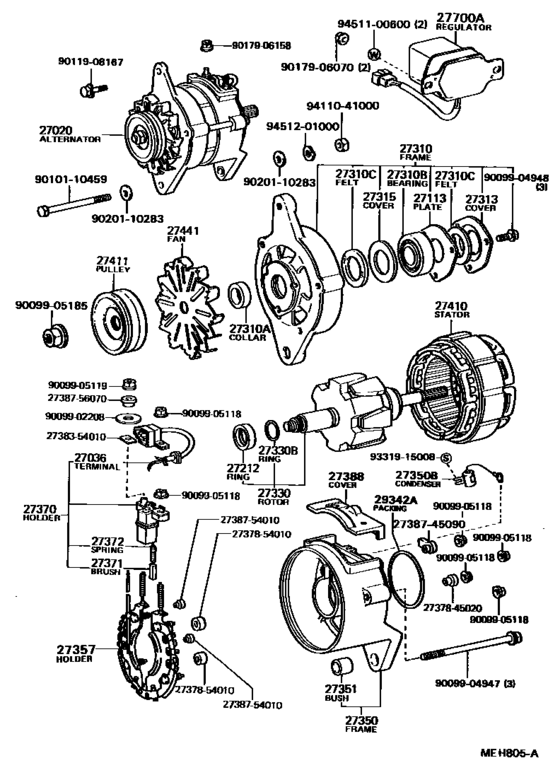

Alternator ([10.1986 - 01.1990] 12V 40A,24V 25A (8610-9001)2H..WOC) Diagram Toyota COASTER
- Year
- 1986 - 1990
- Sales region
- General
- Frame
- HB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2H
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-68040 Alternator Assy[10.1986 - 01.1990] 2H..HB30..WOC..GEN 24V 25A,24V 25A |
27020-68040 |
US $1,094.91 |
||
| replacement | |||||
|
27020
|
27020
27020-68130
Alternator Assy
[10.1986 - 01.1990] 2H..HB30..WOC..GEN 24V 25A,24V 25A |
27020-68130 |
— | ||
|
27020
|
27020
27020-68100
Alternator Assy
[10.1986 - 08.1987] 2H..HB30..WOC 12V 40A,12V 40A |
27020-68100 |
— | ||
| replacement | |||||
|
27020
|
27020
27020-68110
Alternator Assy
[10.1986 - 08.1987] 2H..HB30..WOC 12V 40A,12V 40A |
27020-68110 |
— | ||
|
27020
|
27020
27020-68110
Alternator Assy
[08.1987 - 01.1990] 2H..HB30..WOC 12V 45A,12V 40A |
27020-68110 |
— | ||
|
27036
|
27036
27036-54010
Terminal Sub-Assy, Lead Wire, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27036-54010 |
— | ||
|
27113
|
27113
27312-57060
Plate, Bearing Retainer, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27312-57060 |
— | ||
|
27212
|
27212
27333-57060
Ring, Space(For Alternator Rotor)
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27333-57060 |
— | ||
|
27310
|
27310
27310-56160
Frame Assy, Drive End, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
27310-56160 |
— | ||
|
27310
|
27310
27310-56180
Frame Assy, Drive End, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC..GEN 24V 25A |
27310-56180 |
— | ||
|
27310A
|
27310A
27412-57060
Collar Or Nut(For Alternator Drive End Frame)
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27412-57060 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
90099-10137 |
US $12.58 |
||
|
27310C
|
27310C
90099-02209
Felt(For Alternator Drive End Frame)
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
90099-02209 |
— | ||
|
27313
|
27313
27313-57060
Cover, Alternator Felt, Inner No.2
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27313-57060 |
— | ||
|
27315
|
27315
27315-57060
Cover, Alternator Felt, Inner No.1
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27315-57060 |
— | ||
|
27330
|
27330
27330-56110
Rotor Assy, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC..GEN 24V 25A |
27330-56110 |
— | ||
|
27330
|
27330
27330-56140
Rotor Assy, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
27330-56140 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-54200
Rotor Assy, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
27330-54200 |
— | ||
|
27330B
|
27330B
90099-07103
Ring, Snap(For Alternator Rotor)
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
90099-07103 |
— | ||
|
27350
|
27350
27350-68030
Frame Assy, Rectifier End
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
27350-68030 |
— | ||
|
27350
|
27350
27350-68040
Frame Assy, Rectifier End
[10.1986 - 01.1990] 2H..HB30..WOC..GEN 24V 25A |
27350-68040 |
— | ||
|
27350B
|
27350B
90099-52066
Condenser, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
90099-52066 |
— | ||
| replacement | |||||
|
27350B
|
27350B
90099-52035
Condenser, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
90099-52035 |
— | ||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27351-56013 |
— | ||
|
27357
|
27357
27357-54190
Holder, Alternator, W/rectifier
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27357-54190 |
— | ||
|
27370
|
27370
27370-54010
Holder Assy, Alternator Brush
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27370-54010 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-54250 Holder Assy, Alternator Brush[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27370-54250 |
from US $25.16 |
||
|
27371
|
27371
27371-56070
Brush, Alternator
[10.1986 - 01.1990] 12HT,2H..HB3# 12V 40A,24V 25A,55A |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[10.1986 - 01.1990] 12HT,2H..HB3# 12V 40A,24V 25A,55A |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[10.1986 - 01.1990] 12HT,2H..HB3# 12V 40A,24V 25A,55A |
27372-56070 |
— | ||
|
27388
|
27388
27388-68040
Cover, Frame Brush
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27388-68040 |
— | ||
| replacement | |||||
|
27388
|
27388
27388-54110
Cover, Alternator Brush
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27388-54110 |
— | ||
|
27410
|
27410
27410-54190
Stator Assy, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
27410-54190 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-54340 Stator Assy, Alternator[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A |
27410-54340 |
US $387.70 |
||
|
27410
|
27410
27410-56110
Stator Assy, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC..GEN 24V 25A |
27410-56110 |
— | ||
|
27411
|
27411
27411-68041
Pulley, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27411-68041 |
— | ||
|
27441
|
27441
27441-35070
Fan, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 90A |
27441-35070 |
— | ||
|
27441
|
27441
27441-56090
Fan, Alternator
[10.1986 - 01.1990] 2H..HB30..WOC 12V 40A,24V 25A |
27441-56090 |
— | ||
|
27700A
|
27700A
27700-35030 Regulator Assy, Generator[05.1982 - 08.1988] 22R,3B,3F,2H..BB20,21,FB30,HB30,RB20..(20S,22S,23S,25S,26S,29S,30S)..WOC 12V 40A,45A,50A |
27700-35030 |
US $144.14 |
||
| replacement | |||||
|
27700A
|
27700A
27700-13040
Regulator Assy, Generator
[05.1982 - 08.1988] 22R,3B,3F,2H..BB20,21,FB30,HB30,RB20..(20S,22S,23S,25S,26S,29S,30S)..WOC 12V 40A,45A,50A |
27700-13040 |
— | ||
|
27700A
|
27700A
27700-57051
Regulator Assy, Generator
[08.1988 - 01.1990] 12HT,2H..HB3# 24V 55A |
27700-57051 |
— | ||
|
27700A
|
27700A
27700-57070
Regulator Assy, Generator
[05.1982 - 08.1988] 3B,2H..BB20,21,HB30..(22S,26S,30S)..WOC..GEN 24V 20A,25A |
27700-57070 |
— | ||
|
29342A
|
29342A
90099-14055
Packing, Vacuum Pump
[10.1986 - 01.1990] 12HT,2H..HB3# 12V 40A,24V 25A,55A |
90099-14055 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738354010
|
2738354010
27383-54010
Washer, Alternater Terminal Insulator, No.1
|
27383-54010 |
— | ||
|
2738745090
|
2738745090
27387-45090
Insulator, Terminal
|
27387-45090 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904947
|
9009904947
90099-04947
New Genuine Part
|
90099-04947 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9010110459
|
9010110459
90101-10459 New Genuine Part |
90101-10459 |
US $8.44 |
||
|
9011908167
|
9011908167
90119-08167 New Genuine Part |
90119-08167 |
US $1.60 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9020110283
|
9020110283
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
US $2.88 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
