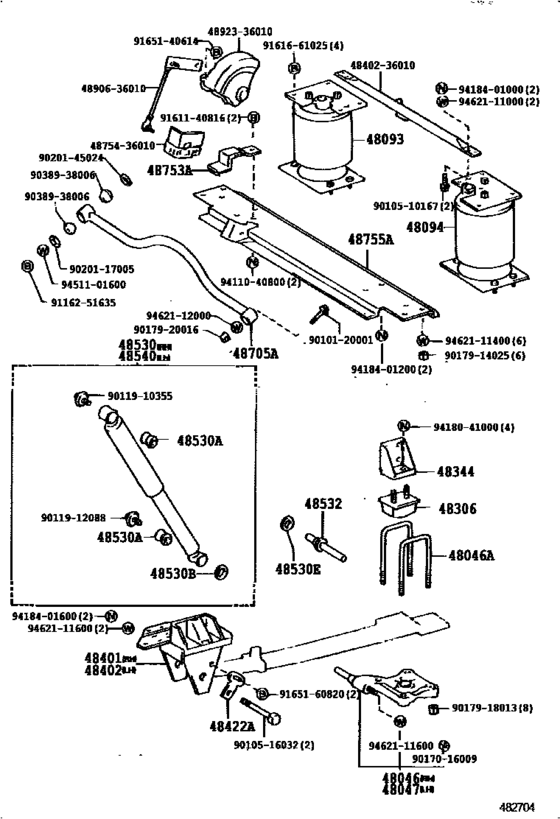

Rear Spring & Shock Absorber ([05.1982 - ] (8205- )BB24,HB32,HDB20,31,HZB31) Diagram Toyota COASTER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- HB32
- grade
- EXS
- Roof
- HRF
- ENGINE
- 12HT
- COOLER
- WC
- Model
- COASTER
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046
|
48046
48046-36210 Seat Sub-Assy, Spring U Bolt, Rh[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48046-36210 |
US $173.26 |
||
|
48046A
|
48046A
90117-18006 Bolt, U(For Rear Spring)[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 長さ＝２４０ |
90117-18006 |
US $40.33 |
||
|
48047
|
48047
48047-36210 Seat Sub-Assy, Spring U Bolt, Lh[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48047-36210 |
US $173.26 |
||
|
48093
|
48093
48093-36010
Sleeve Sub-Assy, Rear Suspension, Rh
[08.1988 - 08.1992] BB24,HB32,HDB20,31,HZB31 |
48093-36010 |
— | ||
| replacement | |||||
|
48093
|
48093
48093-36012
Sleeve Sub-Assy, Rear Suspension, Rh
[08.1988 - 08.1992] BB24,HB32,HDB20,31,HZB31 |
48093-36012 |
— | ||
|
48094
|
48094
48094-36010
Sleeve Sub-Assy, Rear Suspension, Lh
[08.1988 - 08.1992] BB24,HB32,HDB20,31,HZB31 |
48094-36010 |
— | ||
| replacement | |||||
|
48094
|
48094
48094-36012
Sleeve Sub-Assy, Rear Suspension, Lh
[08.1988 - 08.1992] BB24,HB32,HDB20,31,HZB31 |
48094-36012 |
— | ||
|
48306
|
48306
48306-36050 Bumper Sub-Assy, Rear Spring[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48306-36050 |
US $33.49 |
||
|
48344
|
48344
48344-36300 Stopper, Bumper, Rear[08.1988 - 01.1993] BB24,HB32 |
48344-36300 |
US $42.81 |
||
|
48401
|
48401
48414-36280 Bracket Sub-Assy, Rear Spring, Front Rh[08.1988 - 01.1993] BB24,HB32 |
48414-36280 |
US $158.70 |
||
|
48402
|
48402
48415-36080 Bracket Sub-Assy, Rear Spring, Front Lh[08.1988 - 01.1993] BB24,HB32 |
48415-36080 |
US $158.70 |
||
|
48422A
|
48422A
48422-36030
Support, Front Spring Pin
[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48422-36030 |
— | ||
| replacement | |||||
|
48422A
|
48422A
48422-37010 Support, Front Spring Pin[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48422-37010 |
US $5.12 |
||
|
48530
|
48530
48531-80003 Absorber Assy, Shock, Rear Rh[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48531-80003 |
US $107.74 |
||
| replacement | |||||
|
48530
|
48530
48531-80579 Absorber Assy, Shock, Rear Rh[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48531-80579 |
US $107.74 |
||
|
48530A
|
48530A
90385-16009 Cushion, Shock Absorber[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 UPR |
90385-16009 |
from US $2.67 |
||
|
48530A
|
48530A
90385-19006 Cushion, Shock Absorber[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 LWR |
90385-19006 |
from US $3.10 |
||
|
48530B
|
48530B
90948-03011 Washer, Front Shock Absorber Cushion, No.1[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
90948-03011 |
from US $2.08 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1982 - 01.1993] BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
90948-03004 |
from US $1.37 |
||
|
48532
|
48532
48532-36030 Pin, Rear Shock Absorber Pivot[08.1988 - 01.1993] BB24,HB32 |
48532-36030 |
US $10.63 |
||
|
48540
|
48540
48531-80003 Absorber Assy, Shock, Rear Rh[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48531-80003 |
US $107.74 |
||
| replacement | |||||
|
48540
|
48540
48531-80579 Absorber Assy, Shock, Rear Rh[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48531-80579 |
US $107.74 |
||
|
48705A
|
48705A
48740-36010
Rod Sub-Assy, Lateral Control
[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48740-36010 |
— | ||
|
48753A
|
48753A
48753-36010 Cover, Rear Suspension Lower Menber[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48753-36010 |
US $96.10 |
||
|
48755A
|
48755A
48755-36010 Member, Rear Suspension Sleeve, Lower[08.1988 - 01.1993] BB24,HB32,HDB20,31,HZB31 |
48755-36010 |
US $180.54 |
||
|
4840236010
|
4840236010
48402-36010 Bracket Sub-assy, Rear Spring, Front Lh |
48402-36010 |
US $133.95 |
||
|
4875436010
|
4875436010
48754-36010 Support, Lower Arm Pin |
48754-36010 |
US $96.10 |
||
|
4890636010
|
4890636010
48906-36010 Guide Sub-assy, Strut |
48906-36010 |
US $147.06 |
||
|
4892336010
|
4892336010
48923-36010 Ring, Diaphragm Set, No.1 |
48923-36010 |
US $30.87 |
||
|
9010120001
|
9010120001
90101-20001 New Genuine Part |
90101-20001 |
US $9.03 |
||
|
9010510167
|
9010510167
90105-10167 Bolt, Hexagon(For Rear Caliper) |
90105-10167 |
US $2.62 |
||
|
9010516032
|
9010516032
90105-16032 New Genuine Part |
90105-16032 |
US $12.23 |
||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
US $3.84 |
||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
from US $2.11 |
||
|
9017016009
|
9017016009
90170-16009
New Genuine Part
|
90170-16009 |
— | ||
|
9017914025
|
9017914025
90179-14025 Nut (For Front Lower Ball Joint Setting) |
90179-14025 |
from US $1.68 |
||
|
9017918013
|
9017918013
90179-18013 New Genuine Part |
90179-18013 |
US $4.95 |
||
|
9017920016
|
9017920016
90179-20016
Nut
|
90179-20016 |
— | ||
|
9020117005
|
9020117005
90201-17005 Washer, Plate, No.2(For Rear Lateral Control Rod) |
90201-17005 |
US $8.30 |
||
|
9020145024
|
9020145024
90201-45024 Washer, Plate, No.1(For Rear Lateral Control Rod) |
90201-45024 |
US $6.26 |
||
|
9038938006
|
9038938006
90389-38006 Bush, No.1(For Rear Lateral Control Rod) |
90389-38006 |
from US $14.40 |
||
|
9116251635
|
9116251635
91162-51635 New Genuine Part |
91162-51635 |
US $4.22 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9161661025
|
9161661025
91616-61025
Bolt (For Control Shaft Cover)
|
91616-61025 |
— | ||
| replacement | |||||
|
9161661025
|
9161661025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.09 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.15 |
||
|
9418401200
|
9418401200
94184-01200
New Genuine Part
|
94184-01200 |
— | ||
|
9418401600
|
9418401600
94184-01600 New Genuine Part |
94184-01600 |
US $3.64 |
||
|
9451101600
|
9451101600
94511-01600 New Genuine Part |
94511-01600 |
US $0.73 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.19 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
|
9462111600
|
9462111600
94621-11600 Washer(For Rear Spring U Bolt) |
94621-11600 |
US $5.12 |
||
|
9462112000
|
9462112000
94621-12000 New Genuine Part |
94621-12000 |
US $2.04 |
||
