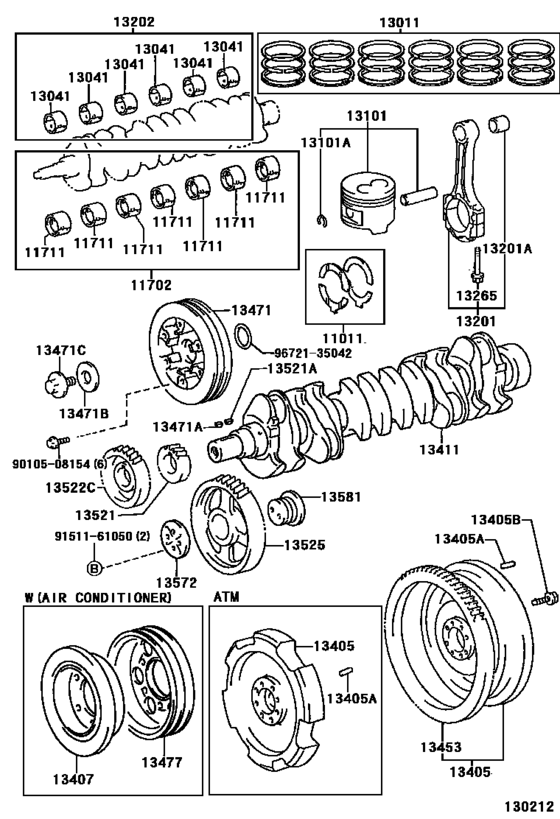

Crankshaft & Piston ([01.1990 - ] (9001- )1H#) Diagram Toyota COASTER
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- HDB31
- grade
- SULNG
- Roof
- HRF
- ENGINE
- 1HDT
- COOLER
- WC
- Model
- COASTER
- From
- 01.1990
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-17010 Washer Set, Crankshaft Thrust[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# ＳＴＤ |
11011-17010 |
from US $40.13 |
||
|
11702
|
11702
11704-17010
Bearing Set, Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-17010 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-17011 Bearing Set, Crankshaft (US 0.25)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-17011 |
from US $150.54 |
||
|
11702
|
11702
11705-17010
Bearing Set, Crankshaft 0.5
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-17010 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-17011 Bearing Set, Crankshaft (US 0.50)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-17011 |
from US $151.67 |
||
|
11711
|
11711
11701-17010-02
Bearing, Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 2,MARK 2 |
11701-17010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-02 Bearing, Crankshaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 2,MARK 2 |
11701-17011-02 |
from US $18.37 |
||
|
11711
|
11711
11701-17010-03
Bearing, Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 3,MARK 3 |
11701-17010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-03 Bearing, Crankshaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 3,MARK 3 |
11701-17011-03 |
from US $18.53 |
||
|
11711
|
11711
11701-17010-04
Bearing, Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 4,MARK 4 |
11701-17010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-04 Bearing, Crankshaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 4,MARK 4 |
11701-17011-04 |
from US $18.15 |
||
|
11711
|
11711
11701-17010-05
Bearing, Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 5,MARK 5 |
11701-17010-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-05 Bearing, Crankshaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 5,MARK 5 |
11701-17011-05 |
from US $18.06 |
||
|
11711
|
11711
11701-17010-06
Bearing, Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 6,MARK 6 |
11701-17010-06 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-06 Bearing, Crankshaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 6,MARK 6 |
11701-17011-06 |
from US $19.31 |
||
|
13011
|
13011
13011-17010
Ring Set, Piston
[01.1990 - 08.1992] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
13011-17010 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-17030 Ring Set, Piston (STD)[01.1990 - 08.1992] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
13011-17030 |
from US $272.16 |
||
|
13011
|
13011
13011-17011
Ring Set, Piston
[08.1992 - 01.1993] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
13011-17011 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-17030 Ring Set, Piston (STD)[08.1992 - 01.1993] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
13011-17030 |
from US $272.16 |
||
|
13011
|
13011
13013-17010 Ring Set, Piston[01.1990 - 08.1992] 1H#..HDB20,3#,HZB3# Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-17010 |
US $410.59 |
||
| replacement | |||||
|
13011
|
13011
13013-17030 Ring Set, Piston (OS 0.50)[01.1990 - 08.1992] 1H#..HDB20,3#,HZB3# Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-17030 |
from US $277.92 |
||
|
13011
|
13011
13013-17011
Ring Set, Piston
[08.1992 - 01.1993] 1H#..HDB20,3#,HZB3# Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-17011 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-17030 Ring Set, Piston (OS 0.50)[08.1992 - 01.1993] 1H#..HDB20,3#,HZB3# Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-17030 |
from US $277.92 |
||
|
13041
|
13041
13041-17010-02
Bearing, Connecting Rod
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 2,MARK 2 |
13041-17010-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-17011-02 Bearing, Connecting Rod[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 2,MARK 2 |
13041-17011-02 |
from US $13.30 |
||
|
13041
|
13041
13041-17010-03
Bearing, Connecting Rod
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 3,MARK 3 |
13041-17010-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-17011-03 Bearing, Connecting Rod[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 3,MARK 3 |
13041-17011-03 |
from US $14.47 |
||
|
13041
|
13041
13041-17010-04
Bearing, Connecting Rod
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 4,MARK 4 |
13041-17010-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-17011-04 Bearing, Connecting Rod[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 4,MARK 4 |
13041-17011-04 |
from US $13.30 |
||
|
13041
|
13041
13041-17010-05
Bearing, Connecting Rod
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 5,MARK 5 |
13041-17010-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-17011-05 Bearing, Connecting Rod[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 5,MARK 5 |
13041-17011-05 |
from US $13.53 |
||
|
13041
|
13041
13041-17010-06
Bearing, Connecting Rod
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 6,MARK 6 |
13041-17010-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-17011-06 Bearing, Connecting Rod[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 6,MARK 6 |
13041-17011-06 |
from US $14.47 |
||
|
13101
|
13101
13101-17020-01
Piston Sub-Assy, W/pin
[01.1990 - 01.1993] 1HDT..HDB20,3# ＳＴＤ,STD,MARK"1",MARK 1 |
13101-17020-01 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-17060-01 Piston Sub-Assy, W/pin[01.1990 - 01.1993] 1HDT..HDB20,3# ＳＴＤ,STD,MARK"1",MARK 1 |
13101-17060-01 |
US $165.44 |
||
|
13101
|
13101
13101-17020-02
Piston Sub-Assy, W/pin
[01.1990 - 01.1993] 1HDT..HDB20,3# ＳＴＤ,STD,MARK"2",MARK 2 |
13101-17020-02 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-17060-02
Piston Sub-Assy, W/pin
[01.1990 - 01.1993] 1HDT..HDB20,3# ＳＴＤ,STD,MARK"2",MARK 2 |
13101-17060-02 |
— | ||
|
13101
|
13101
13101-17020-03
Piston Sub-Assy, W/pin
[01.1990 - 01.1993] 1HDT..HDB20,3# ＳＴＤ,STD,MARK"3",MARK 3 |
13101-17020-03 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-17060-03
Piston Sub-Assy, W/pin
[01.1990 - 01.1993] 1HDT..HDB20,3# ＳＴＤ,STD,MARK"3",MARK 3 |
13101-17060-03 |
— | ||
|
13101
|
13101
13103-17020 Piston Sub-Assy, W/pin[01.1990 - 01.1993] 1HDT..HDB20,3# Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-17020 |
from US $187.69 |
||
| replacement | |||||
|
13101
|
13101
13103-17060 Piston Sub-Assy, W/pin[01.1990 - 01.1993] 1HDT..HDB20,3# Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-17060 |
from US $170 |
||
|
13101A
|
13101A
90521-36001 Ring, Hole Snap(For Piston Pin)[01.1990 - 01.1993] 1HDT..HDB20,3# |
90521-36001 |
US $2.72 |
||
|
13201
|
13201
13201-17020
Rod Sub-Assy, Connecting
[01.1990 - 01.1993] 1HDT..HDB20,3# |
13201-17020 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-17022 Rod Sub-Assy, Connecting[01.1990 - 01.1993] 1HDT..HDB20,3# |
13201-17022 |
from US $250.46 |
||
|
13201A
|
13201A
90999-73127
Bush(For Connecting Rod Small End)
[01.1990 - 01.1993] 1HDT..HDB20,3# |
90999-73127 |
— | ||
| replacement | |||||
|
13201A
|
13201A
90999-73137 Bush(For Connecting Rod Small End)[01.1990 - 01.1993] 1HDT..HDB20,3# |
90999-73137 |
from US $16 |
||
|
13202
|
13202
13204-17010
Bearing Set, Connecting Rod (U/S 0.25)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-17010 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-17011 Bearing Set, Connecting Rod (US 0.25)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-17011 |
from US $96.06 |
||
|
13202
|
13202
13205-17010
Bearing Set, Connecting Rod (U/S 0.50)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-17010 |
— | ||
| replacement | |||||
|
13202
|
13202
13205-17011 Bearing Set, Connecting Rod (US 0.50)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-17011 |
from US $98.51 |
||
|
13265
|
13265
13265-17010 Bolt, Connecting Rod[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13265-17010 |
from US $4.72 |
||
|
13405
|
13405
13405-17010 Flywheel Sub-Assy[01.1990 - 01.1993] 1H#..HDB3#,HZB3#..5F |
13405-17010 |
from US $501.20 |
||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[05.1982 - 01.1993] 14B,3B..BB2#,3#..5F 長さ＝２２，外径＝１０,L=22,OD=10; 12HT,1H#,2H..HB3#,HDB3#,HZB3#..5F 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
13405B
|
13405B
90105-12169 Bolt, Flywheel Setting[01.1990 - 01.1993] 1H#..HDB3#,HZB3#..5F |
90105-12169 |
from US $1.85 |
||
|
13407
|
13407
13407-17020
Damper Sub-Assy, Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13407-17020 |
— | ||
|
13411
|
13411
13411-17010
Crankshaft
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13411-17010 |
— | ||
| replacements | |||||
|
13411
|
13411
13411-17012 Crankshaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13411-17012 |
from US $1,652.35 |
||
|
13411
|
13411
90311-95008 Seal, Engine Rear Oil[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90311-95008 |
from US $25.08 |
||
|
13453
|
13453
13453-17010 Gear, Flywheel Ring[01.1990 - 01.1993] 1H#..HDB3#,HZB3#..5F |
13453-17010 |
US $101.34 |
||
|
13471
|
13471
13408-17010 Pulley, Crankshaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13408-17010 |
from US $207.11 |
||
|
13471A
|
13471A
95161-20516 Key, Crankshaft(For Crankshaft Pulley Set)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
95161-20516 |
US $2.97 |
||
|
13471B
|
13471B
90201-27001 Washer, Plate(For Crankshaft Pulley Set)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90201-27001 |
from US $6.88 |
||
|
13471C
|
13471C
90105-24001 Bolt(For Crankshaft Pulley Set)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90105-24001 |
from US $7.22 |
||
|
13477
|
13477
88451-36100
Pulley, Crankshaft, No.2
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
88451-36100 |
— | ||
|
13521
|
13521
13521-17010 Gear Or Sprocket, Crankshaft Timing[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13521-17010 |
from US $33.90 |
||
|
13521A
|
13521A
95161-20516 Key, Crankshaft(For Crankshaft Pulley Set)[01.1990 - 03.1992] 1H#..HDB20,3#,HZB3# |
95161-20516 |
US $2.97 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[03.1992 - 01.1993] 1H#..HDB20,3#,HZB3# |
95161-30516 |
from US $1.11 |
||
|
13522C
|
13522C
13522-17010 Gear, Pump Drive Shaft[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 |
13522-17010 |
from US $34.94 |
||
|
13525
|
13525
13525-17010 Gear, Idle, No.1[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13525-17010 |
from US $130.88 |
||
|
13572
|
13572
13572-17010
Plate, Idle Gear Thrust
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13572-17010 |
— | ||
| replacement | |||||
|
13572
|
13572
13572-17021 Plate, Idle Gear Thrust[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13572-17021 |
from US $8.58 |
||
|
13581
|
13581
13581-17010
Shaft, Idle Gear, No.1
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13581-17010 |
— | ||
| replacement | |||||
|
13581
|
13581
13581-17012 Shaft, Idle Gear, No.1[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
13581-17012 |
from US $21.84 |
||
|
9010508154
|
9010508154
90105-08154 Bolt, No.1(For Alternator) |
90105-08154 |
US $1.44 |
||
|
9151161050
|
9151161050
91511-61050
Bolt, Flange (For Idler)
|
91511-61050 |
— | ||
|
9672135042
|
9672135042
96721-35042 RING |
96721-35042 |
US $2.88 |
||
