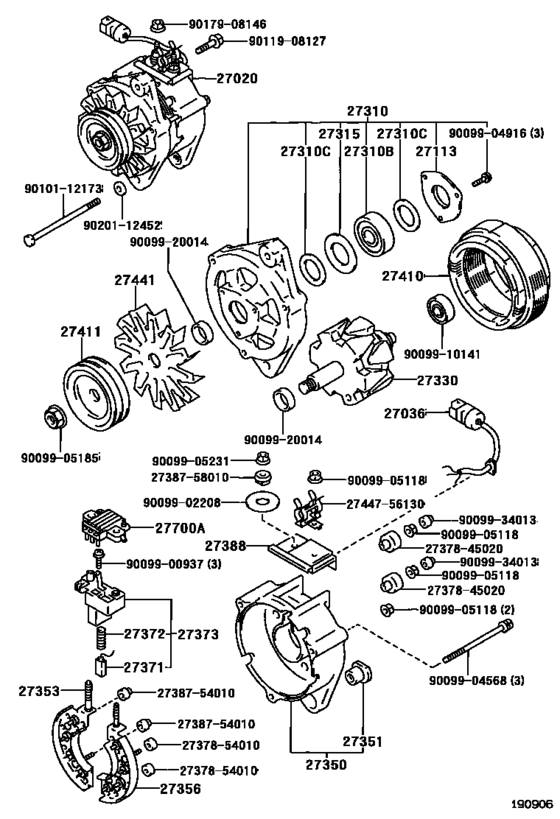

Alternator ([01.1990 - ] 24V 85A (9001- )1H#..HDB20,3#,HZB30,31..4FC) Diagram Toyota COASTER
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- HDB31
- grade
- SULNG
- Roof
- HRF
- ENGINE
- 1HDT
- COOLER
- WC
- Model
- COASTER
- From
- 01.1990
- To
- 01.1993
- Gear Shift Type
- 4FC
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-17080 Alternator Assy[01.1990 - 01.1993] 1H#..HDB3#,HZB3# １２Ｖ ５５Ａ |
27060-17080 |
US $1,892.80 |
||
|
27020
|
27020
27060-17100
Alternator Assy
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC ２４Ｖ ８５Ａ; 1HZ..HZB36 ２４Ｖ ８５Ａ |
27060-17100 |
— | ||
|
27036
|
27036
27036-58010
Terminal Sub-Assy, Lead Wire, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27036-58010 |
— | ||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[01.1990 - 01.1993] 1H#..HDB3#,HZB3# 24V 55A |
27312-42010 |
— | ||
|
27113
|
27113
27312-56070
Plate, Bearing Retainer, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27312-56070 |
— | ||
|
27310
|
27310
27310-17100
Frame Assy, Drive End, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27310-17100 |
— | ||
|
27310
|
27310
27310-58160
Frame Assy, Drive End, Alternator
[01.1990 - 01.1993] 1H#..HDB3#,HZB3# 24V 55A |
27310-58160 |
— | ||
|
27310B
|
27310B
90099-10160
Bearing(For Alternator Drive End Frame)
[01.1990 - 01.1993] 1H#..HDB3#,HZB3# 24V 55A |
90099-10160 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10219 Bearing(For Alternator Drive End Frame)[01.1990 - 01.1993] 1H#..HDB3#,HZB3# 24V 55A |
90099-10219 |
from US $16.28 |
||
|
27310B
|
27310B
90099-58010
Bearing(For Alternator Drive End Frame)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
90099-58010 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10188
Bearing(For Alternator Drive End Frame)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
90099-10188 |
— | ||
|
27310C
|
27310C
90099-02207
Felt(For Alternator Drive End Frame)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
90099-02207 |
— | ||
|
27315
|
27315
27315-56070
Cover, Alternator Felt, Inner No.1
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27315-56070 |
— | ||
|
27330
|
27330
27330-58050
Rotor Assy, Alternator
[01.1990 - 01.1993] 1H#..HDB3#,HZB3# 24V 55A |
27330-58050 |
— | ||
|
27330
|
27330
27330-58090
Rotor Assy, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27330-58090 |
— | ||
|
27350
|
27350
27350-17100
Frame Assy, Rectifier End
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27350-17100 |
— | ||
|
27351
|
27351
27351-17100
Bush(For Alternator Rectifier End Frame)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27351-17100 |
— | ||
| replacement | |||||
|
27351
|
27351
27351-58160
Bush(For Alternator Rectifier End Frame)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27351-58160 |
— | ||
|
27353
|
27353
27356-58010
Holder, W/rectifier Positive, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27356-58010 |
— | ||
|
27356
|
27356
27353-58010
Holder, W/rectifier
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27353-58010 |
— | ||
|
27371
|
27371
27371-54412 Brush, Alternator[06.1991 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27371-54412 |
from US $3.32 |
||
|
27371
|
27371
27371-56070
Brush, Alternator
[01.1990 - 06.1991] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[01.1990 - 06.1991] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27372-56070 |
— | ||
|
27373
|
27373
27373-58010
Holder, Alternator Brush, A
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A |
27373-58010 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[01.1990 - 01.1993] 1H#..HDB3#,HZB3# 24V 55A |
27388-42010 |
from US $2.28 |
||
|
27388
|
27388
27388-58010
Cover, Alternator Brush
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27388-58010 |
— | ||
|
27410
|
27410
27410-17100
Stator Assy, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27410-17100 |
— | ||
|
27411
|
27411
27411-17030 Pulley, Alternator[01.1990 - 01.1993] 1H#..HDB3#,HZB3# 24V 55A |
27411-17030 |
from US $67.44 |
||
|
27411
|
27411
27411-17100
Pulley, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27411-17100 |
— | ||
|
27441
|
27441
27441-57030
Fan, Alternator
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27441-57030 |
— | ||
|
27700A
|
27700A
27700-58010 Regulator Assy, Generator[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30,31..4FC 24V 85A; 1HZ..HZB36 24V 85A |
27700-58010 |
US $266.45 |
||
|
27700A
|
27700A
27700-58020
Regulator Assy, Generator
[01.1990 - 01.1993] 1HZ..HZB30..WOC 24V 25A; 1H#..HDB3#,HZB3# 24V 55A |
27700-58020 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738758010
|
2738758010
27387-58010
Insulator, Terminal
|
27387-58010 |
— | ||
|
2744756130
|
2744756130
27447-56130
Clip, Alternator Cord
|
27447-56130 |
— | ||
|
9009900937
|
9009900937
90099-00937
New Genuine Part
|
90099-00937 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904568
|
9009904568
90099-04568
New Genuine Part
|
90099-04568 |
— | ||
|
9009904916
|
9009904916
90099-04916
New Genuine Part
|
90099-04916 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009905231
|
9009905231
90099-05231
New Genuine Part
|
90099-05231 |
— | ||
|
9009910141
|
9009910141
90099-10141
Bearing(For Alternator Drive End Frame)
|
90099-10141 |
— | ||
|
9009920014
|
9009920014
90099-20014
Ring, Space(For Alternator Rotor)
|
90099-20014 |
— | ||
|
9009934013
|
9009934013
90099-34013
Cap, Alternator Terminal
|
90099-34013 |
— | ||
|
9010112173
|
9010112173
90101-12173 Bolt(For Alternator) |
90101-12173 |
US $6.99 |
||
|
9011908127
|
9011908127
90119-08127 BOLT |
90119-08127 |
US $1.14 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.15 |
||
