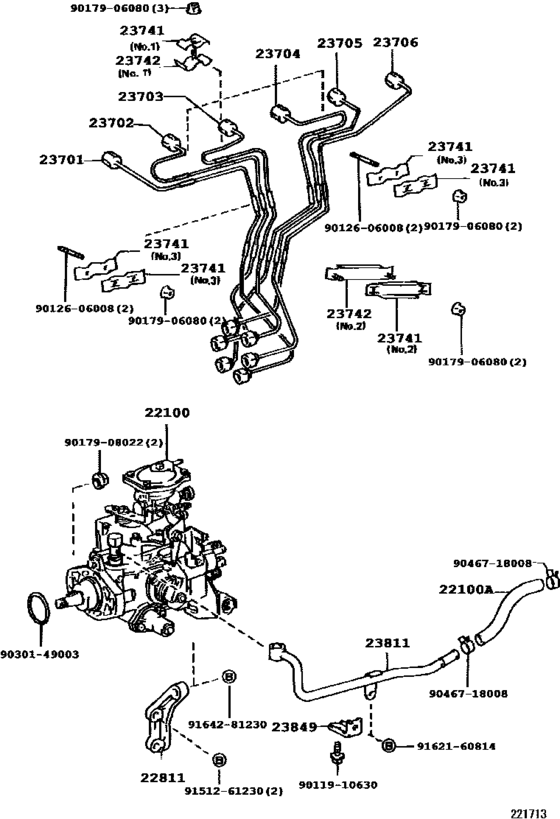

Injection Pump Assembly ([01.1993 - 05.1995] (9301-9505)1HDT) Diagram Toyota COASTER
- Year
- 1993 - 1995
- Sales region
- Japan
- Frame
- HDB51
- grade
- EX
- Roof
- HRF
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 01.1993
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Fuel Induction
- TD2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-17420 Pump Assy, Injection Or Supply[01.1993 - 05.1995] 1HDT..HDB5#..5F |
22100-17420 |
US $5,212.48 |
||
|
22100A
|
22100A
23271-17090 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[09.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
23271-17090 |
US $19.22 |
||
| replacement | |||||
|
22100A
|
22100A
23271-17091 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[09.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
23271-17091 |
US $14.56 |
||
|
22100A
|
22100A
95332-12028 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[01.1993 - 09.1993] 1H#..HDB5#,HZB4#,5# ＊Ｈ，Ｌ＝２８０，内径＝１２ |
95332-12028 |
US $13.12 |
||
|
22811
|
22811
22811-17010
Stay, Injection Pump, No.1
[01.1993 - 05.1995] 1H#..HDB5#,HZB4#,5# |
22811-17010 |
— | ||
| replacement | |||||
|
22811
|
22811
22811-17011 Stay, Injection Pump, No.1[01.1993 - 05.1995] 1H#..HDB5#,HZB4#,5# |
22811-17011 |
from US $21.49 |
||
|
23701
|
23701
23701-17020 Pipe Sub-Assy, Injection, No.1[01.1993 - 05.1995] 1HDT..HDB5# |
23701-17020 |
US $47.27 |
||
|
23702
|
23702
23702-17020 Pipe Sub-Assy, Injection, No.2[01.1993 - 05.1995] 1HDT..HDB5# |
23702-17020 |
from US $47.27 |
||
|
23703
|
23703
23703-17020 Pipe Sub-Assy, Injection, No.3[01.1993 - 05.1995] 1HDT..HDB5# |
23703-17020 |
from US $47.27 |
||
|
23704
|
23704
23704-17020 Pipe Sub-Assy, Injection, No.4[01.1993 - 05.1995] 1HDT..HDB5# |
23704-17020 |
from US $47.27 |
||
|
23705
|
23705
23705-17020 Pipe Sub-Assy, Injection, No.5[01.1993 - 05.1995] 1HDT..HDB5# |
23705-17020 |
from US $47.27 |
||
|
23706
|
23706
23706-17020 Pipe Sub-Assy, Injection, No.6[01.1993 - 05.1995] 1HDT..HDB5# |
23706-17020 |
from US $47.27 |
||
|
23741
|
23741
23741-17010 Clamp, Injection Pipe, No.1[01.1993 - 07.1999] 1HDT,1HZ..HDB5#,HZB4#,5# ＮＯ．１ |
23741-17010 |
from US $1.64 |
||
|
23741
|
23741
23741-17020 Clamp, Injection Pipe, No.1[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# ＮＯ．２ |
23741-17020 |
from US $3.59 |
||
|
23741
|
23741
23741-17030 Clamp, Injection Pipe, No.1[01.1993 - 07.1999] 1HDT,1HZ..HDB5#,HZB4#,5# ＮＯ．３ |
23741-17030 |
from US $2.28 |
||
|
23742
|
23742
23742-17010 Clamp, Injection Pipe, No.2[01.1993 - 07.1999] 1HDT,1HZ..HDB5#,HZB4#,5# ＮＯ．１ |
23742-17010 |
from US $2.24 |
||
|
23742
|
23742
23742-17020 Clamp, Injection Pipe, No.2[01.1993 - 07.1999] 1HDT,1HZ..HDB5#,HZB4#,5# ＮＯ．２ |
23742-17020 |
from US $4.21 |
||
|
23811
|
23811
23811-17030 Pipe, Fuel(For Fuel Filter To Injection Pump)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
23811-17030 |
US $53.11 |
||
|
23849
|
23849
23849-17010 Support, Fuel[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
23849-17010 |
US $3.14 |
||
|
9011910630
|
9011910630
90119-10630 New Genuine Part |
90119-10630 |
US $1.60 |
||
|
9012606008
|
9012606008
90126-06008 STUD HEX LOBULAR |
90126-06008 |
from US $1.37 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.51 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.36 |
||
|
9046718008
|
9046718008
90467-18008 Clip(For Water By-Pass Hose No.2) |
90467-18008 |
from US $1.19 |
||
|
9151261230
|
9151261230
91512-61230 BOLTFLANGE |
91512-61230 |
US $4.16 |
||
|
9162160814
|
9162160814
91621-60814
Bolt (For Transmission Control Cable Bracket)
|
91621-60814 |
— | ||
| replacement | |||||
|
9162160814
|
9162160814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
|
9164281230
|
9164281230
91642-81230
BOLT WWASHER
|
91642-81230 |
— | ||
