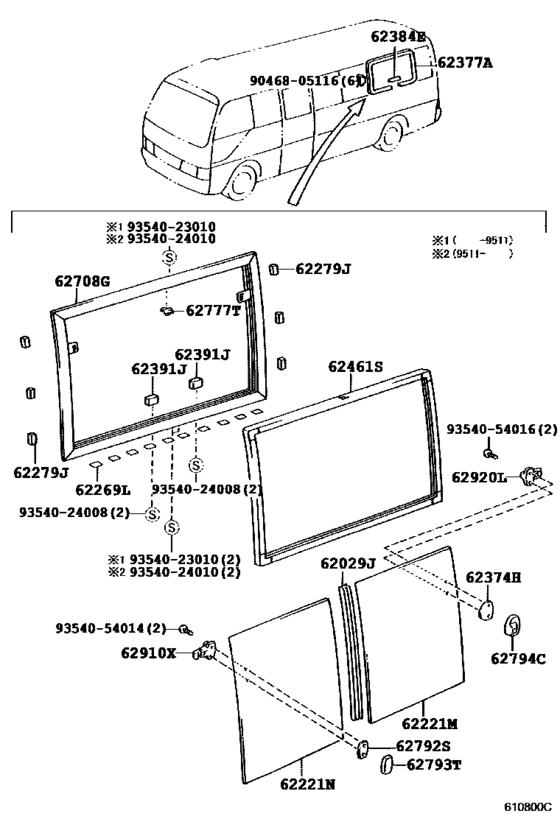

Side Window ([01.1993 - 08.2004] (9301-0408)HDB51..EX ; (9907-0408)HDB50..GX) Diagram Toyota COASTER
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- HDB51
- grade
- EX
- Roof
- HRF
- ENGINE
- 1HDFT
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 05.1997
- To
- 07.1999
- Gear Shift Type
- 6F
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- TD4
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62029J
|
62029J
62029-36041 Frame Sub-Assy, Side Window, Center Lh[10.1996 - 01.1998] BB4#,5#,HDB5#,HZB4#,5#..DX,EX,GX,LX |
62029-36041 |
US $141.23 |
||
| replacement | |||||
|
62029J
|
62029J
62029-36044 Frame Sub-Assy, Side Window, Center Lh[10.1996 - 01.1998] BB4#,5#,HDB5#,HZB4#,5#..DX,EX,GX,LX |
62029-36044 |
US $88.74 |
||
|
62029J
|
62029J
62029-36042 Frame Sub-Assy, Side Window, Center Lh[01.1998 - 02.1999] BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
62029-36042 |
US $142.69 |
||
| replacement | |||||
|
62029J
|
62029J
62029-36044 Frame Sub-Assy, Side Window, Center Lh[01.1998 - 02.1999] BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
62029-36044 |
US $88.74 |
||
|
62029J
|
62029J
62029-36043 Frame Sub-Assy, Side Window, Center Lh[02.1999 - 07.1999] BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
62029-36043 |
US $142.69 |
||
| replacement | |||||
|
62029J
|
62029J
62029-36044 Frame Sub-Assy, Side Window, Center Lh[02.1999 - 07.1999] BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
62029-36044 |
US $88.74 |
||
|
62221M
|
62221M
62211-36100 Glass, Side Window, Front Rh[05.1997 - 07.1999] BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) ＊ＴＥＭ，厚さ＝５．０，ブロンズ |
62211-36100 |
US $487.76 |
||
|
62221N
|
62221N
62221-36080 Glass, Side Window, Rear Rh[05.1997 - 07.1999] BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) ＊ＴＥＭ，厚さ＝５．０，ブロンズ |
62221-36080 |
US $487.76 |
||
|
62269L
|
62269L
62269-90K01 Film, Side Window Frame[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
62269-90K01 |
US $1.92 |
||
|
62279J
|
62279J
62279-36010 Spacer, Side Window Frame, Upper[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
62279-36010 |
from US $1.48 |
||
|
62374H
|
62374H
62792-95A00 Packing, Side Rear Window, Rh[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
62792-95A00 |
from US $1.58 |
||
|
62377A
|
62377A
62376-36010-A1 Clip, Front Door Window[05.1995 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
62376-36010-A1 |
US $87.36 |
||
| replacement | |||||
|
62377A
|
62377A
62376-36010-B0 Clip, Front Door Window[05.1995 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
62376-36010-B0 |
US $76.35 |
||
|
62384E
|
62384E
62384-36010-A1 Cap, Side Window[05.1995 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) IVORY,TRIM4# |
62384-36010-A1 |
US $0.99 |
||
|
62391J
|
62391J
62391-36010 Stopper, Side Window, No.1 Lh[01.1993 - 07.1999] HDB51..EX..CBU;BB40,HZB40,50..39S,49S |
62391-36010 |
US $3.52 |
||
|
62461S
|
62461S
62461-36060 Run, Rear Side Window, Lh[01.1993 - 02.1999] HDB51..EX..CBU |
62461-36060 |
US $144.14 |
||
| replacement | |||||
|
62461S
|
62461S
62461-36062 Run, Rear Side Window, Lh[01.1993 - 02.1999] HDB51..EX..CBU |
62461-36062 |
US $84.45 |
||
|
62461S
|
62461S
62461-36061 Run, Rear Side Window, Lh[02.1999 - 07.1999] HDB51..EX..CBU ｱﾘ(ﾌｧｲﾝﾋﾞｭｰｼﾖｳ) |
62461-36061 |
US $123.76 |
||
| replacement | |||||
|
62461S
|
62461S
62461-36062 Run, Rear Side Window, Lh[02.1999 - 07.1999] HDB51..EX..CBU ｱﾘ(ﾌｧｲﾝﾋﾞｭｰｼﾖｳ) |
62461-36062 |
US $84.45 |
||
|
62708G
|
62708G
62706-36021 Frame Sub-Assy, Side Rear Window, Lh[10.1996 - 07.1999] HDB51..EX..CBU |
62706-36021 |
US $503.78 |
||
| replacement | |||||
|
62708G
|
62708G
62706-36022 Frame Sub-Assy, Side Rear Window, Lh[10.1996 - 07.1999] HDB51..EX..CBU |
62706-36022 |
US $416.42 |
||
|
62777T
|
62777T
62777-36011 Cap, Side Window Center Sash[10.1996 - 02.1999] BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
62777-36011 |
US $4.66 |
||
| replacement | |||||
|
62777T
|
62777T
62777-36012 Cap, Side Window Center Sash[10.1996 - 02.1999] BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
62777-36012 |
US $3.20 |
||
|
62777T
|
62777T
62777-36012 Cap, Side Window Center Sash[02.1999 - 07.1999] BB4#,58,HDB5#,HZB4#,5#..(DX,EX,GX,LX)..(CBU,IV5) |
62777-36012 |
US $3.20 |
||
|
62792S
|
62792S
62792-95A00 Packing, Side Rear Window, Rh[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
62792-95A00 |
from US $1.58 |
||
|
62793T
|
62793T
62793-95J00 Retainer, Side Window Lock, No.1[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
62793-95J00 |
from US $3.53 |
||
|
62794C
|
62794C
62793-36010 Retainer, Side Window Lock, Lh[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
62793-36010 |
from US $9.93 |
||
|
62910X
|
62910X
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
62910-95702 |
from US $10.45 |
||
|
62920L
|
62920L
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[01.1993 - 07.1999] BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
62910-95702 |
from US $10.45 |
||
|
9046805116
|
9046805116
90468-05116 CLIP |
90468-05116 |
from US $1.15 |
||
|
9354023010
|
9354023010
93540-23010
SCREW
|
93540-23010 |
— | ||
| replacement | |||||
|
9354023010
|
9354023010
93540-13010 SCREW |
93540-13010 |
from US $2.33 |
||
|
9354024008
|
9354024008
93540-24008 SCREW |
93540-24008 |
US $1.44 |
||
|
9354024010
|
9354024010
93540-24010 Screw, Roof Headlining Trim |
93540-24010 |
US $2.56 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.05 |
||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
||
