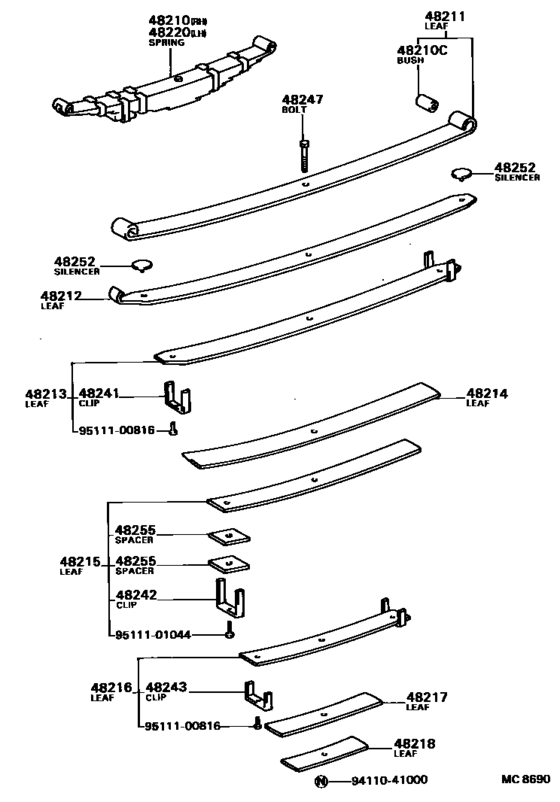

Rear Spring & Shock Absorber ([05.1982 - ] (8205- )RB20..DLX..WC) Diagram Toyota COASTER
- Year
- 1982 - 1993
- Sales region
- Europe
- Frame
- RB20
- grade
- DLX
- Roof
- HRF
- ENGINE
- 22R
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 05.1982
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-36650 Spring Assy, Rear RhREAR RH [05.1982 - 01.1993] RB20..LHD..DLX..WC |
48210-36650 |
US $1,192.46 |
||
|
48210C
|
48210C
90389-16005 Bush(For Rear Spring Leaf)[05.1982 - 01.1993] HZB30..ARL;BB20,21,22,30,FB30,HB3#,HDB30,RB20 FR |
90389-16005 |
from US $35.78 |
||
|
48210C
|
48210C
90389-16006
Bush(For Rear Spring Leaf)
[05.1982 - 09.1984] BB20,30,RB20 RR |
90389-16006 |
— | ||
|
48211
|
48211
48201-36490 Leaf, Rear Spring, No.1[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) LH |
48201-36490 |
from US $290.47 |
||
|
48211
|
48211
48201-36500 Leaf, Rear Spring, No.1[05.1982 - 02.1988] BB20,21,RB20..LHD..(DLX,STD) RH |
48201-36500 |
US $358.18 |
||
|
48211
|
48211
48201-36650 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [02.1988 - 01.1993] RB20..RHD..WC LH; RB20..LHD..DLX..WC RH |
48201-36650 |
US $353.81 |
||
|
48212
|
48212
48212-36490 Leaf, Rear Spring, No.2[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) LH |
48212-36490 |
US $218.40 |
||
|
48212
|
48212
48212-36500 Leaf, Rear Spring, No.2[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) RH |
48212-36500 |
US $218.40 |
||
|
48213
|
48213
48202-36490 Leaf, Rear Spring, No.3[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) LH |
48202-36490 |
US $165.98 |
||
|
48213
|
48213
48202-36500 Leaf, Rear Spring, No.3[05.1982 - 02.1988] BB20,21,RB20..LHD..(DLX,STD) RH |
48202-36500 |
US $165.98 |
||
|
48213
|
48213
48202-36650 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [02.1988 - 01.1993] RB20..RHD..WC LH; RB20..LHD..DLX..WC RH |
48202-36650 |
US $237.33 |
||
|
48214
|
48214
48214-36490 Leaf, Rear Spring, No.4[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) LH |
48214-36490 |
US $116.48 |
||
|
48214
|
48214
48214-36500 Leaf, Rear Spring, No.4[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) RH |
48214-36500 |
US $116.48 |
||
|
48215
|
48215
48204-36640 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [05.1982 - 01.1993] RB20..LHD..DLX..WC LH; RB20..RHD..WC RH |
48204-36640 |
US $190.74 |
||
|
48215
|
48215
48204-36650 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [05.1982 - 01.1993] RB20..RHD..WC LH; RB20..LHD..DLX..WC RH |
48204-36650 |
US $190.74 |
||
|
48216
|
48216
48203-36490 Leaf, Rear Spring, No.6[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) LH |
48203-36490 |
US $82.99 |
||
|
48216
|
48216
48203-36500 Leaf, Rear Spring, No.6[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) RH |
48203-36500 |
US $82.99 |
||
|
48217
|
48217
48217-36490 Leaf, Rear Spring, No.7[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) LH |
48217-36490 |
US $51.25 |
||
|
48217
|
48217
48217-36500 Leaf, Rear Spring, No.7[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) RH |
48217-36500 |
US $51.25 |
||
|
48218
|
48218
48218-36490 Leaf, Rear Spring, No.8[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) LH |
48218-36490 |
US $31.16 |
||
|
48218
|
48218
48218-36500 Leaf, Rear Spring, No.8[05.1982 - 01.1993] BB20,21,RB20..LHD..(DLX,STD) RH |
48218-36500 |
US $31.16 |
||
|
48220
|
48220
48210-36640 Spring Assy, Rear RhREAR RH [05.1982 - 01.1993] RB20..LHD..DLX..WC |
48210-36640 |
US $1,192.46 |
||
|
48241
|
48241
48241-36500 Clip, Rear Spring, No.1[05.1982 - 10.1985] BB20,30,RB20..DLX,STD |
48241-36500 |
US $7.72 |
||
|
48242
|
48242
48241-36640 Clip, Rear Spring, No.2REAR SPRING, NO.2 [05.1982 - 01.1993] RB20..DLX..WC |
48241-36640 |
US $9.46 |
||
|
48243
|
48243
48242-36500 Clip, Rear Spring, No.2[05.1982 - 01.1993] RB20..DLX..WC |
48242-36500 |
US $7.72 |
||
|
48247
|
48247
48247-36550 Bolt, Rear Spring, Center[05.1982 - 01.1993] RB20..DLX..WC |
48247-36550 |
US $4.80 |
||
|
48252
|
48252
48252-36500 Silencer, Rear Spring[05.1982 - 01.1993] BB20,21,23,RB20 |
48252-36500 |
US $8.11 |
||
|
48255
|
48255
48255-36530 Mass Damper, Rear Spring, No.1[05.1982 - 01.1993] RB20..DLX..WC |
48255-36530 |
US $22.13 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9511100816
|
9511100816
95111-00816 New Genuine Part |
95111-00816 |
US $0.87 |
||
|
9511101044
|
9511101044
95111-01044 New Genuine Part |
95111-01044 |
US $1.16 |
