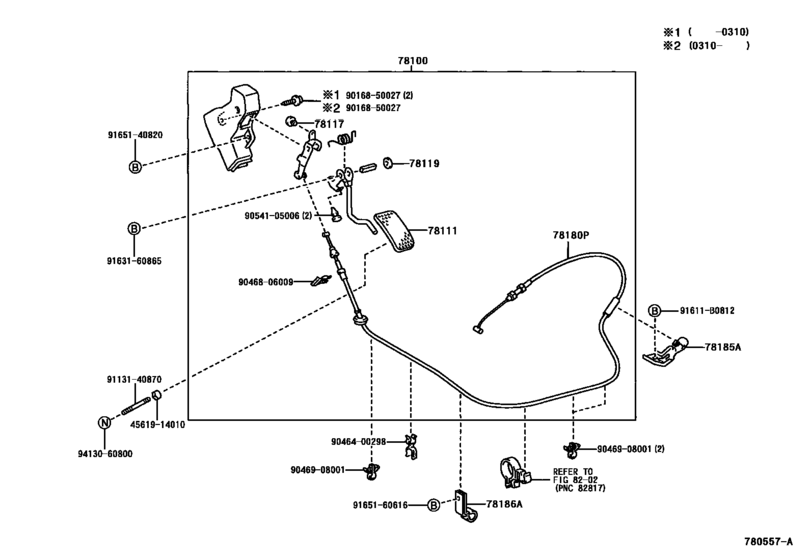

Accelerator Link ([12.2000 - 01.2007] (0012-0701)RZB54) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- RZB54
- grade
- STD
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-36230
Link Assy, Accelerator
[10.2003 - 01.2007] RZB54 |
78100-36230 |
— | ||
|
78111
|
78111
78111-95110 Pedal, Accelerator[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
78111-95110 |
from US $7.52 |
||
|
78117
|
78117
90541-06036 Cushion, No.1(For Clutch Pedal)[10.2003 - 01.2007] BB5#,RZB5# |
90541-06036 |
from US $0.98 |
||
| replacement | |||||
|
78117
|
78117
90541060361
CUSHION
[10.2003 - 01.2007] BB5#,RZB5# |
90541060361 |
— | ||
|
78119
|
78119
78119-95J00 Stopper, Accelerator Pedal Rod[10.2003 - 01.2007] BB5#,RZB5#..20S,23S,24S |
78119-95J00 |
US $2.62 |
||
| replacement | |||||
|
78119
|
78119
78119-37010 Stopper, Accelerator Pedal Rod[10.2003 - 01.2007] BB5#,RZB5#..20S,23S,24S |
78119-37010 |
US $0.58 |
||
|
78180P
|
78180P
78180-36240
Cable Assy, Accelerator Control
[10.2003 - 01.2007] RZB54..20S,23S |
78180-36240 |
— | ||
|
78185A
|
78185A
78185-36070 Clamp, Accelerator Control Cable, No.2ACCELERATOR CONTROL CABLE, NO.2 [10.2003 - 01.2007] RZB5#..20S,23S,24S |
78185-36070 |
US $14.71 |
||
|
78186A
|
78186A
78186-36040 Clamp, Accelerator Control Cable, No.3ACCELERATOR CONTROL CABLE, NO.3 [10.2003 - 01.2007] RZB54..20S,23S |
78186-36040 |
US $13.54 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
4561914010
|
4561914010
45619-14010 Cover, Knuckle Stopper |
45619-14010 |
US $8.64 |
||
|
9016850027
|
9016850027
90168-50027 New Genuine Part |
90168-50027 |
US $0.93 |
||
|
9046400298
|
9046400298
90464-00298 Clamp, No.2 (For Transfer Vacuum) |
90464-00298 |
US $2.62 |
||
|
9046806009
|
9046806009
90468-06009 New Genuine Part |
90468-06009 |
US $4.37 |
||
|
9046908001
|
9046908001
90469-08001 Clamp, Jack Carrier |
90469-08001 |
US $1.28 |
||
|
9054105006
|
9054105006
90541-05006 Cushion (For Accelerator Rod) |
90541-05006 |
US $1.16 |
||
|
9113140870
|
9113140870
91131-40870 Bolt(For Clutch Master Cylinder Setting) |
91131-40870 |
US $0.87 |
||
|
9163160865
|
9163160865
91631-60865 BOLT WWASHER |
91631-60865 |
from US $0.98 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
