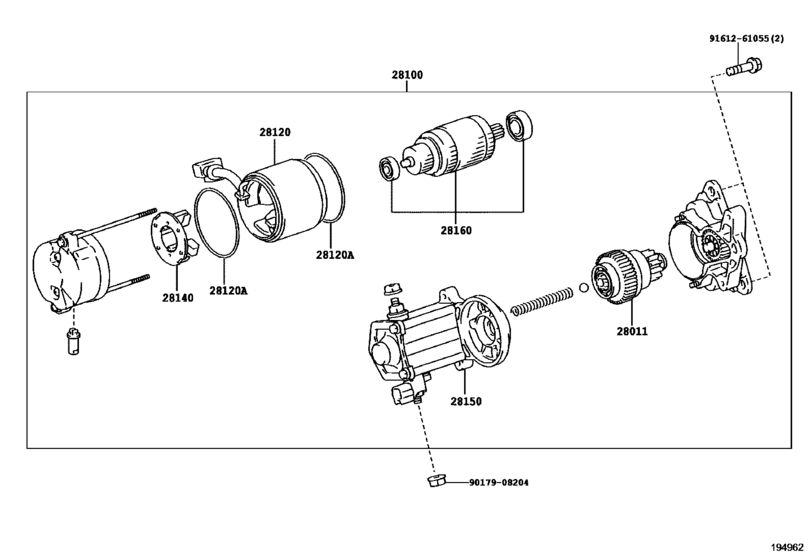

Starter ([01.2017 - ] 12V 1.4KW (1701- )2TRFE) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- TRB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-76070 Clutch Sub-Assy, Starter[01.2017 -] 2TRFE..TRB60,70 |
28011-76070 |
from US $50.80 |
||
|
28100
|
28100
28100-75091 Starter Assy[01.2017 -] 2TRFE..TRB60,70 12V 1.4KW |
28100-75091 |
from US $829.18 |
||
|
28120
|
28120
28120-66040
Yoke Assy, Starter
[01.2017 -] 2TRFE..TRB60,70 |
28120-66040 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[01.2017 -] 2TRFE..TRB60,70 |
90099-14064 |
from US $3.67 |
||
|
28140
|
28140
28140-76070 Holder Assy, Starter Brush[01.2017 -] 2TRFE..TRB60,70 |
28140-76070 |
from US $17.65 |
||
|
28150
|
28150
28150-75130 Switch Assy, Magnet Starter[01.2017 -] 2TRFE..TRB60,70 |
28150-75130 |
US $139.78 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[01.2017 -] 2TRFE..TRB60,70 |
28160-74070 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261055
|
9161261055
91612-61055 Bolt (For Transfer Case) |
91612-61055 |
US $2.08 |
||
