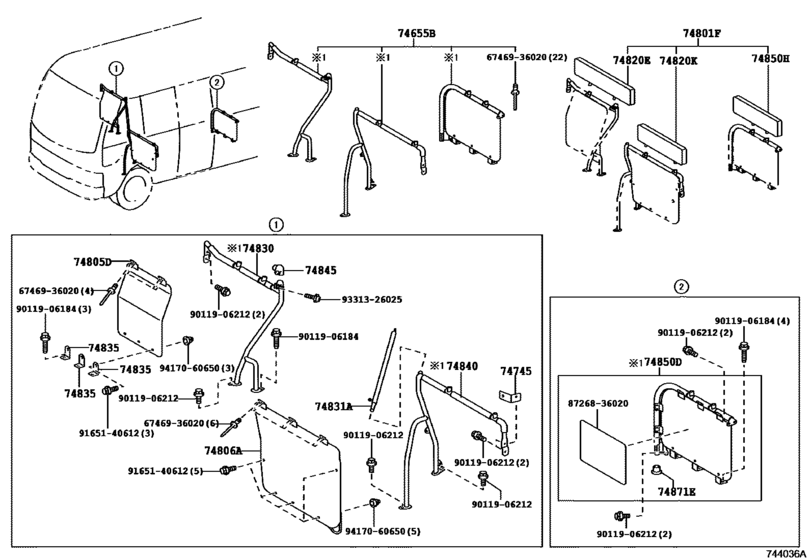

Protector Pipe, Roll Bar & Handrail ([09.2014 - 01.2015] ﾖｳｼﾞﾊﾞｽ(DOPﾌﾟﾛﾃｸﾀﾂｷ) (1409-1501)STD) Diagram Toyota COASTER
- Year
- 2004 - 2016
- Sales region
- Japan
- Frame
- XZB40
- grade
- STD
- Roof
- SRF
- ENGINE
- N04C
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 08.2004
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74655B
|
74655B
74600-36010-B0 Bar, Hand Rail[09.2014 - 01.2015] XZB40,50..STD ｱﾘ(ﾌﾟﾛﾃｸﾀ);ﾖｳｼﾞﾖｳﾊﾞｽ,MD.CHARCOAL,TRIM1# |
74600-36010-B0 |
US $611.52 |
||
|
74745
|
74745
74745-36040-B0 Bracket, Hand Grip To Net, No.2[08.2004 - 01.2015] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74745-36040-B0 |
US $3.93 |
||
|
74801F
|
74801F
74801-36030-E0 Trim Sub-Assy, Separator, Upper Front[09.2014 - 01.2015] XZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ORANGE,TRIM1# |
74801-36030-E0 |
US $291.20 |
||
|
74805D
|
74805D
74805-36040-B0 Net Sub-Assy, Front Protector, Rh[08.2004 - 01.2015] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74805-36040-B0 |
US $163.07 |
||
|
74805D
|
74805D
74805-36070-B0 Net Sub-Assy, Front Protector, Rh[02.2016 - 12.2016] XZB40,50..STD MD.CHARCOAL,TRIM1# |
74805-36070-B0 |
US $163.07 |
||
|
74806A
|
74806A
74806-36051-B0 Net Sub-Assy, Front Protector, Lh[08.2004 - 04.2005] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74806-36051-B0 |
US $326.14 |
||
| replacement | |||||
|
74806A
|
74806A
74806-36052-B0 Net Sub-Assy, Front Protector, Lh[08.2004 - 04.2005] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74806-36052-B0 |
US $224.22 |
||
|
74806A
|
74806A
74806-36052-B0 Net Sub-Assy, Front Protector, Lh[05.2005 - 01.2015] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74806-36052-B0 |
US $224.22 |
||
|
74806A
|
74806A
74806-36090-B0 Net Sub-Assy, Front Protector, Lh[02.2016 - 12.2016] XZB40,50..STD MD.CHARCOAL,TRIM1# |
74806-36090-B0 |
US $224.22 |
||
|
74820E
|
74820E
74810-36080-E0 Protector Assy, Front Rh[09.2014 - 01.2015] XZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ORANGE,TRIM1# |
74810-36080-E0 |
US $163.07 |
||
|
74820K
|
74820K
74820-36040-E0 Protector Assy, Front Lh[09.2014 - 01.2015] XZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ORANGE,TRIM1# |
74820-36040-E0 |
US $209.66 |
||
|
74830
|
74830
74830-36030-B0 Pipe Assy, Front Protector, Rh[08.2004 - 01.2015] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74830-36030-B0 |
US $286.83 |
||
|
74830
|
74830
74830-36070-B0 Pipe Assy, Front Protector, Rh[09.2014 - 01.2015] XZB40,50..STD ｱﾘ(ﾌﾟﾛﾃｸﾀ);ﾖｳｼﾞﾖｳﾊﾞｽ,MD.CHARCOAL,TRIM1# |
74830-36070-B0 |
US $165.98 |
||
|
74831A
|
74831A
74831-36020 Pipe, Front Protector, Center[08.2004 - 01.2015] XZB40,50..STD..(5F,6FC) |
74831-36020 |
US $58.09 |
||
|
74835
|
74835
74835-36011-B0 Bracket, Front Protector Net, Lower Rh[08.2004 - 01.2015] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74835-36011-B0 |
US $2.62 |
||
|
74840
|
74840
74840-36031-B0 Pipe Assy, Front Protector, Lh[08.2004 - 01.2015] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74840-36031-B0 |
US $326.14 |
||
|
74840
|
74840
74840-36050-B0 Pipe Assy, Front Protector, Lh[09.2014 - 01.2015] XZB40,50..STD ｱﾘ(ﾌﾟﾛﾃｸﾀ);ﾖｳｼﾞﾖｳﾊﾞｽ,MD.CHARCOAL,TRIM1# |
74840-36050-B0 |
US $200.93 |
||
|
74845
|
74845
74845-36020-B0 Cover, Front Protector Pipe Horizontal, Rh[08.2004 - 01.2015] BZB40,50,XZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,MD.CHARCOAL,TRIM1# |
74845-36020-B0 |
US $7.43 |
||
|
74850D
|
74850D
74850-36030-B0 Protector Assy, Center[08.2004 - 08.2007] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74850-36030-B0 |
US $643.55 |
||
|
74850D
|
74850D
74850-36040-B0 Protector Assy, Center[08.2007 - 09.2012] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74850-36040-B0 |
US $541.63 |
||
| replacement | |||||
|
74850D
|
74850D
74850-36050-B0 Protector Assy, Center[08.2007 - 09.2012] BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
74850-36050-B0 |
US $423.70 |
||
|
74850D
|
74850D
74850-36050-B0 Protector Assy, Center[09.2012 - 01.2015] XZB40,50..STD MD.CHARCOAL,TRIM1# |
74850-36050-B0 |
US $423.70 |
||
|
74850D
|
74850D
74850-36070-B0 Protector Assy, Center[09.2014 - 01.2015] XZB40,50..STD ｱﾘ(ﾌﾟﾛﾃｸﾀ);ﾖｳｼﾞﾖｳﾊﾞｽ,MD.CHARCOAL,TRIM1# |
74850-36070-B0 |
US $266.45 |
||
|
74850H
|
74850H
74850-36060-E0 Protector Assy, Center[09.2014 - 01.2015] XZB40,50..STD ﾖｳｼﾞﾖｳﾊﾞｽ,ORANGE,TRIM1# |
74850-36060-E0 |
US $310.13 |
||
|
74871E
|
74871E
74871-38010 Protector, Hand Grip Pipe[08.2004 - 01.2015] XZB40,50..STD..(5F,6FC) |
74871-38010 |
US $3.64 |
||
|
6746936020
|
6746936020
67469-36020 Protector, Front Door Guide |
67469-36020 |
US $1.60 |
||
|
8726836020
|
8726836020
87268-36020 Cock, Water Hose Drain(for Rear Heater) |
87268-36020 |
US $23.73 |
||
|
9011906184
|
9011906184
90119-06184 New Genuine Part |
90119-06184 |
US $0.87 |
||
|
9011906212
|
9011906212
90119-06212 New Genuine Part |
90119-06212 |
US $0.87 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331326025
|
9331326025
93313-26025 New Genuine Part |
93313-26025 |
US $1.02 |
||
|
9417060650
|
9417060650
94170-60650 New Genuine Part |
94170-60650 |
US $0.69 |
||
