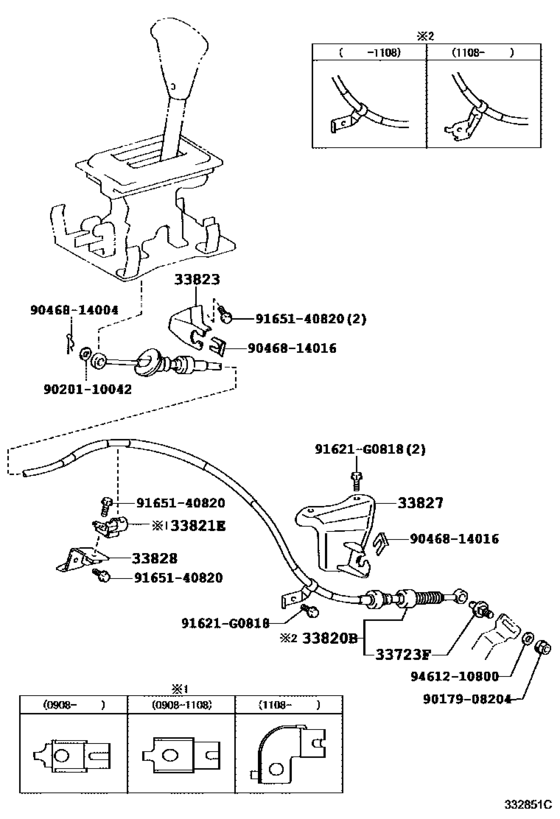

Shift Lever & Retainer ([12.2005 - ] (0512- )6FC) Diagram Toyota COASTER
- Year
- 2007 - 2016
- Sales region
- Japan
- Frame
- XZB40
- grade
- STD
- Roof
- SRF
- ENGINE
- N04C
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 08.2007
- To
- 12.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33723F
|
33723F
33723-28010 Swivel, Connecting Rod (For Column Shift)[08.2004 - 01.2015] XZB4#,50,56..6FC;XZB51..EX..6FC..CBU |
33723-28010 |
US $2.62 |
||
|
33820B
|
33820B
33820-36231 Cable Assy, Transmission Control[08.2007 - 07.2009] XZB4#,5#..6FC |
33820-36231 |
US $216.94 |
||
| replacement | |||||
|
33820B
|
33820B
33820-36232 Cable Assy, Transmission Control[08.2007 - 07.2009] XZB4#,5#..6FC |
33820-36232 |
US $215.49 |
||
|
33820B
|
33820B
33820-36232 Cable Assy, Transmission Control[08.2009 - 08.2011] XZB4#,5#..6FC |
33820-36232 |
US $215.49 |
||
|
33820B
|
33820B
33820-36240 Cable Assy, Transmission Control[08.2011 - 01.2015] XZB4#,5#..6FC |
33820-36240 |
US $161.62 |
||
|
33821E
|
33821E
33829-36120 Clamp, No.1 (For Transmission Control Cable)[08.2004 - 08.2009] XZB4#,5#..6FC |
33829-36120 |
US $4.22 |
||
|
33821E
|
33821E
33829-36230 Clamp, No.1 (For Transmission Control Cable)NO.1 (FOR TRANSMISSION CONTROL CABLE) [08.2009 - 08.2011] XZB4#,5#..6FC |
33829-36230 |
US $3.35 |
||
|
33821E
|
33821E
33829-36240 Clamp, No.1 (For Transmission Control Cable)[08.2011 - 01.2015] XZB4#,5#..6FC |
33829-36240 |
US $3.79 |
||
|
33823
|
33823
33823-36140 Bracket, Transmission Control Cable, No.1[08.2004 - 01.2015] XZB4#,50,56..6FC;XZB51..EX..6FC..CBU |
33823-36140 |
US $12.81 |
||
|
33827
|
33827
33804-36140 Bracket, Transmission Control Cable, No.3[12.2005 - 01.2015] XZB4#,50,56..6FC;XZB51..EX..6FC..CBU |
33804-36140 |
US $39.75 |
||
|
33828
|
33828
33828-36070 Bracket, Transmission Control Cable, No.4[08.2004 - 08.2011] XZB40,50..6FC;XZB51..6FC..CBU;BZB40,50,XZB46,56..(09S,39S,49S)..(5F,6FC) |
33828-36070 |
US $8.15 |
||
|
33828
|
33828
33828-36080 Bracket, Transmission Control Cable, No.4TRANSMISSION CONTROL CABLE, NO.4 [08.2011 - 01.2015] XZB4#,5# |
33828-36080 |
US $8.56 |
||
|
91621G0818
|
91621G0818
91621-G0818 Bolt(For Automatic Transmission Case Protector) |
91621-G0818 |
US $1.02 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
from US $1.44 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
US $1.28 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.86 |
||
