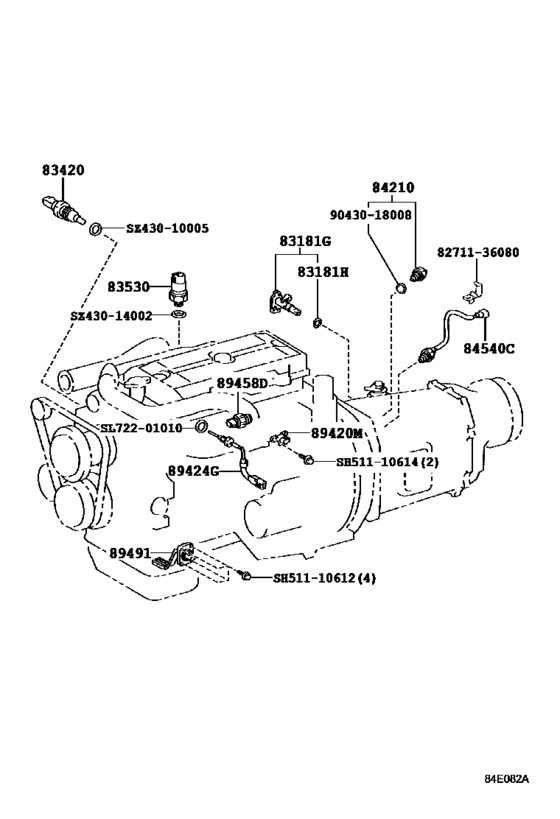

Switch & Relay & Computer ([01.2013 - ] ENGINE & TRANSMISSION (1301- )XZB53) Diagram Toyota COASTER
- Year
- 2014 - 2015
- Sales region
- General
- Frame
- XZB53
- grade
- STD
- ENGINE
- N041
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 03.2014
- To
- 07.2015
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-36010 Sensor, Speedometer[01.2013 - 07.2015] TRB53,XZB53 |
83181-36010 |
from US $151.20 |
||
|
83181H
|
83181H
90301-18004 Ring, O (For Atm Speedometer Driven Hole Cover)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90301-18004 |
from US $2.32 |
||
|
83420
|
83420
S8342-01250 Gage Assy, Water Temperature Sender[03.2014 - 07.2015] XZB53 |
S8342-01250 |
from US $32.14 |
||
|
83530
|
83530
83530-E0220
Switch Assy, Oil Pressure (For Engine)
[03.2014 - 07.2015] XZB53 |
83530-E0220 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-E0250 SWITCH ASSY OIL[03.2014 - 07.2015] XZB53 |
83530-E0250 |
US $29.18 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
84210-52050 |
from US $20.67 |
||
|
84540C
|
84540C
84540-36090 Switch Assy, Neutral (For Exhaust Brake)[03.2014 - 07.2015] XZB53 |
84540-36090 |
from US $108.33 |
||
|
89420M
|
89420M
89421-E0050 Sensor Assy, Air Pressure[03.2014 - 07.2015] XZB53 |
89421-E0050 |
US $75.24 |
||
|
89424G
|
89424G
89424-E0040 Sensor,inlet Air Temperature[03.2014 - 07.2015] XZB53 |
89424-E0040 |
US $80.90 |
||
|
89458D
|
89458D
89458-E0030 Sensor, Fuel Pressure[03.2014 - 07.2015] XZB53 |
89458-E0030 |
US $155.52 |
||
|
89491
|
89491
S8346-01580 Sensor, Engine Oil Level[03.2014 - 07.2015] XZB53 |
S8346-01580 |
US $204.48 |
||
|
8271136080
|
8271136080
82711-36080
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-36080 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
SH51110612
|
SH51110612
SH511-10612 New Genuine Part |
SH511-10612 |
US $6.40 |
||
|
SH51110614
|
SH51110614
SH511-10614
New Genuine Part
|
SH511-10614 |
— | ||
|
SL72201010
|
SL72201010
SL722-01010 Gasket(For Turbo Oil Inlet Pipe) |
SL722-01010 |
from US $0.48 |
||
|
SZ43010005
|
SZ43010005
SZ430-10005 NR WASHERSOFT 300 500S |
SZ430-10005 |
US $3.36 |
||
|
SZ43014002
|
SZ43014002
SZ430-14002 New Genuine Part |
SZ430-14002 |
US $4.32 |
||
