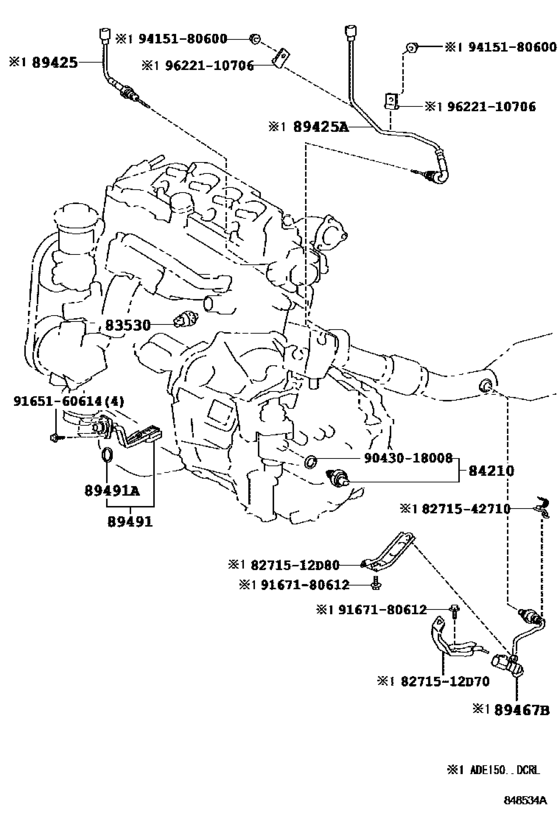

Switch & Relay & Computer ([11.2006 - 01.2009] ENGINE & TRANSMISSION (0611-0901)ADE150) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[11.2006 - 01.2009] ADE150;NDE150..5F,5FS DENSO |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[11.2006 - 01.2009] ADE150;NDE150..5F,5FS DENSO |
83530-60010 |
from US $24.20 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[11.2006 - 01.2009] ADE150;NDE150..5F,5FS YAZAKI |
83530-60010 |
from US $24.20 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[11.2006 - 01.2009] ADE150;NDE150,ZRE151..5FS |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[11.2006 - 01.2009] ADE150;NDE150,ZRE151..5FS |
84210-52050 |
from US $20.67 |
||
|
89491
|
89491
89491-20120
Sensor, Engine Oil Level
[11.2006 - 01.2009] ADE150 |
89491-20120 |
— | ||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[11.2006 - 01.2009] ADE150 |
89493-60010 |
from US $2.24 |
||
|
8271512D70
|
8271512D70
82715-12D70
Bracket,wiring Harness Clamp
|
82715-12D70 |
— | ||
|
8271512D80
|
8271512D80
82715-12D80
Bracket,wiring Harness Clamp
|
82715-12D80 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9622110706
|
9622110706
96221-10706 Clamp, Brake Tube, No.8 |
96221-10706 |
US $5.28 |
||
