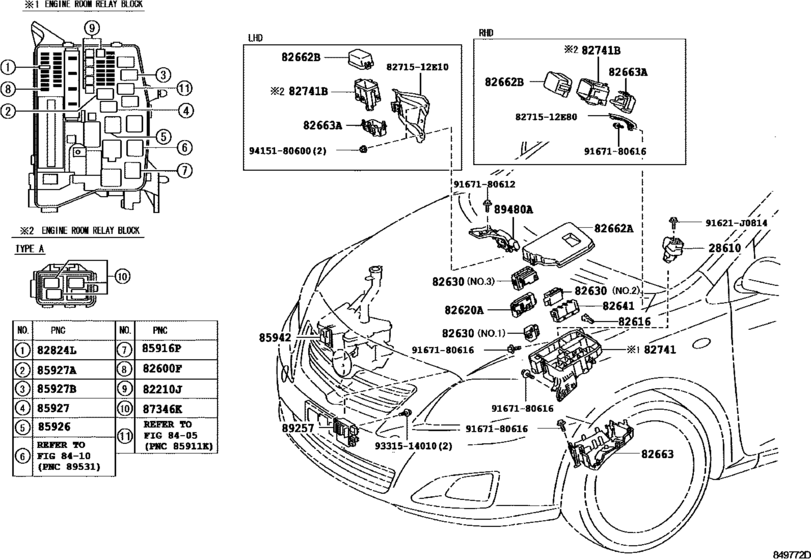

Switch & Relay & Computer ([02.2008 - 03.2009] ENGINE ROOM (0802-0902)NDE150,ZRE151,ZZE150 ; (0802-0903)ADE 150) Diagram Toyota COROLLA
- Year
- 2008 - 2013
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA (S.AFRICA)
- From
- 02.2008
- To
- 06.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610
|
28610
28601-26030
Glow Sub-Assy, Plug Relay Set
[02.2008 - 03.2009] 1ADFTV..ADE150 |
28601-26030 |
— | ||
|
82210J
|
82210J
90982-08294 Fusible Link[02.2008 - 03.2009] ADE150 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[02.2008 - 03.2009] ADE150 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[02.2008 - 03.2009] ADE150 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[02.2008 - 03.2009] ADE150 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[02.2008 - 03.2009] ADE150 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[02.2008 - 03.2009] ADE150 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[02.2008 - 03.2009] ADE150 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[02.2008 - 03.2009] ADE150 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[02.2008 - 03.2009] ADE150 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[02.2008 - 03.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-12270 Block Assy, Fusible Link[02.2008 - 03.2009] ADE150;NDE150..5F,5FS |
82620-12270 |
US $51.54 |
||
|
82630
|
82630
82631-02010
Holder Assy, Fuse
[02.2008 - 03.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS NO.1 |
82631-02010 |
— | ||
|
82630
|
82630
82631-02020
Holder Assy, Fuse
[02.2008 - 03.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS NO.2 |
82631-02020 |
— | ||
|
82630
|
82630
82631-02030
Holder Assy, Fuse
[02.2008 - 03.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS NO.3 |
82631-02030 |
— | ||
|
82641
|
82641
82641-47020 Relay, Integration No.1[02.2008 - 03.2009] ADE150,ZZE150;ZRE151..5F,5FS |
82641-47020 |
from US $79.92 |
||
|
82662A
|
82662A
82662-12300
Cover, Relay Block, Upper, No.1
[02.2008 - 03.2009] ADE150 |
82662-12300 |
— | ||
|
82662A
|
82662A
82662-12310
Cover, Relay Block, Upper, No.1
[02.2008 - 03.2009] ADE150..LHD COLD AREA SPEC&VSC-WITH(CANCEL SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&S TARTING SYSTEM-PUSH BUTTON; ADE150..LHD VSC-WITH(CANCEL SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&STARTING SYSTEM- PUSH BUTTON |
82662-12310 |
— | ||
|
82662A
|
82662A
82662-12590
Cover, Relay Block, Upper, No.1
[03.2009 - 06.2010] ADE150 |
82662-12590 |
— | ||
|
82662A
|
82662A
82662-12600
Cover, Relay Block, Upper, No.1
[03.2009 - 06.2010] ADE150..LHD COLD AREA SPEC&VSC-WITH(CANCEL SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&S TARTING SYSTEM-PUSH BUTTON; ADE150..LHD VSC-WITH(CANCEL SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&STARTING SYSTEM- PUSH BUTTON |
82662-12600 |
— | ||
|
82662B
|
82662B
82662-12280 Cover, Relay Block, Upper, No.2[02.2008 - 03.2009] ADE150 |
82662-12280 |
US $8.59 |
||
|
82663
|
82663
82663-02050 Cover, Relay Block, LowerRELAY BLOCK, LOWER [02.2008 - 03.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
82663-02050 |
US $30.28 |
||
|
82663A
|
82663A
82663-12070 Cover, Relay Block, Lower[02.2008 - 03.2009] ADE150;NDE150..5F,5FS |
82663-12070 |
US $6.99 |
||
|
82741
|
82741
82741-02050 Block, Engine Room RelayENGINE ROOM RELAY [02.2008 - 03.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
82741-02050 |
US $65.52 |
||
|
82741B
|
82741B
82741-12080 Block, Engine Room Relay[02.2008 - 03.2009] ADE150;NDE150..5F,5FS |
82741-12080 |
US $18.93 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[02.2008 - 03.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
82824-20140 |
US $3.32 |
||
|
85916P
|
85916P
90987-T2002 Relay, HeadlampHEADLAMP [02.2008 - 03.2009] ADE150 |
90987-T2002 |
US $49.96 |
||
|
85926
|
85926
90987-T2003
Relay Assy (For Heater Blower Motor)
[02.2008 - 03.2009] ADE150 |
90987-T2003 |
— | ||
|
85927
|
85927
90080-87021
Relay, Lamp Cut
[11.2011 - 06.2013] ADE150,NDE150,NRE150,ZRE151 |
90080-87021 |
— | ||
|
85927
|
85927
90080-87027
Relay, Lamp Cut
[02.2008 - 03.2009] ADE150 |
90080-87027 |
— | ||
| replacement | |||||
|
85927
|
85927
90080-87021
Relay, Lamp Cut
[02.2008 - 03.2009] ADE150 |
90080-87021 |
— | ||
|
85927A
|
85927A
90080-87020
Relay, Cooling Fan
[07.2010 - 06.2013] ADE150 |
90080-87020 |
— | ||
|
85927A
|
85927A
90080-87028
Relay, Cooling Fan
[02.2008 - 03.2009] ADE150; ADE150..LHD..DCR WITHOUT(AIR CONDITIONER) |
90080-87028 |
— | ||
| replacement | |||||
|
85927A
|
85927A
90080-87020
Relay, Cooling Fan
[02.2008 - 03.2009] ADE150; ADE150..LHD..DCR WITHOUT(AIR CONDITIONER) |
90080-87020 |
— | ||
|
85927B
|
85927B
90080-87021
Relay, Lamp Cut
[11.2011 - 06.2013] ADE150 |
90080-87021 |
— | ||
|
85927B
|
85927B
90080-87027
Relay, Lamp Cut
[02.2008 - 03.2009] ADE150; ADE150..LHD..DCR WITHOUT(AIR CONDITIONER) |
90080-87027 |
— | ||
| replacement | |||||
|
85927B
|
85927B
90080-87021
Relay, Lamp Cut
[02.2008 - 03.2009] ADE150; ADE150..LHD..DCR WITHOUT(AIR CONDITIONER) |
90080-87021 |
— | ||
|
85942
|
85942
85942-12010
Relay, Headlamp Cleaner Control
[02.2008 - 03.2009] ADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS) HEAD LAMP CLEANER-WITH |
85942-12010 |
— | ||
|
85942
|
85942
85942-12040
Relay, Headlamp Cleaner Control
[06.2010 - 12.2011] ADE150,NDE150,NRE150,ZRE151..LHD HEAD LAMP CLEANER-WITH |
85942-12040 |
— | ||
|
85942
|
85942
85942-20031 Relay, Headlamp Cleaner ControlHEADLAMP CLEANER CONTROL [01.2012 - 06.2013] ADE150,NDE150,NRE150,ZRE151..LHD HEAD LAMP CLEANER-WITH |
85942-20031 |
US $120.85 |
||
|
87346K
|
87346K
90080-87021
Relay, Lamp Cut
[11.2011 - 06.2013] ADE150 TYPE A:REFER ILLUST.; ZRE151..LHD COLD AREA SPEC,TYPE A:REFER ILLUST.; ADE150..LHD COLD AREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY),TYPE A:REFER ILLUST.; ADE150..LHD COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER,TYPE A:REF |
90080-87021 |
— | ||
|
87346K
|
87346K
90080-87027
Relay, Lamp Cut
[02.2008 - 03.2009] ADE150 TYPE A:REFER ILLUST.; ADE150..LHD..DCR COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION),TYPE A:REFER ILLUST.; ADE150..LHD COLD AREA SPEC&AUTO AIR CONDITIONER,TYPE A:REFER ILLUST.; ADE150..LHD ADDITIONAL HEATER-STOVE HEATER |
90080-87027 |
— | ||
| replacement | |||||
|
87346K
|
87346K
90080-87021
Relay, Lamp Cut
[02.2008 - 03.2009] ADE150 TYPE A:REFER ILLUST.; ADE150..LHD..DCR COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION),TYPE A:REFER ILLUST.; ADE150..LHD COLD AREA SPEC&AUTO AIR CONDITIONER,TYPE A:REFER ILLUST.; ADE150..LHD ADDITIONAL HEATER-STOVE HEATER |
90080-87021 |
— | ||
|
89480A
|
89480A
89480-12030
Sensor Assy, Differential Pressure
[02.2008 - 03.2009] ADE150..DCRL |
89480-12030 |
— | ||
|
89480A
|
89480A
89480-12050
Sensor Assy, Differential Pressure
[03.2009 - 06.2010] ADE150 |
89480-12050 |
— | ||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
8271512E10
|
8271512E10
82715-12E10
Bracket,wiring Harness Clamp
|
82715-12E10 |
— | ||
|
8271512E80
|
8271512E80
82715-12E80
Bracket,wiring Harness Clamp
|
82715-12E80 |
— | ||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
US $0.96 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.66 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.78 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
