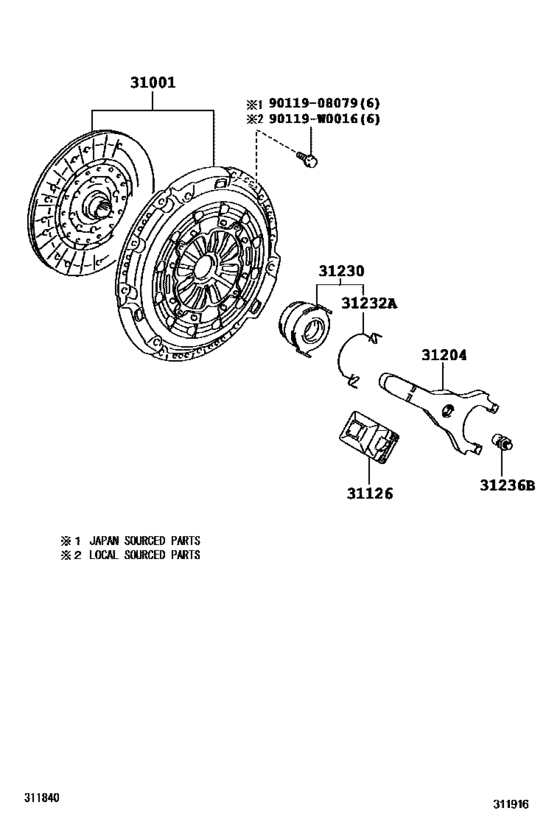

Clutch & Release Fork ([07.2007 - ] (0707- )ADE150) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31001
|
31001
31001-05040
Clutch Set, Cover & Disc
[07.2007 - 03.2009] ADE150 |
31001-05040 |
— | ||
| replacement | |||||
|
31001
|
31001
31001-05170 Clutch Set, Cover & Disc[07.2007 - 03.2009] ADE150 |
31001-05170 |
US $461.80 |
||
|
31001
|
31001
31001-05090
Clutch Set, Cover & Disc
[03.2009 - 06.2010] ADE150 |
31001-05090 |
— | ||
| replacement | |||||
|
31001
|
31001
31001-0R010 Clutch Set, Cover & Disc[03.2009 - 06.2010] ADE150 |
31001-0R010 |
US $474.67 |
||
|
31001
|
31001
31001-05140 Clutch Set, Cover & Disc[03.2011 - 01.2014] ADE150 |
31001-05140 |
US $442.63 |
||
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[07.2007 - 03.2009] ADE150 |
31126-20080 |
from US $11.36 |
||
|
31204
|
31204
31204-20140
Fork Sub-Assy, Clutch Release
[07.2007 - 03.2009] ADE150 |
31204-20140 |
— | ||
|
31230
|
31230
31230-20200 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [07.2007 - 03.2009] ADE150 |
31230-20200 |
US $24.26 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[07.2007 - 03.2009] ADE150 |
31232-20031 |
from US $2.56 |
||
|
31236B
|
31236B
31236-20080 Support, Release ForkRELEASE FORK [07.2007 - 03.2009] ADE150 |
31236-20080 |
US $9.91 |
||
|
31236B
|
31236B
31236-64020
Support, Release Fork
[09.2013 - 01.2014] ADE150 |
31236-64020 |
— | ||
| replacement | |||||
|
31236B
|
31236B
31236-64021
Support, Release Fork
[09.2013 - 01.2014] ADE150 |
31236-64021 |
— | ||
|
90119W0016
|
90119W0016
90119-W0016
Bolt (For Transmission Control Cable Bracket)
|
90119-W0016 |
— | ||
| replacement | |||||
|
90119W0016
|
90119W0016
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
