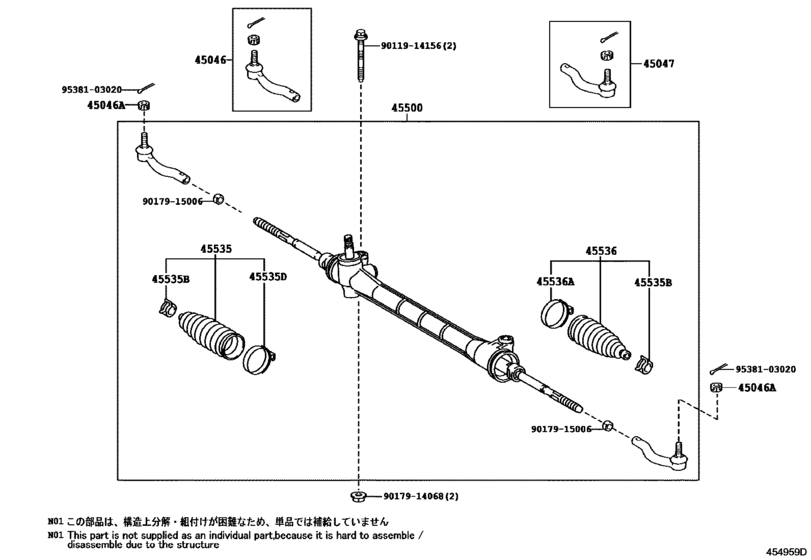

Front Steering Gear & Link ([07.2007 - 04.2014] (0707-1404)RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09570 End Sub-Assy, Tie Rod, RhTIE ROD, RH [07.2007 - 03.2009] ADE150 |
45046-09570 |
from US $46.06 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[07.2007 - 03.2009] ADE150 |
90171-12028 |
from US $1.38 |
||
|
45047
|
45047
45047-09270 End Sub-Assy, Tie Rod, LhTIE ROD, LH [07.2007 - 03.2009] ADE150 |
45047-09270 |
US $52.20 |
||
|
45500
|
45500
45500-02110
Link Assy, Steering
[07.2007 - 03.2009] ADE150..SA |
45500-02110 |
— | ||
| replacements | |||||
|
45500
|
45500
45046-09570 End Sub-Assy, Tie Rod, RhTIE ROD, RH [07.2007 - 03.2009] ADE150..SA |
45046-09570 |
from US $46.06 |
||
|
45500
|
45500
45047-09270 End Sub-Assy, Tie Rod, LhTIE ROD, LH [07.2007 - 03.2009] ADE150..SA |
45047-09270 |
US $52.20 |
||
|
45500
|
45500
45510-02520
Gear Assy, Steering
[07.2007 - 03.2009] ADE150..SA |
45510-02520 |
— | ||
|
45500
|
45500
90179-15006 Nut[07.2007 - 03.2009] ADE150..SA |
90179-15006 |
US $2.24 |
||
|
45500
|
45500
45500-02330
Link Assy, Steering
[04.2011 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD |
45500-02330 |
— | ||
| replacements | |||||
|
45500
|
45500
45046-09570 End Sub-Assy, Tie Rod, RhTIE ROD, RH [04.2011 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD |
45046-09570 |
from US $46.06 |
||
|
45500
|
45500
45047-09270 End Sub-Assy, Tie Rod, LhTIE ROD, LH [04.2011 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD |
45047-09270 |
US $52.20 |
||
|
45500
|
45500
45510-02520
Gear Assy, Steering
[04.2011 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD |
45510-02520 |
— | ||
|
45500
|
45500
90179-15006 Nut[04.2011 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD |
90179-15006 |
US $2.24 |
||
|
45535
|
45535
45535-09120 Boot, Steering Rack, No.1STEERING RACK, NO.1 [07.2007 - 03.2009] ADE150 |
45535-09120 |
US $13.24 |
||
|
45535B
|
45535B
45537-02010 Clip(For Steering Rack Boot)[07.2007 - 03.2009] ADE150 |
45537-02010 |
US $2.62 |
||
|
45535D
|
45535D
45538-47010 Clamp(For Steering Rack Boot)[07.2007 - 03.2009] ADE150 |
45538-47010 |
US $4.32 |
||
|
45536
|
45536
45535-09120 Boot, Steering Rack, No.1STEERING RACK, NO.1 [07.2007 - 03.2009] ADE150 |
45535-09120 |
US $13.24 |
||
|
45536A
|
45536A
45538-47010 Clamp(For Steering Rack Boot)[07.2007 - 03.2009] ADE150 |
45538-47010 |
US $4.32 |
||
|
9011914156
|
9011914156
90119-14156 Bolt, Steering Rack Housing |
90119-14156 |
US $7.68 |
||
|
9017914068
|
9017914068
90179-14068 Nut(For Front Suspension Lower Arm) |
90179-14068 |
from US $1.37 |
||
|
9017915006
|
9017915006
90179-15006 Nut |
90179-15006 |
US $2.24 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
