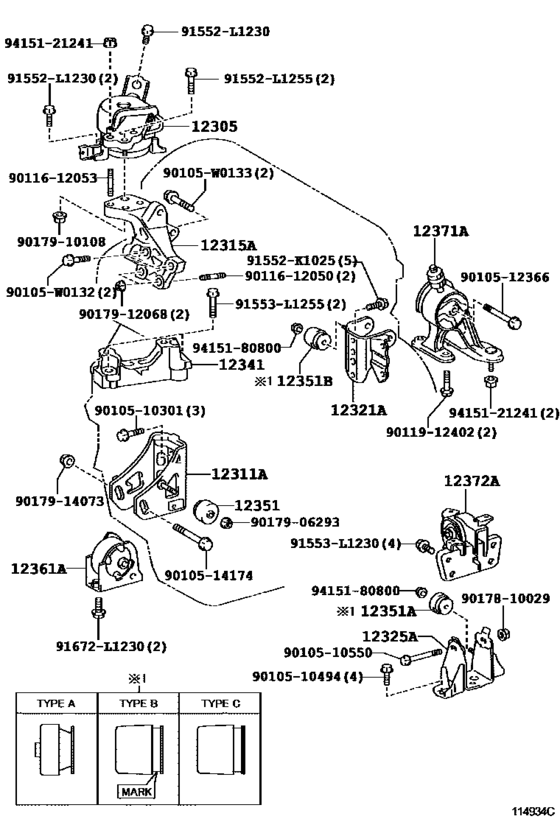

Mounting ([07.2007 - ] (0707- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-0R020
Insulator Sub-Assy, Engine Mounting, Rh
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12305-0R020 |
— | ||
|
12311A
|
12311A
12311-0R030
Bracket, Engine Mounting, Front(For Transverse Engine)
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12311-0R030 |
— | ||
|
12315A
|
12315A
12315-0R020
Bracket, Engine Mounting, Rh(For Transverse Engine)
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12315-0R020 |
— | ||
|
12321A
|
12321A
12321-0R030
Bracket, Engine Mounting, Rear(For Transverse Engine)
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12321-0R030 |
— | ||
|
12325A
|
12325A
12325-0R030
Bracket, Engine Mounting, Lh(For Transverse Engine)
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12325-0R030 |
— | ||
|
12341
|
12341
12341-26010 Spacer, Engine Mounting[07.2007 - 01.2008] 1ADFTV..ADE150 |
12341-26010 |
US $151.42 |
||
| replacement | |||||
|
12341
|
12341
12341-26011 Spacer, Engine Mounting[07.2007 - 01.2008] 1ADFTV..ADE150 |
12341-26011 |
US $93.18 |
||
|
12341
|
12341
12341-26011 Spacer, Engine Mounting[02.2008 - 03.2009] 1ADFTV..ADE150 |
12341-26011 |
US $93.18 |
||
|
12351
|
12351
12351-63010 Damper, Engine Mounting[07.2007 - 03.2009] 1ADFTV..ADE150 |
12351-63010 |
US $42.63 |
||
|
12351A
|
12351A
12351-0R010 Damper, Engine MountingENGINE MOUNTING(FOR INSULATOR) [07.2007 - 03.2009] 1ADFTV..ADE150 TYPE A OR C:REF ILL. |
12351-0R010 |
US $22.28 |
||
|
12351A
|
12351A
12351-26010 Damper, Engine Mounting(For Insulator)ENGINE MOUNTING(FOR INSULATOR) [07.2007 - 03.2009] 1ADFTV..ADE150 TYPE B:REFER ILLUST. |
12351-26010 |
US $28.54 |
||
|
12351B
|
12351B
12351-0R010 Damper, Engine MountingENGINE MOUNTING(FOR INSULATOR) [07.2007 - 03.2009] 1ADFTV..ADE150 TYPE A OR C:REF ILL. |
12351-0R010 |
US $22.28 |
||
|
12351B
|
12351B
12351-26010 Damper, Engine Mounting(For Insulator)ENGINE MOUNTING(FOR INSULATOR) [07.2007 - 03.2009] 1ADFTV..ADE150 TYPE B:REFER ILLUST. |
12351-26010 |
US $28.54 |
||
|
12361A
|
12361A
12361-0R020
Insulator, Engine Mounting, Front
[07.2007 - 01.2008] 1ADFTV..ADE150 |
12361-0R020 |
— | ||
|
12361A
|
12361A
12361-0R050
Insulator, Engine Mounting, Front
[02.2008 - 03.2009] 1ADFTV..ADE150 |
12361-0R050 |
— | ||
|
12371A
|
12371A
12371-0R020
Insulator, Engine Mounting, Rear
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12371-0R020 |
— | ||
|
12372A
|
12372A
12372-0R020
Insulator, Engine Mounting, Lh(For Transverse Engine)
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12372-0R020 |
— | ||
|
90105W0132
|
90105W0132
90105-W0132
New Genuine Part
|
90105-W0132 |
— | ||
|
90105W0133
|
90105W0133
90105-W0133
Bolt(For Head To Camshaft Bearing Cap)
|
90105-W0133 |
— | ||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.60 |
||
|
91552L1230
|
91552L1230
91552-L1230 BOLT FLANGE |
91552-L1230 |
US $2.56 |
||
|
91552L1255
|
91552L1255
91552-L1255 New Genuine Part |
91552-L1255 |
US $3.04 |
||
|
91553L1230
|
91553L1230
91553-L1230 New Genuine Part |
91553-L1230 |
US $3.36 |
||
|
91553L1255
|
91553L1255
91553-L1255 New Genuine Part |
91553-L1255 |
US $3.20 |
||
|
91672L1230
|
91672L1230
91672-L1230 BOLT FLANGE |
91672-L1230 |
US $3.04 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010512366
|
9010512366
90105-12366 BOLT FLANGE |
90105-12366 |
US $3.84 |
||
|
9010514174
|
9010514174
90105-14174 New Genuine Part |
90105-14174 |
US $6.40 |
||
|
9011612050
|
9011612050
90116-12050 New Genuine Part |
90116-12050 |
US $1.16 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9011912402
|
9011912402
90119-12402 New Genuine Part |
90119-12402 |
US $4.32 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.90 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.86 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017912068
|
9017912068
90179-12068 Nut(For Transaxle Case Cover) |
90179-12068 |
US $1.76 |
||
|
9017914073
|
9017914073
90179-14073 New Genuine Part |
90179-14073 |
US $3.84 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.94 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
