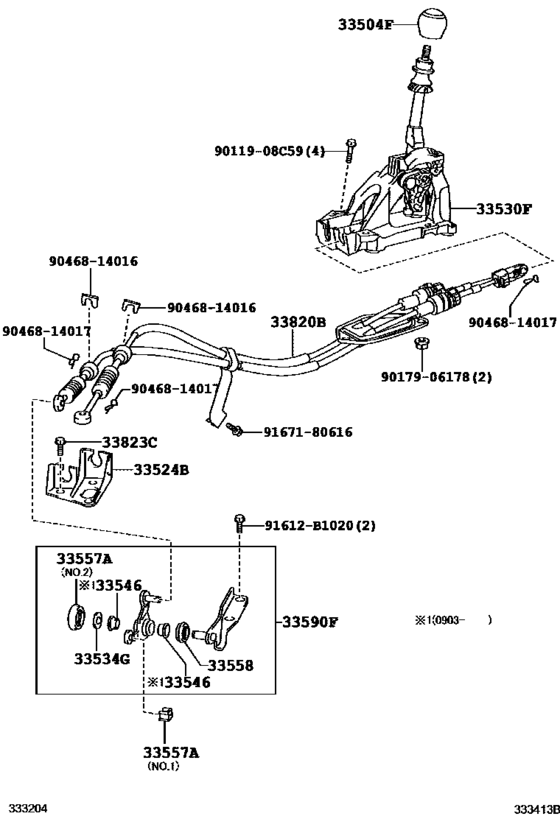

Shift Lever & Retainer ([07.2007 - ] (0707- )ADE150) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-02150-B1
Knob Sub-Assy, Shift Lever
[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1# |
33504-02150-B1 |
— | ||
|
33504F
|
33504F
33504-02150-E0
Knob Sub-Assy, Shift Lever
[07.2007 - 03.2009] ADE150 ASH BROWN,TRIM4# |
33504-02150-E0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-02151-E0
Knob Sub-Assy, Shift Lever
[07.2007 - 03.2009] ADE150 ASH BROWN,TRIM4# |
33504-02151-E0 |
— | ||
|
33504F
|
33504F
33504-02151-B1
Knob Sub-Assy, Shift Lever
[02.2010 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..6F..(E,N) DK.GRAY,TRIM1#; NDE150,NRE150,ZRE15#..6F..D SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1# |
33504-02151-B1 |
— | ||
|
33504F
|
33504F
33504-02151-E0
Knob Sub-Assy, Shift Lever
[02.2010 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..6F..(E,N) ASH BROWN,TRIM4# |
33504-02151-E0 |
— | ||
|
33524B
|
33524B
33524-12090
Bracket, Control Cable
[07.2007 - 03.2009] ADE150 |
33524-12090 |
— | ||
|
33530F
|
33530F
33530-12A70
Lever Assy, Shift (For Floor Shift)
[07.2007 - 02.2008] ADE150,ZRE152..RHD..6F |
33530-12A70 |
— | ||
| replacement | |||||
|
33530F
|
33530F
33530-12A71
Lever Assy, Shift (For Floor Shift)
[07.2007 - 02.2008] ADE150,ZRE152..RHD..6F |
33530-12A71 |
— | ||
|
33530F
|
33530F
33530-12A71
Lever Assy, Shift (For Floor Shift)
[03.2008 - 03.2009] ADE150..SA |
33530-12A71 |
— | ||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[03.2009 - 06.2010] ADE150 |
90201-08028 |
US $0.96 |
||
|
33546
|
33546
33546-20020 Bush (For Selecting Bell Crank)[03.2009 - 06.2010] ADE150 |
33546-20020 |
US $9.26 |
||
|
33557A
|
33557A
33557-20010 Cover, Selecting Bellcrank Dust, No.1[07.2007 - 03.2009] ADE150 NO.2 |
33557-20010 |
US $4.89 |
||
|
33557A
|
33557A
33557-33010 Bush (For Shift & Select Lever)[07.2007 - 03.2009] ADE150 NO.1 |
33557-33010 |
from US $7.20 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[03.2009 - 06.2010] ADE150 |
33558-10030 |
US $3.68 |
||
|
33590F
|
33590F
33590-20040
Crank Assy, Selecting Bell (For Floor Shift)
[07.2007 - 03.2009] ADE150 |
33590-20040 |
— | ||
|
33820B
|
33820B
33820-12C20
Cable Assy, Transmission Control
[07.2007 - 03.2009] ADE150 |
33820-12C20 |
— | ||
|
33823C
|
33823C
91611-G0820 Bolt[07.2007 - 03.2009] ADE150 |
91611-G0820 |
from US $1.31 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.86 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
