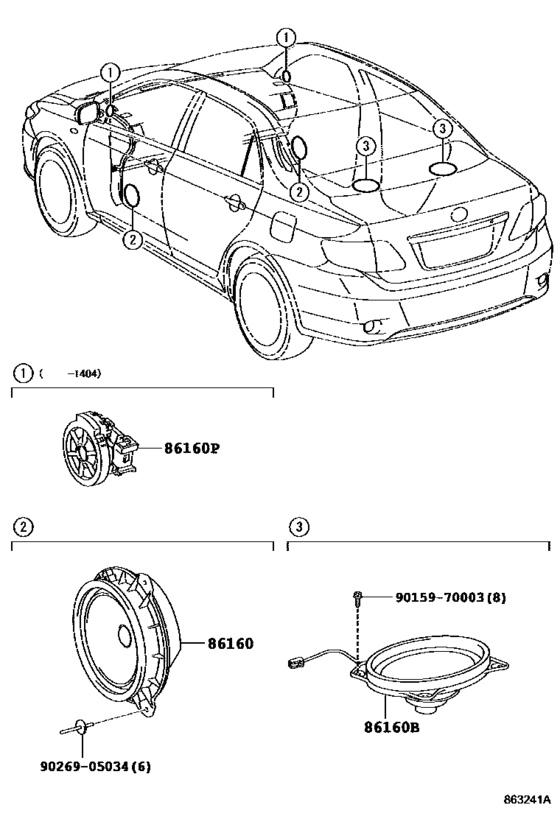

Speaker ([07.2007 - ] (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-0D180 Speaker Assy, RearREAR [07.2007 - 03.2009] ADE150 |
86160-0D180 |
US $112.11 |
||
| replacement | |||||
|
86160
|
86160
86160-0D370 Speaker Assy, Rear[07.2007 - 03.2009] ADE150 |
86160-0D370 |
US $177.44 |
||
| replacement | |||||
|
86160
|
86160
86160-0C140 Speaker Assy, Front No.1[07.2007 - 03.2009] ADE150 |
86160-0C140 |
US $177.44 |
||
|
86160
|
86160
86160-0D370 Speaker Assy, Rear[10.2011 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
86160-0D370 |
US $177.44 |
||
| replacement | |||||
|
86160
|
86160
86160-0C140 Speaker Assy, Front No.1[10.2011 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
86160-0C140 |
US $177.44 |
||
|
86160B
|
86160B
86160-02720
Speaker Assy, Rear
[07.2007 - 03.2009] ADE150 |
86160-02720 |
— | ||
| replacement | |||||
|
86160B
|
86160B
86160-02A30
Speaker Assy, Rear
[07.2007 - 03.2009] ADE150 |
86160-02A30 |
— | ||
|
86160B
|
86160B
86160-02A30
Speaker Assy, Rear
[03.2011 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
86160-02A30 |
— | ||
|
86160P
|
86160P
86160-02700 Speaker Assy, Front No.2FRONT NO.2 [07.2007 - 03.2009] ADE150 |
86160-02700 |
US $157.25 |
||
|
86160P
|
86160P
86160-0D350 Speaker Assy, Front No.2[10.2011 - 01.2014] ZRE152;ADE150,NRE150,ZRE151,153..E,N; NRE150..D;ZRE151..RHD..D..GEN AUDIO-RADIOLESS & 6SPEAKER; NRE150..D;ZRE151..RHD..D..GEN AUDIO-WITH(MW/UKW & CD & 6SPEAKER) |
86160-0D350 |
US $69.74 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $2.24 |
||
