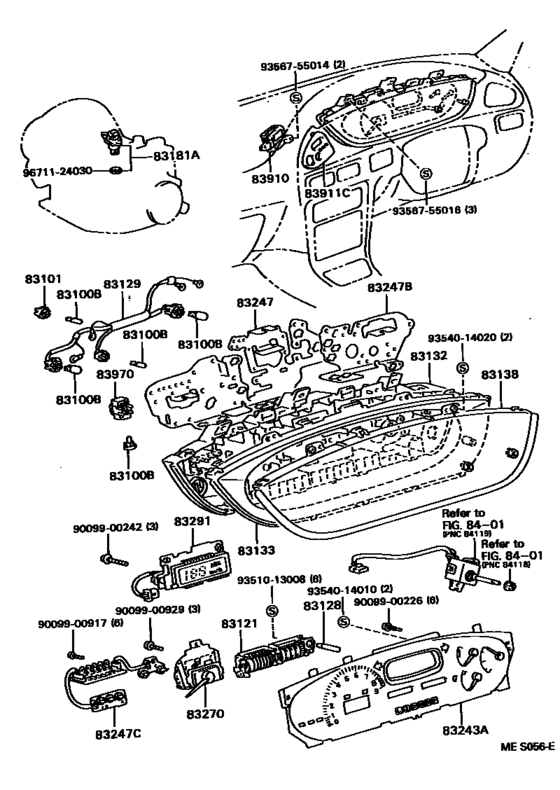

Meter ([08.1991 - 05.1993] DIGITAL METER (9108-9305)CP) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- SJ
- body
- CP
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-24130 Bulb, Combination Meter, No.1[08.1991 - 05.1993] AE101..4FC..SJ 12V 1.4W WHITE W(SKT) |
83119-24130 |
US $13.12 |
||
|
83100B
|
83100B
83119-24250
Bulb, Combination Meter, No.1
[08.1991 - 05.1993] AE101..CP 14V 3.78W,W(BLUE CAP) |
83119-24250 |
— | ||
|
83100B
|
83100B
83119-24370
Bulb, Combination Meter, No.1
[08.1991 - 05.1993] AE101..CP 14V 3.0W,LONG LIFE |
83119-24370 |
— | ||
|
83100B
|
83100B
83119-24390
Bulb, Combination Meter, No.1
[08.1991 - 05.1993] AE101..CP 14V 1.4W,W(SOCKET),L |
83119-24390 |
— | ||
|
83100B
|
83100B
83119-24410 Bulb, Combination Meter, No.1[08.1991 - 05.1993] AE101..4FC..SJ 14V 2.0W,W(SOCKET) |
83119-24410 |
US $5.25 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[08.1991 - 05.1993] AE101..CP;AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI) 14V 3.0W |
83119-32010 |
from US $2.24 |
||
|
83100B
|
83100B
90072-02003 Bulb, Combination Meter, No.1[08.1991 - 12.1993] AE101..CP 12V 3.8W |
90072-02003 |
US $3.35 |
||
|
83100B
|
83100B
90072-02004 Bulb, Combination Meter, No.1[08.1991 - 05.1995] AE101..4FC..SJ 14V 1.1W |
90072-02004 |
US $4 |
||
|
83100B
|
83100B
90072-02008 Bulb, Combination Meter, No.1[05.1993 - 05.1995] AE101..CP 14V 3.0W |
90072-02008 |
from US $1.14 |
||
|
83100B
|
83100B
90072-02013 Bulb, Combination Meter, No.1[12.1993 - 05.1995] AE101..CP 14V 3.4W |
90072-02013 |
US $1.89 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1991 - 05.1993] AE101..CP 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1991 - 05.1993] EE105..LHD;EE100..GCC;AE100,CE100,EE108;AE101..LHD..(GLI,XLI);AE101,EE100..RHD..(G L,GLI,GTAPX,SEG,SJ,STD,XL) 12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[08.1991 - 05.1993] AE101..CP 14V 3.0W LONG LIFE |
83101-32020 |
from US $2.22 |
||
|
83101
|
83101
84999-50262 Socket Sub-Assy, Combination Meter Bulb[08.1991 - 05.1995] AE101..CP 12V 3.8W |
84999-50262 |
US $3.20 |
||
|
83101
|
83101
90072-01003 Socket Sub-Assy, Combination Meter Bulb[08.1991 - 05.1995] AE101..CP |
90072-01003 |
US $7.36 |
||
|
83101
|
83101
90072-01004 Socket Sub-Assy, Combination Meter Bulb[08.1991 - 05.1993] AE101..CP..5F 14W 3W; AE101..GTAPX;AE101..4FC..SJ 14V 3W |
90072-01004 |
US $3.79 |
||
|
83121
|
83121
83121-12070
Counter, Total
[08.1991 - 05.1993] AE101..CP |
83121-12070 |
— | ||
|
83128
|
83128
83128-12810
Knob, Trip Counter
[08.1991 - 05.1993] AE101..CP |
83128-12810 |
— | ||
|
83129
|
83129
83129-12130
Wire, Meter
[08.1991 - 05.1993] AE101..CP |
83129-12130 |
— | ||
|
83132
|
83132
83132-1A510
Case, Combination Meter
[08.1991 - 05.1993] AE101..4FC..SJ W(*DS) |
83132-1A510 |
— | ||
|
83132
|
83132
83132-1E540 Case, Combination Meter[08.1991 - 05.1995] AE101..4FC..SJ |
83132-1E540 |
US $41.79 |
||
|
83133
|
83133
83133-13290
Plate, Combination Meter, No.1
[08.1991 - 05.1993] AE101..CP |
83133-13290 |
— | ||
|
83138
|
83138
83138-1A090
Glass, Speedometer
[08.1991 - 05.1993] AE101..CP |
83138-1A090 |
— | ||
|
83181A
|
83181A
83181-12020 Sensor, Speedometer[08.1991 - 09.1994] AE10#,EE10#..4F,4FC,5F |
83181-12020 |
from US $169.48 |
||
|
83243A
|
83243A
83243-1E540 Gauge Sub-Assy, Fuel Receiver[08.1991 - 05.1994] AE101..4FC..SJ |
83243-1E540 |
US $81.54 |
||
|
83243A
|
83243A
83243-1E541 Gauge Sub-Assy, Fuel Receiver[05.1994 - 05.1995] AE101..4FC..SJ |
83243-1E541 |
US $104.83 |
||
|
83243A
|
83243A
83243-1E850 Gauge Sub-Assy, Fuel Receiver[08.1991 - 05.1993] AE101..4FC..SJ W(*DS) |
83243-1E850 |
US $75.71 |
||
|
83247
|
83247
83149-1E600 Plate, Meter Circuit[08.1991 - 05.1995] AE101..4FC..SJ |
83149-1E600 |
US $58.24 |
||
|
83247
|
83247
83247-1H170
Plate, Meter Circuit
[08.1991 - 05.1993] AE101..4FC..SJ *DS |
83247-1H170 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-1H150
Plate, Meter Circuit
[08.1991 - 05.1993] AE101..4FC..SJ *DS |
83247-1H150 |
— | ||
|
83247B
|
83247B
83247-1H310
Plate, Meter Circuit, No.2
[08.1991 - 05.1993] AE101..CP |
83247-1H310 |
— | ||
|
83247C
|
83247C
83247-1H270
Plate, Mater Circuit, No.3
[08.1991 - 05.1993] AE101..4FC..SJ |
83247-1H270 |
— | ||
|
83270
|
83270
83242-1E670 Tachometer Assy, Engine[08.1991 - 05.1993] AE101..SJ |
83242-1E670 |
US $527.07 |
||
|
83291
|
83291
83291-12160 Computer, Combination Meter[08.1991 - 05.1993] AE101..CP |
83291-12160 |
US $1,275.46 |
||
|
83910
|
83910
83910-12500 Clock Assy[08.1991 - 05.1995] AE101..CP |
83910-12500 |
US $426.61 |
||
|
83911C
|
83911C
83911-12010-22 Ornament, Clock[08.1991 - 05.1995] AE101..CP BLACK,TRIM2# |
83911-12010-22 |
US $18.64 |
||
|
83970
|
83970
83970-12020 Buzzer Assy, Reverse Warning[08.1991 - 05.1995] AE100..4FC;AE101..4FC..SJ |
83970-12020 |
US $38.61 |
||
|
83970
|
83970
83970-20010 Buzzer Assy, Reverse Warning[08.1991 - 05.1993] AE101..4FC..SJ W(*DS) |
83970-20010 |
US $38.61 |
||
|
9009900226
|
9009900226
90099-00226
New Genuine Part
|
90099-00226 |
— | ||
|
9009900242
|
9009900242
90099-00242
New Genuine Part
|
90099-00242 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9351013008
|
9351013008
93510-13008 New Genuine Part |
93510-13008 |
US $2.18 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.96 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9671124030
|
9671124030
96711-24030 Ring,o (For Speedometer Driven Hole Cover) |
96711-24030 |
from US $2.24 |
||
