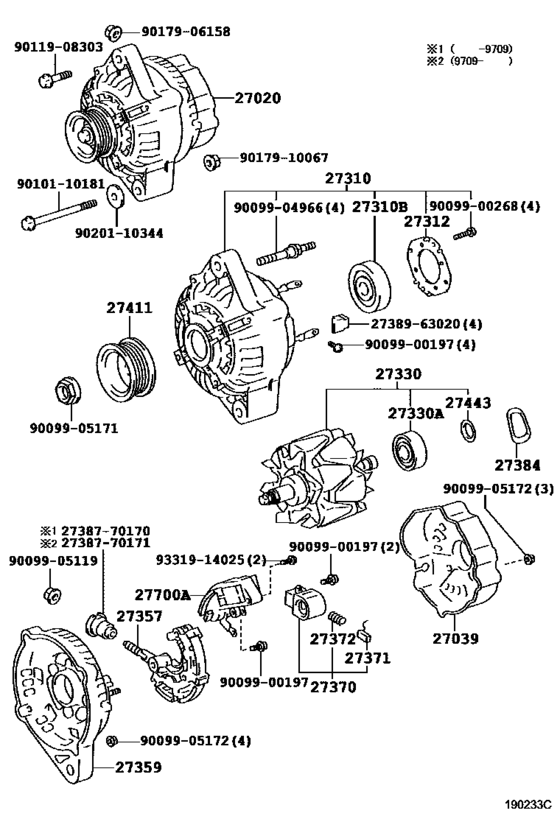

Alternator ([06.1991 - ] 12V 70A (9106- )4AGE..MTM) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- GT
- body
- 4DS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-16280 Alternator Assy[06.1991 - 05.1992] 4AGE..AE101..5F １２Ｖ ７０Ａ |
27060-16280 |
US $1,557.92 |
||
|
27020
|
27020
27060-16320 Alternator Assy[05.1992 - 05.1995] 4AGE..AE101..5F １２Ｖ ７０Ａ |
27060-16320 |
US $1,557.92 |
||
|
27039
|
27039
27039-15170
Cover, Alternator Rear End
[06.1991 - 05.1992] 2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27039-15170 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[06.1991 - 05.1992] 2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27039-15171 |
— | ||
|
27039
|
27039
27039-73020
Cover, Alternator Rear End
[05.1992 - 01.1994] 2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27039-73020 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[05.1992 - 01.1994] 2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27039-16380 |
— | ||
|
27310
|
27310
27310-16300
Frame Assy, Drive End, Alternator
[06.1991 - 08.2000] 4AGE..AE101..MTM |
27310-16300 |
— | ||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[06.1991 - 05.1992] 4A#,5AFE..AE10#..5F |
90099-10178 |
from US $17.65 |
||
|
27312
|
27312
27312-70200
Plate, Bearing Retainer, Alternator
[06.1991 - 05.1992] 4A#,5AFE..AE10#..5F |
27312-70200 |
— | ||
|
27330
|
27330
27330-16300
Rotor Assy, Alternator
[06.1991 - 08.2000] 4AGE..AE101..MTM |
27330-16300 |
— | ||
|
27330A
|
27330A
90099-10194 Bearing(For Alternator Rotor)[06.1991 - 05.1992] 4AGE..AE101..5F |
90099-10194 |
from US $8.56 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[06.1991 - 01.1994] 2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-16300
Frame, Alternator Rectifier End
[06.1991 - 05.1995] 4AGE..AE101..5F |
27359-16300 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16301
Frame, Alternator Rectifier End
[06.1991 - 05.1995] 4AGE..AE101..5F |
27359-16301 |
— | ||
|
27359
|
27359
27384-16380
Washer
[06.1991 - 05.1995] 4AGE..AE101..5F |
27384-16380 |
— | ||
|
27370
|
27370
27370-54450
Holder Assy, Alternator Brush
[06.1991 - 01.1994] 2E,3E..EE106,107,108;4AGE,4EFE..AE101,EE101..MTM |
27370-54450 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[06.1991 - 01.1994] 2E,3E..EE106,107,108;4AGE,4EFE..AE101,EE101..MTM |
27370-58320 |
from US $16.97 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[06.1991 - 01.1994] 2E,3E..EE106,107,108;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[06.1991 - 01.1994] 2E,3E..EE106,107,108;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[06.1991 - 01.1994] 2E,3E..EE106,107,108;4A#,5AFE,4EFE..AE10#,EE101..MTM |
27372-87501 |
— | ||
|
27411
|
27411
27411-16180
Pulley, Alternator
[06.1991 -] 4A#,5AFE..AE10#..MTM |
27411-16180 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[06.1991 - 05.1993] 4A#,5AFE,2E,3E,4EFE..AE10#,EE10# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-46030 Regulator Assy, Generator[06.1991 - 05.1992] 4A#,5AFE..AE10# |
27700-46030 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-72090
Regulator Assy, Generator
[06.1991 - 05.1992] 4A#,5AFE..AE10# |
27700-72090 |
— | ||
|
27700A
|
27700A
27700-74030 Regulator Assy, Generator[05.1992 - 05.1993] 4A#,5AFE..AE10# |
27700-74030 |
US $258.59 |
||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738770171
|
2738770171
27387-70171
Insulator, Terminal
|
27387-70171 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010110181
|
9010110181
90101-10181
Bolt(For Alternator)
|
90101-10181 |
— | ||
|
9011908303
|
9011908303
90119-08303 New Genuine Part |
90119-08303 |
US $2.24 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910067
|
9017910067
90179-10067 Nut (For Rear Axle Shaft) |
90179-10067 |
from US $1.44 |
||
|
9020110344
|
9020110344
90201-10344 Washer, Plate(For Cylinder Head Set) |
90201-10344 |
US $1.76 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
