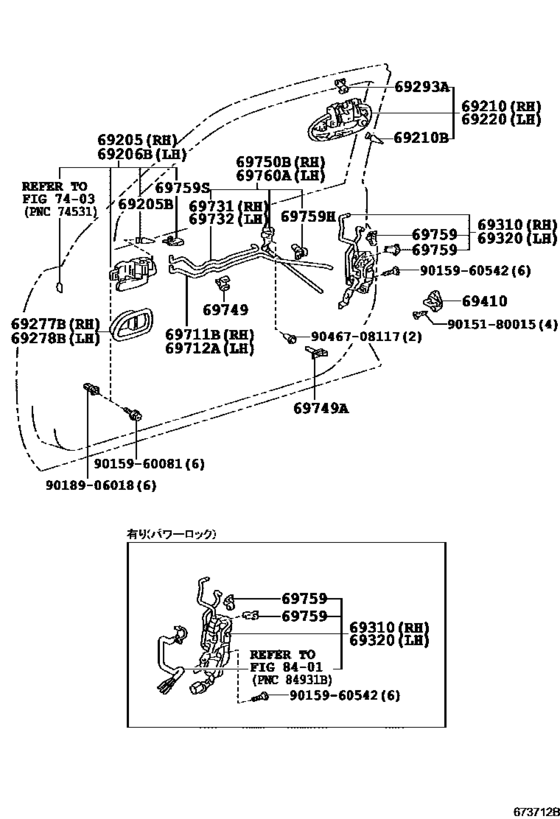

Front Door Lock & Handle ([05.1992 - 05.1995] (9205-9505)3DS) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Japan
- Frame
- AE101
- grade
- SJ
- body
- 3DS
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-12150-B0 Handle Sub-Assy, Front Door Inside, Rh[05.1992 - 05.1995] AE101..3DS SHADOW GRAY,TRIM1# |
69205-12150-B0 |
US $27.08 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[05.1992 - 05.1995] AE101..3DS |
90541-04014 |
from US $1.23 |
||
|
69206B
|
69206B
69206-12150-22
Handle Sub-Assy, Front Door Inside, Lh
[05.1992 - 05.1995] AE101..3DS SHADOW GRAY,TRIM1# |
69206-12150-22 |
— | ||
|
69210
|
69210
69210-12170-01 Handle Assy, Front Door, Outside Rh[05.1992 - 10.1992] AE101..3DS BLACK M,205 |
69210-12170-01 |
US $90.27 |
||
| replacement | |||||
|
69210
|
69210
69210-12170-C0 Handle Assy, Front Door, Outside Rh[05.1992 - 10.1992] AE101..3DS BLACK M,205 |
69210-12170-C0 |
US $90.27 |
||
|
69210
|
69210
69210-12170-07 Handle Assy, Front Door, Outside Rh[06.1991 - 05.1994] AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,SJ,XE GRAYISH GREEN M,6M3 |
69210-12170-07 |
US $90.27 |
||
|
69210
|
69210
69210-12170-13 Handle Assy, Front Door, Outside Rh[05.1992 - 10.1992] AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE SILVER MICA M,192; AE100,104,CE100,104,EE101..LX LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,192 |
69210-12170-13 |
US $90.27 |
||
| replacement | |||||
|
69210
|
69210
69210-12170-B0
Handle Assy, Front Door, Outside Rh
[05.1992 - 10.1992] AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE SILVER MICA M,192; AE100,104,CE100,104,EE101..LX LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,192 |
69210-12170-B0 |
— | ||
|
69210
|
69210
69210-12170-32 Handle Assy, Front Door, Outside Rh[05.1992 - 05.1993] AE101..3DS LAVENDER MICA M,925 |
69210-12170-32 |
US $90.27 |
||
|
69210
|
69210
69210-12170-B0
Handle Assy, Front Door, Outside Rh
[10.1992 - 05.1995] AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE SILVER MICA M,192; AE100,104,CE100,104,EE101..LX LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,192 |
69210-12170-B0 |
— | ||
|
69210
|
69210
69210-12170-C0 Handle Assy, Front Door, Outside Rh[10.1992 - 12.1996] AE101..3DS,WG BLACK METALLIC,205 |
69210-12170-C0 |
US $90.27 |
||
|
69210
|
69210
69210-12170-D0 Handle Assy, Front Door, Outside Rh[05.1992 - 05.1995] AE101..3DS SUPER RED 2,3E5 |
69210-12170-D0 |
US $90.27 |
||
|
69210
|
69210
69210-12170-D5 Handle Assy, Front Door, Outside Rh[05.1992 - 01.1994] AE101..3DS ORANGE MICA M,3L1 |
69210-12170-D5 |
US $90.27 |
||
|
69210
|
69210
69210-12170-J4 Handle Assy, Front Door, Outside Rh[05.1993 - 05.1995] AE10#,CE100,104,EE101..GT,LX,SEG,SEL,SJ,XE DARK BLUE MICA M,8G5 |
69210-12170-J4 |
US $90.27 |
||
|
69210B
|
69210B
90541-04014 Cushion, Console Box[06.1991 - 04.1997] AE10#,CE10#,EE10# |
90541-04014 |
from US $1.23 |
||
|
69220
|
69220
69220-12170-01 Handle Assy, Front Door Outside, Lh[05.1992 - 10.1992] AE101..3DS BLACK M,205 |
69220-12170-01 |
US $90.27 |
||
| replacement | |||||
|
69220
|
69220
69220-12170-C0
Handle Assy, Front Door Outside, Lh
[05.1992 - 10.1992] AE101..3DS BLACK M,205 |
69220-12170-C0 |
— | ||
|
69220
|
69220
69220-12170-07 Handle Assy, Front Door Outside, Lh[06.1991 - 05.1994] AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,SJ,XE GRAYISH GREEN M,6M3 |
69220-12170-07 |
US $90.27 |
||
|
69220
|
69220
69220-12170-13 Handle Assy, Front Door Outside, Lh[05.1992 - 10.1992] AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE SILVER MICA M,192; AE100,104,CE100,104,EE101..LX LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,192 |
69220-12170-13 |
US $90.27 |
||
| replacement | |||||
|
69220
|
69220
69220-12170-B0 Handle Assy, Front Door Outside, Lh[05.1992 - 10.1992] AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE SILVER MICA M,192; AE100,104,CE100,104,EE101..LX LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,192 |
69220-12170-B0 |
US $90.27 |
||
|
69220
|
69220
69220-12170-32 Handle Assy, Front Door Outside, Lh[05.1992 - 05.1993] AE101..3DS LAVENDER MICA M,925 |
69220-12170-32 |
US $90.27 |
||
|
69220
|
69220
69220-12170-B0 Handle Assy, Front Door Outside, Lh[10.1992 - 05.1995] AE10#,CE100,104,EE101..GT,SEG,SEL,SJ,XE SILVER MICA M,192; AE100,104,CE100,104,EE101..LX LX ﾘﾐﾃﾂﾄﾞ OR Lｴｸｽﾄﾗ ﾂ-ﾘﾝｸﾞﾊﾟﾂｹ-ｼﾞ,SILVER MICA M,192 |
69220-12170-B0 |
US $90.27 |
||
|
69220
|
69220
69220-12170-C0
Handle Assy, Front Door Outside, Lh
[10.1992 - 12.1996] AE101..3DS,WG BLACK METALLIC,205 |
69220-12170-C0 |
— | ||
|
69220
|
69220
69220-12170-D0 Handle Assy, Front Door Outside, Lh[05.1992 - 05.1995] AE101..3DS SUPER RED 2,3E5 |
69220-12170-D0 |
US $90.27 |
||
|
69220
|
69220
69220-12170-D5 Handle Assy, Front Door Outside, Lh[05.1992 - 01.1994] AE101..3DS ORANGE MICA M,3L1 |
69220-12170-D5 |
US $90.27 |
||
|
69220
|
69220
69220-12170-J4 Handle Assy, Front Door Outside, Lh[05.1993 - 05.1995] AE10#,CE100,104,EE101..GT,LX,SEG,SEL,SJ,XE DARK BLUE MICA M.,8G5 |
69220-12170-J4 |
US $90.27 |
||
|
69277B
|
69277B
69277-12080-B0 Bezel, Front Door Inside Handle, Rh[05.1992 - 05.1995] AE101..3DS SHDOW GRAY,TRIM1# |
69277-12080-B0 |
US $11.36 |
||
|
69278B
|
69278B
69278-12080-B0 Bezel, Front Door Inside Handle, Lh[05.1992 - 05.1995] AE101..3DS SHADOW GRAY,TRIM1# |
69278-12080-B0 |
US $11.36 |
||
| replacement | |||||
|
69278B
|
69278B
69278-12080-01 Bezel, Front Door Inside Handle, Lh[05.1992 - 05.1995] AE101..3DS SHADOW GRAY,TRIM1# |
69278-12080-01 |
US $11.36 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[06.1991 -] AE10#,CE10#,EE10#..3FC,4F,4FC,5F （Ｊ），右側 |
69293-12030 |
from US $1.99 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[06.1991 -] AE10#,CE10#,EE10#..3FC,4F,4FC,5F （Ｊ），左側 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-12230 Lock Assy, Front Door, Rh[05.1992 - 05.1994] AE101..3DS..GT; AE101..SJ ｱﾘ(*PW) |
69030-12230 |
US $257.71 |
||
|
69310
|
69310
69310-12510 Lock Assy, Front Door, Rh[05.1992 - 05.1994] AE101..SJ |
69310-12510 |
US $101.92 |
||
|
69320
|
69320
69040-12230 Lock Assy, Front Door, Lh[05.1992 - 05.1994] AE101..3DS..GT; AE101..SJ ｱﾘ(*PW) |
69040-12230 |
US $215.49 |
||
|
69320
|
69320
69320-12520 Lock Assy, Front Door, Lh[05.1992 - 05.1994] AE101..SJ |
69320-12520 |
US $101.92 |
||
|
69410
|
69410
69410-20070 Plate Assy, Front Door Lock Striker[06.1991 - 05.1993] AE10#,CE10#,EE10# |
69410-20070 |
US $24.29 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[05.1993 -] AE10#,CE10#,EE10# |
69410-87001 |
from US $10.22 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[05.1993 -] AE10#,CE10#,EE10# |
69410-AA020 |
US $37.29 |
||
|
69711B
|
69711B
69711-12150 Link, Front Door Lock Remote Control, Rh[05.1992 - 05.1995] AE101..3DS |
69711-12150 |
US $9.03 |
||
|
69712A
|
69712A
69712-12160 Link, Front Door Lock Remote Control, Lh[05.1992 - 05.1995] AE101..3DS |
69712-12160 |
US $9.03 |
||
|
69731
|
69731
69731-12050 Link, Front Door Inside Locking, No.1 Rh[05.1992 - 05.1995] AE101..3DS |
69731-12050 |
US $9.03 |
||
|
69732
|
69732
69732-12050 Link, Front Door Inside Locking, No.1 Lh[05.1992 - 05.1995] AE101..3DS |
69732-12050 |
US $9.03 |
||
|
69749
|
69749
69749-12040 Clamp, Front Door Lock Link[05.1992 - 05.1995] AE101..3DS |
69749-12040 |
US $4.80 |
||
|
69749A
|
69749A
69749-12060 Clamp, Front Door Lock Link[05.1992 - 05.1995] AE101..3DS |
69749-12060 |
US $1.60 |
||
|
69750B
|
69750B
69750-12050 Link Assy, Front Door Inside Locking, Rh[05.1992 - 05.1995] AE101..3DS |
69750-12050 |
US $11.65 |
||
|
69759
|
69759
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[05.1992 - 05.1995] AE101..3DS イエロー |
69759-20040 |
US $4.32 |
||
|
69759
|
69759
69759-20050 Snap(For Rear Door Lock)[05.1992 - 05.1995] AE101..3DS ブラウン |
69759-20050 |
US $2.62 |
||
|
69759
|
69759
69759-24010 Snap(For Rear Door Inside Handle)[06.1991 -] AE10#,CE10#,EE10# ナチュラル |
69759-24010 |
from US $2.15 |
||
|
69759
|
69759
69759-24020 Snap(For Rear Door Inside Handle)[06.1991 -] AE10#,CE10#,EE10# ブルー |
69759-24020 |
from US $2.88 |
||
|
69759H
|
69759H
69759-20080 Snap, Door Lock Control Link[05.1992 - 05.1995] AE101..3DS 右側 |
69759-20080 |
US $4.48 |
||
|
69759H
|
69759H
69759-20090 Snap(For Rear Door Lock)[05.1992 - 05.1995] AE101..3DS 左側 |
69759-20090 |
US $4.48 |
||
|
69759S
|
69759S
69759-20060 Snap(For Rear Door Inside Handle)[05.1992 - 05.1995] AE101..3DS 左側 |
69759-20060 |
US $3.84 |
||
|
69759S
|
69759S
69759-20070 Snap(For Rear Door Inside Handle)[05.1992 - 05.1995] AE101..3DS 右側 |
69759-20070 |
from US $1.74 |
||
|
69760A
|
69760A
69760-12050 Link Assy, Front Door Inside Locking, Lh[05.1992 - 05.1995] AE101..3DS |
69760-12050 |
US $11.65 |
||
|
9015180015
|
9015180015
90151-80015 SCREW CROSSRECESS |
90151-80015 |
US $1.46 |
||
| replacement | |||||
|
9015180015
|
9015180015
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960542
|
9015960542
90159-60542
SCREW WWASHER
|
90159-60542 |
— | ||
| replacement | |||||
|
9015960542
|
9015960542
90159-60349 SCREW WWASHER |
90159-60349 |
US $1.12 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
