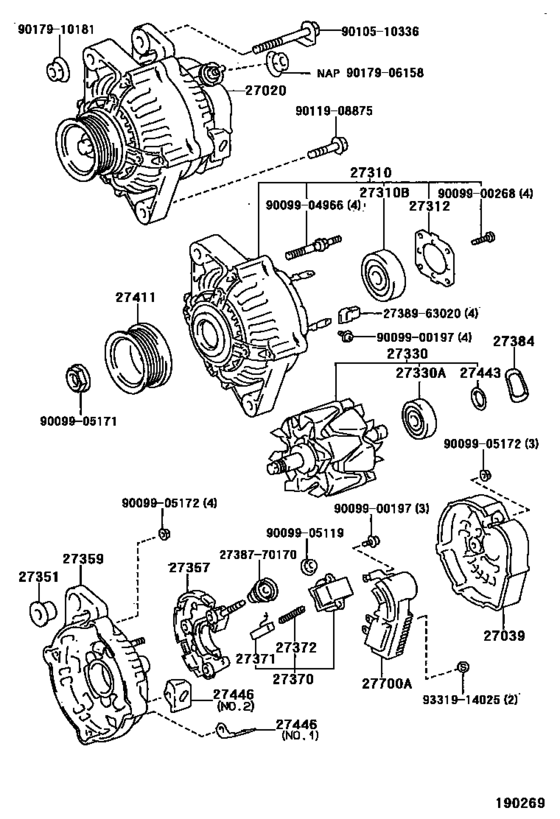

Alternator ([06.1992 - ] 12V 70A,NIPPONDENSO (9206- )4AFE,7AFE..JPP..3FC,5F..USA) Diagram Toyota COROLLA
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- AE101
- grade
- D
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 06.1992
- To
- 08.1996
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-02040 Alternator Assy[06.1995 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,NIPPONDENSO TENESSEE |
27060-02040 |
US $1,233.23 |
||
|
27020
|
27020
27060-02050
Alternator Assy
[06.1993 - 06.1995] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,DELCO REMY |
27060-02050 |
— | ||
|
27020
|
27020
27060-15100 Alternator Assy[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,NIPPONDENSO |
27060-15100 |
US $1,557.92 |
||
|
27039
|
27039
27039-73020
Cover, Alternator Rear End
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27039-73020 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27039-16380 |
— | ||
|
27310
|
27310
27310-15170
Frame Assy, Drive End, Alternator
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27310-15170 |
— | ||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
90099-10178 |
from US $17.65 |
||
|
27312
|
27312
27312-70200
Plate, Bearing Retainer, Alternator
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27312-70200 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[06.1992 -] 4AFE,7AFE..AE10#..JPP |
90099-10140 |
from US $9.43 |
||
|
27351
|
27351
27351-70010
Bush, Alternator Bracket
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27351-70010 |
— | ||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-15170
Frame, Alternator Rectifier End
[06.1992 - 01.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27359-15170 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-15171
Frame, Alternator Rectifier End
[06.1992 - 01.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27359-15171 |
— | ||
|
27359
|
27359
27384-16380
Washer
[06.1992 - 01.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27384-16380 |
— | ||
|
27359
|
27359
27359-15171
Frame, Alternator Rectifier End
[01.1996 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27359-15171 |
— | ||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27370-35060 |
from US $17.39 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27372-87501 |
— | ||
|
27384
|
27384
27384-16380
Washer
[01.1996 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27384-16380 |
— | ||
|
27411
|
27411
27411-16180
Pulley, Alternator
[06.1992 - 08.1996] 4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
27411-16180 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[06.1992 -] 4AFE,7AFE..AE10#..JPP |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-15170
Clip, Alternator Cord
[06.1992 -] 4AFE,7AFE..AE10#..JPP NO.1 |
27446-15170 |
— | ||
|
27446
|
27446
27446-15220
Clip, Alternator Cord
[06.1992 -] 4AFE,7AFE..AE10#..JPP NO.2 |
27446-15220 |
— | ||
|
27700A
|
27700A
27700-74030 Regulator Assy, Generator[06.1992 -] 4AFE,7AFE..AE10#..JPP |
27700-74030 |
US $258.59 |
||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510336
|
9010510336
90105-10336 Bolt(For Alternator) |
90105-10336 |
US $4.96 |
||
|
9011908875
|
9011908875
90119-08875 Bolt(For Alternator) |
90119-08875 |
US $3.04 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910181
|
9017910181
90179-10181 New Genuine Part |
90179-10181 |
US $2.56 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
