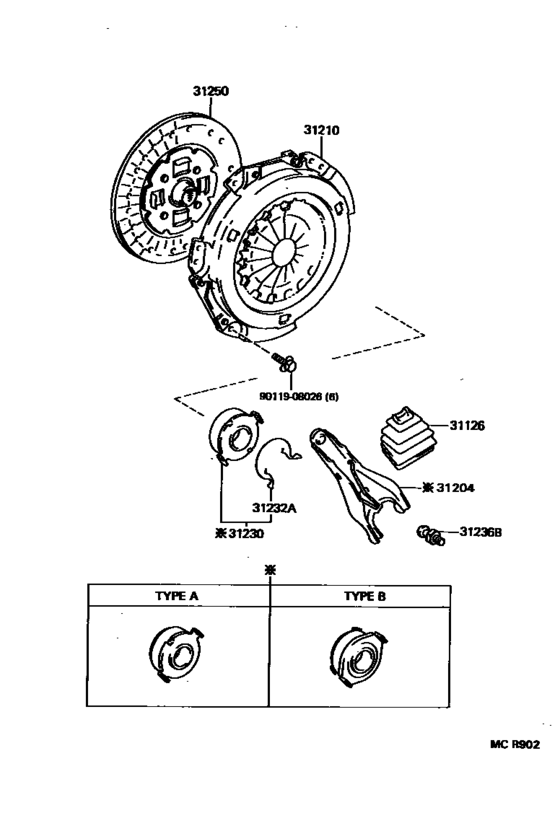

Clutch & Release Fork ([09.1994 - ] (9409- )AE101..TUR) Diagram Toyota COROLLA
- Year
- 1994 - 1998
- Sales region
- General
- Frame
- AE101
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- TUR
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1994
- To
- 07.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[09.1994 - 09.1995] AE100,101,EE10#..MTM |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[09.1994 - 09.1995] AE100,101..5F |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-05010 Cover Assy, ClutchCLUTCH [09.1994 - 09.1995] AE101..5F..TUR |
31210-05010 |
US $177.63 |
||
| replacement | |||||
|
31210
|
31210
31210-05016
Cover Assy, Clutch
[09.1994 - 09.1995] AE101..5F..TUR |
31210-05016 |
— | ||
|
31210
|
31210
31210-05011
Cover Assy, Clutch
[06.1996 - 12.1998] AE101..5F..TUR |
31210-05011 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-05016
Cover Assy, Clutch
[06.1996 - 12.1998] AE101..5F..TUR |
31210-05016 |
— | ||
|
31230
|
31230
31230-05010 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [09.1994 - 09.1995] AE101..5F..TUR TYPE B |
31230-05010 |
US $78.62 |
||
| replacement | |||||
|
31230
|
31230
31230-05012 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [09.1994 - 09.1995] AE101..5F..TUR TYPE B |
31230-05012 |
US $57.36 |
||
|
31230
|
31230
31230-12170
Bearing Assy, Clutch Release
[09.1994 - 09.1995] AE101..5F..TUR TYPE A |
31230-12170 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[09.1994 - 09.1995] AE101..5F..TUR TYPE A |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-05010
Clip, Release Bearing Hub
[09.1994 - 09.1995] AE101..5F..TUR TYPE 8 |
31232-05010 |
— | ||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[09.1994 - 09.1995] AE100,101..5F TYPE 4 |
31232-12070 |
US $3.20 |
||
|
31232A
|
31232A
31232-16031
Clip, Release Bearing Hub
[09.1994 - 09.1995] EE105..LHD..STD;EE100,101,104..MTM;AE101,EE105..5F..(GL,GLI,SEG,XL,XLI) TYPE 5 |
31232-16031 |
— | ||
|
31236B
|
31236B
31236-12020 Support, Release Fork[09.1994 - 09.1995] AE101..5F..TUR; AE100,101..5F |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-05010 Disc Assy, ClutchCLUTCH [09.1994 - 09.1995] AE101..5F..TUR |
31250-05010 |
US $148.51 |
||
| replacement | |||||
|
31250
|
31250
31250-05101
Disc Assy, Clutch
[09.1994 - 09.1995] AE101..5F..TUR |
31250-05101 |
— | ||
|
31250
|
31250
31250-05011
Disc Assy, Clutch
[09.1997 - 12.1998] AE101..5F..TUR |
31250-05011 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-05101
Disc Assy, Clutch
[09.1997 - 12.1998] AE101..5F..TUR |
31250-05101 |
— | ||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
