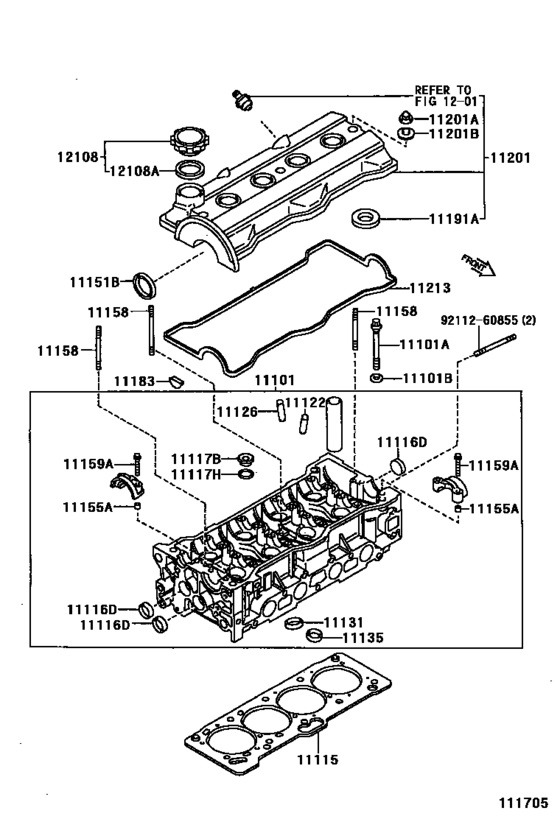

Cylinder Head ([05.1992 - ] (9205- )4AF) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- STD
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-19225
Head Sub-Assy, Cylinder
[05.1992 - 05.1998] 4AF..AE101 |
11101-19225 |
— | ||
|
11101A
|
11101A
90109-10058
Bolt(For Cylinder Head Set)
[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# INTAKE |
90109-10058 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02120 Bolt(For Cylinder Head Set)[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# INTAKE |
90910-02120 |
from US $3.94 |
||
|
11101A
|
11101A
90109-10059
Bolt(For Cylinder Head Set)
[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# EXHAUST |
90109-10059 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02121 Bolt(For Cylinder Head Set)[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# EXHAUST |
90910-02121 |
from US $4.02 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90201-10344 |
US $1.76 |
||
|
11115
|
11115
11115-16082 Gasket, Cylinder Head[05.1992 - 05.1998] 4AF..AE101 |
11115-16082 |
from US $49.98 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# |
96411-42800 |
from US $2.91 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[05.1992 - 05.1998] 4AF..AE101 |
90341-20002 |
from US $2.88 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.1991 - 05.1998] 4AF,4AGE..AE101 |
90430-20004 |
from US $0.98 |
||
|
11122
|
11122
11122-15030 Bush, Intake Valve Guide[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# STD,(J) |
11122-15030 |
from US $9.73 |
||
|
11122
|
11122
11123-15030 Bush, Intake Valve Guide[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# O/S 0.05,(J) |
11123-15030 |
US $11.07 |
||
|
11126
|
11126
11122-15030 Bush, Intake Valve Guide[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# STD,(J) |
11122-15030 |
from US $9.73 |
||
|
11126
|
11126
11123-15030 Bush, Intake Valve Guide[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# O/S 0.05,(J) |
11123-15030 |
US $11.07 |
||
|
11131
|
11131
11131-15040
Seat, Intake Valve
[05.1992 - 05.1998] 4AF..AE101 STD |
11131-15040 |
— | ||
|
11131
|
11131
11132-15040 Seat, Intake Valve[05.1992 - 05.1998] 4AF..AE101 O/S 0.03 |
11132-15040 |
US $14.27 |
||
|
11135
|
11135
11135-15030 Seat, Exhaust Valve[08.1991 -] 4AF#,5AFE,7AFE..AE10#..GCC,GEN STD |
11135-15030 |
US $19.04 |
||
|
11135
|
11135
11136-15030 Seat, Exhaust Valve[08.1991 -] 4AF#,5AFE,7AFE..AE10#..GCC,GEN O/S 0.03 |
11136-15030 |
US $14.85 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[05.1992 - 05.1998] 4AF..AE101 |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[05.1992 - 05.1998] 4AF..AE101 |
90311-35040 |
from US $5.60 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# |
90253-09001 |
US $2.40 |
||
|
11158
|
11158
90116-06073
Bolt, Stud(For Head To Cylinder Head Cover)
[05.1992 -] 4AF..AE101 L=108 |
90116-06073 |
— | ||
|
11158
|
11158
90116-06074 Bolt, Stud(For Head To Cylinder Head Cover)[05.1992 -] 4AF..AE101 L=80 |
90116-06074 |
US $2.33 |
||
|
11159A
|
11159A
90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)[05.1992 - 05.1998] 4AF..AE101 |
90109-06080 |
US $2.24 |
||
|
11183
|
11183
11183-15020 Plug, Semicircular[08.1991 - 09.1994] 4AF#,5AFE,7AFE..AE10# |
11183-15020 |
US $10.08 |
||
|
11191A
|
11191A
11193-15010 Gasket(For Spark Plug Tube)[08.1991 - 10.1998] 4AF#,5AFE,7AFE..AE10#..GCC,GEN |
11193-15010 |
from US $8.27 |
||
|
11201
|
11201
11210-15050 Cover Sub-Assy, Cylinder Head[05.1992 - 05.1998] 4AF..AE101 |
11210-15050 |
US $291.20 |
||
|
11201A
|
11201A
90176-06008 Nut, Cap(For Cylinder Head Cover)[05.1992 - 05.1998] 4AF..AE101 |
90176-06008 |
US $5.60 |
||
|
11201B
|
11201B
90210-08020 Washer, Seal(For Cylinder Head Cover)[05.1992 - 05.1998] 4AF..AE101 |
90210-08020 |
from US $2.44 |
||
|
11213
|
11213
11213-15050 Gasket, Cylinder Head Cover[05.1992 - 05.1998] 4AF..AE101 |
11213-15050 |
from US $15.62 |
||
|
12108
|
12108
12180-62011 Cap Sub-Assy, Oil Filler[05.1992 - 12.1993] 4AF..AE101 |
12180-62011 |
US $13.10 |
||
| replacement | |||||
|
12108
|
12108
12180-65011 Cap Sub-Assy, Oil Filler[05.1992 - 12.1993] 4AF..AE101 |
12180-65011 |
from US $14.20 |
||
|
12108
|
12108
12180-65011 Cap Sub-Assy, Oil Filler[12.1993 - 05.1998] 4AF..AE101 |
12180-65011 |
from US $14.20 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1991 -] 4AF#,5AFE,7AFE..AE10#..GCC,GEN |
90430-37140 |
from US $1.21 |
||
|
9211260855
|
9211260855
92112-60855 New Genuine Part |
92112-60855 |
US $2.34 |
||
