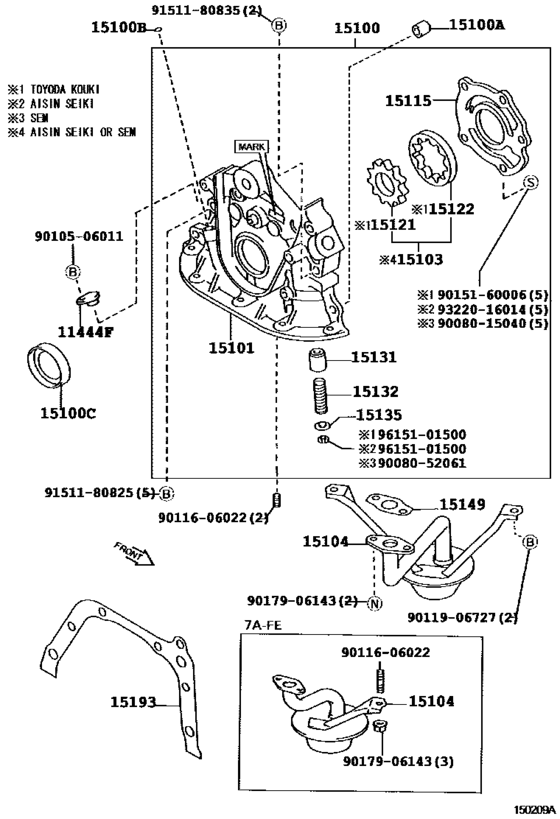

Engine Oil Pump ([08.1991 - ] (9108- )4AF#,5AFE,7AFE) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- STD
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-15040 Pump Assy, Oil[08.1994 - 05.1998] 4AF..AE101 |
15100-15040 |
US $324.69 |
||
| replacement | |||||
|
15100
|
15100
15100-15050 Pump Assy, Oil[08.1994 - 05.1998] 4AF..AE101 |
15100-15050 |
from US $133.54 |
||
|
15100
|
15100
15100-15050 Pump Assy, Oil[05.1992 - 08.1994] 4AF..AE101 |
15100-15050 |
from US $133.54 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90253-11021 |
from US $1.46 |
||
|
15100B
|
15100B
96721-19010 Ring, O(For Oil Level Gage Guide)[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
96721-19010 |
from US $1.64 |
||
|
15100C
|
15100C
90311-32018
Seal(For Oil Pump)
[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90311-32018 |
— | ||
| replacement | |||||
|
15100C
|
15100C
90311-32020 Oil Seal[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE..AE10# |
90311-32020 |
from US $5.60 |
||
|
15101
|
15101
15011-15050 Body Sub-Assy, Oil Pump[05.1992 - 10.1995] 4AF..AE101 AISIN SEIKI |
15011-15050 |
US $125.22 |
||
|
15101
|
15101
15101-15040 Body Sub-Assy, Oil Pump[05.1992 - 10.1995] 4AF..AE101 TOYODA KOUKI |
15101-15040 |
US $125.22 |
||
|
15103
|
15103
15103-15020
Gear Set, Oil Pump
[08.1991 - 10.1995] 4AF#,5AFE..AE100,101..GCC,GEN AISIN SEIKI (PNC 15101):REFER TO ILLUST. |
15103-15020 |
— | ||
|
15104
|
15104
15104-15090 Strainer Sub-Assy, Oil[01.1992 - 09.1994] 4AF#,4AGE,5AFE..AE100,101 |
15104-15090 |
from US $33.25 |
||
|
15115
|
15115
15115-15020 Cover, Oil Pump[08.1991 - 12.1994] 4AF#,5AFE,7AFE..AE10#..GCC,GEN AISIN SEIKI |
15115-15020 |
US $21.84 |
||
|
15115
|
15115
15115-15030 Cover, Oil Pump[08.1991 - 11.1992] 4AF#,5AFE..AE10# TOYODA KOUKI |
15115-15030 |
US $21.84 |
||
| replacement | |||||
|
15115
|
15115
15115-16060 Cover, Oil Pump[08.1991 - 11.1992] 4AF#,5AFE..AE10# TOYODA KOUKI |
15115-16060 |
US $18.05 |
||
|
15115
|
15115
15115-16060 Cover, Oil Pump[11.1992 - 10.1995] 4AF#,5AFE,7AFE..AE10#..GCC,GEN TOYODA KOUKI |
15115-16060 |
US $18.05 |
||
|
15121
|
15121
15121-15040 Gear, Oil Pump Drive[08.1991 -] 4AF#,5AFE..AE100,101..GCC,GEN TOYODA KOUKI (PNC 15101):REFER TO ILLUST. |
15121-15040 |
US $42.37 |
||
|
15122
|
15122
15122-15040 Gear, Oil Pump Driven[08.1991 -] 4AF#,5AFE..AE100,101..GCC,GEN TOYODA KOUKI (PNC 15101):REFER TO ILLUST. |
15122-15040 |
US $42.37 |
||
|
15131
|
15131
15131-15030 Valve, Oil Pump Relief[08.1991 - 10.1995] 4AF#,5AFE,7AFE..AE10#..GCC,GEN TOYODA KOUKI |
15131-15030 |
US $6.55 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[08.1991 - 12.1994] 4AF#,5AFE,7AFE..AE10#..GCC,GEN AISIN SEIKI |
15131-24010 |
from US $4.04 |
||
|
15132
|
15132
15132-15030 Spring, Oil Pump Relief Valve[08.1991 - 10.1995] 4AF#,5AFE,7AFE..AE10#..GCC,GEN TOYODA KOUKI |
15132-15030 |
US $3.35 |
||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[08.1991 - 12.1994] 4AF#,5AFE,7AFE..AE10#..GCC,GEN AISIN SEIKI |
15132-40010 |
from US $2.65 |
||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[08.1991 - 12.1994] 4AF#,5AFE,7AFE..AE10#..GCC,GEN AISIN SEIKI |
15135-15010 |
US $4.80 |
||
|
15135
|
15135
15135-15030 Retainer, Oil Pump Relief Valve[08.1991 - 10.1995] 4AF#,5AFE,7AFE..AE10#..GCC,GEN TOYODA KOUKI |
15135-15030 |
US $3.35 |
||
|
15149
|
15149
15149-16010 Gasket, Oil Strainer Flange[05.1992 -] 4AF#,4AGE,5AFE,7AFE..AE10#..GCC,GEN |
15149-16010 |
US $3.84 |
||
|
15193
|
15193
15197-15012
Gasket, Oil Pump
[08.1991 - 08.1994] 4AF#,4AGE,5AFE..AE100,101 |
15197-15012 |
— | ||
| replacement | |||||
|
15193
|
15193
15197-16030 Gasket, Oil Pump[08.1991 - 08.1994] 4AF#,4AGE,5AFE..AE100,101 |
15197-16030 |
from US $7.39 |
||
|
15193
|
15193
15197-15030 Gasket, Oil Pump[08.1994 - 08.1999] 4AF#,4AGE,5AFE..AE100,101..GCC,GEN |
15197-15030 |
US $11.94 |
||
| replacement | |||||
|
15193
|
15193
15197-16030 Gasket, Oil Pump[08.1994 - 08.1999] 4AF#,4AGE,5AFE..AE100,101..GCC,GEN |
15197-16030 |
from US $7.39 |
||
|
9008015040
|
9008015040
90080-15040 New Genuine Part |
90080-15040 |
US $1.46 |
||
|
9008052061
|
9008052061
90080-52061 New Genuine Part |
90080-52061 |
US $2.62 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.80 |
||
|
9011606022
|
9011606022
90116-06022 Bolt, Stud(For Valve Push Rod Cover) |
90116-06022 |
from US $1.95 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $1.92 |
||
| replacement | |||||
|
9011906727
|
9011906727
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9015160006
|
9015160006
90151-60006 New Genuine Part |
90151-60006 |
US $2.56 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.84 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9151180835
|
9151180835
91511-80835 Bolt(For Transaxle Case & Engine Setting) |
91511-80835 |
US $1.75 |
||
| replacement | |||||
|
9151180835
|
9151180835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.98 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $2.72 |
||
