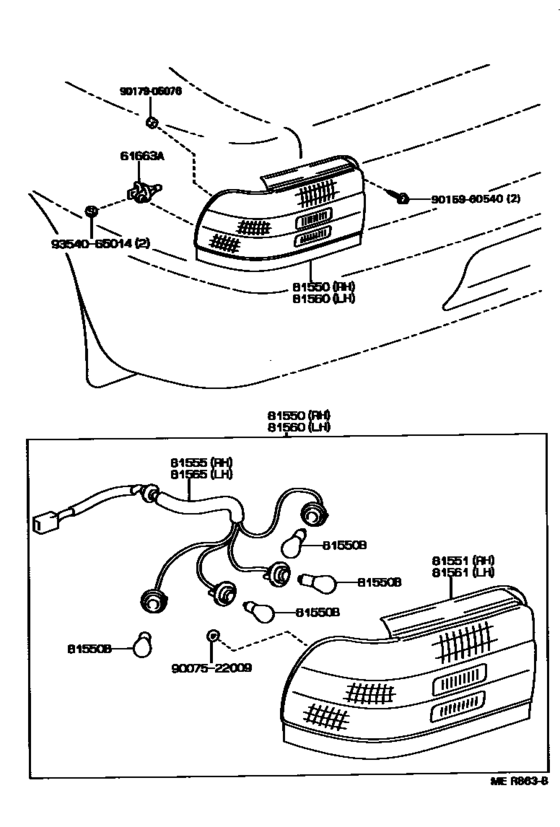

Rear Combination Lamp ([08.1991 - ] (9108- )SED) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- AE101
- grade
- STD
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61663A
|
61663A
61663-12010 Bracket, Rear Combination Lamp Mounting[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
61663-12010 |
US $5.42 |
||
|
81550
|
81550
81550-1A720 Lamp Assy, Rear Combination, Rh[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81550-1A720 |
US $289.74 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[08.1991 - 05.1993] AE10#,CE100,EE10# 12V 21W,TURN OR BACK |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1991 - 05.1993] AE10#,CE100,EE100,101..CP,SED 12V 21/5W,TAIL & STOP |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-1A720
Lens, Rear Combination Lamp, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81551-1A720 |
— | ||
|
81555
|
81555
81555-1A720
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81555-1A720 |
— | ||
|
81560
|
81560
81560-1A630
Lamp Assy, Rear Combination, Lh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81560-1A630 |
— | ||
|
81561
|
81561
81561-1A630 Lens, Rear Combination Lamp, Lh[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81561-1A630 |
US $238.78 |
||
|
81565
|
81565
81555-1A720
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81555-1A720 |
— | ||
|
9007522009
|
9007522009
90075-22009 New Genuine Part |
90075-22009 |
US $1.16 |
||
|
9015960540
|
9015960540
90159-60540 SCREW W/WASHER |
90159-60540 |
US $1.12 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
|
9354065014
|
9354065014
93540-65014 New Genuine Part |
93540-65014 |
US $0.92 |
||
