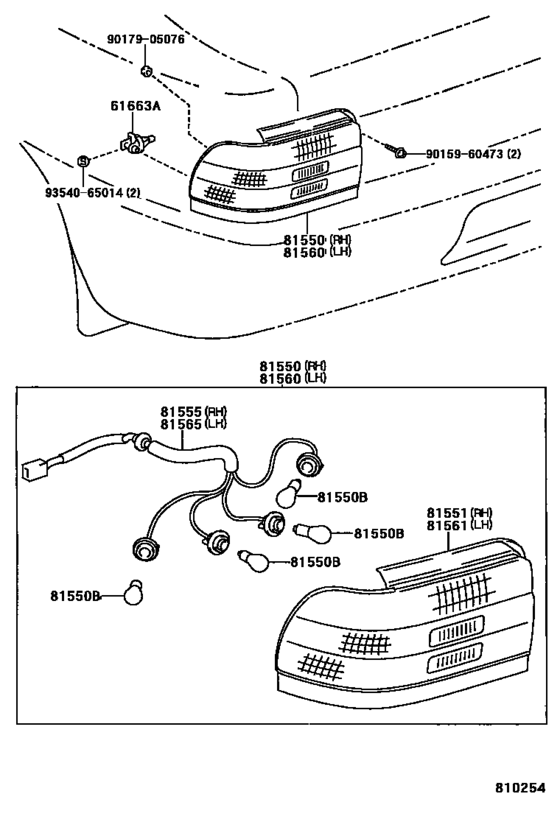

Rear Combination Lamp ([09.1992 - ] (9209- )NAP) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- U.S.A.
- Frame
- AE101
- grade
- D
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1992
- To
- 08.1997
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61663A
|
61663A
61663-12010 Bracket, Rear Combination Lamp Mounting[09.1992 -] AE10#..NAP |
61663-12010 |
US $5.42 |
||
|
81550
|
81550
81550-02050
Lamp Assy, Rear Combination, Rh
[09.1992 - 08.1995] AE10#..NAP |
81550-02050 |
— | ||
|
81550
|
81550
81550-02060 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1995 -] AE10#..NAP |
81550-02060 |
US $256.26 |
||
|
81550B
|
81550B
90080-81057
Bulb(For Rear Combination Lamp)
[08.1995 -] AE10#..NAP 12V 27W,TURN |
90080-81057 |
— | ||
|
81550B
|
81550B
90081-81003
Bulb(For Rear Combination Lamp)
[09.1992 -] AE10#..NAP 12V 27/8W,TAIL & STOP |
90081-81003 |
— | ||
|
81550B
|
81550B
90081-81004
Bulb (For License Plate Lamp)
[08.1995 -] AE10#..NAP 12V 27W,BACK |
90081-81004 |
— | ||
|
81551
|
81551
81551-02020
Lens, Rear Combination Lamp, Rh
[09.1992 - 08.1995] AE10#..NAP |
81551-02020 |
— | ||
|
81551
|
81551
81551-02060 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1995 -] AE10#..NAP |
81551-02060 |
US $227.14 |
||
|
81555
|
81555
81555-02030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1992 - 08.1995] AE10#..NAP |
81555-02030 |
— | ||
|
81555
|
81555
81555-02060
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1995 -] AE10#..NAP |
81555-02060 |
— | ||
|
81560
|
81560
81560-02050
Lamp Assy, Rear Combination, Lh
[09.1992 - 08.1995] AE10#..NAP |
81560-02050 |
— | ||
|
81560
|
81560
81560-02060 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1995 -] AE10#..NAP |
81560-02060 |
US $256.26 |
||
|
81561
|
81561
81561-02020 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [09.1992 - 08.1995] AE10#..NAP |
81561-02020 |
US $136.01 |
||
|
81561
|
81561
81561-02060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1995 -] AE10#..NAP |
81561-02060 |
US $227.14 |
||
|
81565
|
81565
81555-02030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1992 - 08.1995] AE10#..NAP |
81555-02030 |
— | ||
|
81565
|
81565
81555-02060
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1995 -] AE10#..NAP |
81555-02060 |
— | ||
|
9015960473
|
9015960473
90159-60473 New Genuine Part |
90159-60473 |
US $0.92 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
|
9354065014
|
9354065014
93540-65014 New Genuine Part |
93540-65014 |
US $0.92 |
||
