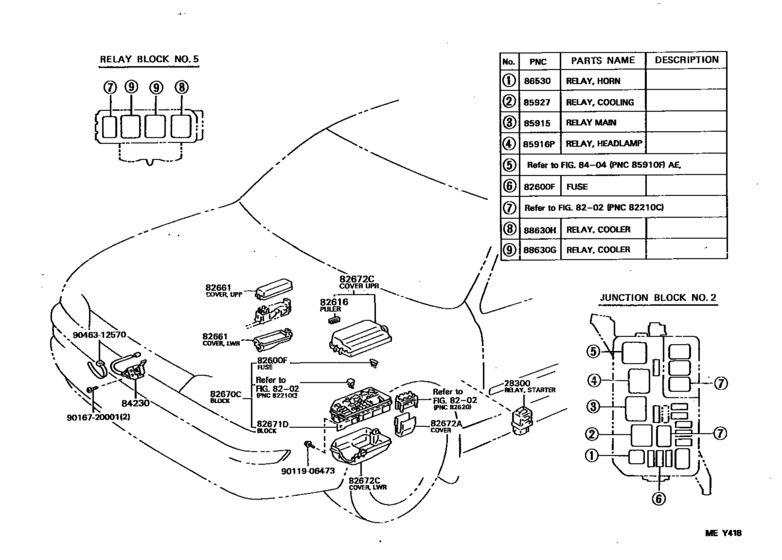

Switch & Relay & Computer ([02.1994 - ] ENGINE ROOM (9402- )) Diagram Toyota COROLLA
- Year
- 1994 - 1996
- Sales region
- General
- Frame
- AE102
- grade
- GLI
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 02.1994
- To
- 05.1996
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[02.1994 - 05.1996] 7AFE..AE102 |
28300-10020 |
from US $57.15 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[02.1994 - 05.1996] AE102 30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[02.1994 - 05.1996] AE102 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[02.1994 - 05.1996] AE102 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[02.1994 - 05.1996] AE102 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[02.1994 - 05.1996] AE102 7.5A |
90982-09005 |
from US $1.09 |
||
|
82616
|
82616
82616-12020 Puller, Fuse[02.1994 - 05.1996] AE102 |
82616-12020 |
US $4.19 |
||
|
82661
|
82661
82661-12200 Cover, Relay Block, No.1[02.1994 - 05.1996] AE102 UPR |
82661-12200 |
US $11.53 |
||
|
82661
|
82661
82661-12220 Cover, Relay Block, No.1[02.1994 - 05.1996] AE102 LWR |
82661-12220 |
US $7.27 |
||
|
82670C
|
82670C
82670-12270
Block Assy, Junction, No.3
[02.1994 - 05.1996] AE102 |
82670-12270 |
— | ||
|
82671D
|
82671D
82671-12170
Block, Junction
[02.1994 - 05.1996] AE102 |
82671-12170 |
— | ||
|
82672A
|
82672A
82672-12220
Cover, Junction Block
[02.1994 - 05.1996] AE102 |
82672-12220 |
— | ||
|
82672C
|
82672C
82672-12230
Cover, Junction Block
[02.1994 - 05.1996] AE102 LOWER |
82672-12230 |
— | ||
|
82672C
|
82672C
82672-12250
Cover, Junction Block
[02.1994 - 05.1996] AE102 UPPER |
82672-12250 |
— | ||
| replacement | |||||
|
82672C
|
82672C
82672-12251
Cover, Junction Block
[02.1994 - 05.1996] AE102 UPPER |
82672-12251 |
— | ||
|
84230
|
84230
84231-24030 Switch Assy, Courtesy Lamp (For Engine Room)[02.1994 - 05.1996] AE102 |
84231-24030 |
US $33.20 |
||
|
85915
|
85915
90987-04002 Relay, Ignition, No.1[02.1994 - 05.1996] AE102 |
90987-04002 |
from US $25.17 |
||
|
85916P
|
85916P
90987-02006 Relay[02.1994 - 05.1996] AE102 |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90987-03003 Relay Assy, Fuel Pump[02.1994 - 08.1996] AE102 |
90987-03003 |
from US $24.14 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[02.1994 - 05.1996] AE102 |
86530-20070 |
from US $12.54 |
||
|
88630G
|
88630G
90987-02009 Relay Assy[02.1994 - 05.1996] AE102 |
90987-02009 |
from US $33.87 |
||
|
88630H
|
88630H
90987-04003 Relay, Ignition, No.1[02.1994 - 05.1996] AE102 |
90987-04003 |
from US $31.32 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.12 |
||
|
9016720001
|
9016720001
90167-20001 New Genuine Part |
90167-20001 |
US $0.87 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
