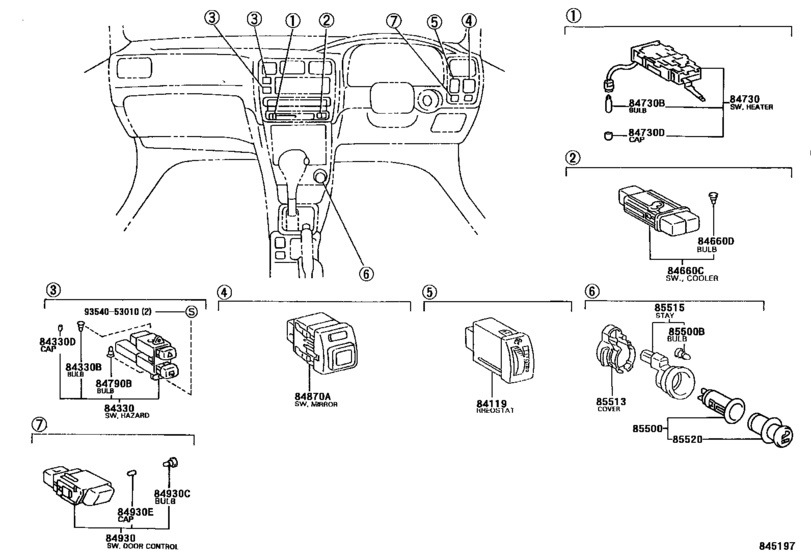

Switch & Relay & Computer ([02.1994 - ] INSTRUMENT PANEL SWITCH (9402- )) Diagram Toyota COROLLA
- Year
- 1994 - 1996
- Sales region
- General
- Frame
- AE102
- grade
- GLI
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 02.1994
- To
- 05.1996
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-12150 Rheostat, Light ControlLIGHT CONTROL [02.1994 - 05.1996] AE102 |
84119-12150 |
US $81.54 |
||
|
84330
|
84330
84332-12330 Switch Assy, Hazard Warning Signal[02.1994 - 05.1996] AE102 |
84332-12330 |
US $77.17 |
||
| replacement | |||||
|
84330
|
84330
84332-12390
Switch Assy, Hazard Warning Signal
[02.1994 - 05.1996] AE102 |
84332-12390 |
— | ||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[02.1994 - 05.1996] AE102 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84330D
|
84330D
84998-10610 Cap, Hazard Warning Switch Bulb[02.1994 - 05.1996] AE102 |
84998-10610 |
US $2.77 |
||
|
84660C
|
84660C
84660-12170
Switch, Cooler
[02.1994 - 05.1996] AE102 |
84660-12170 |
— | ||
|
84660D
|
84660D
88607-20060
Bulb(For Cooler Switch)
[02.1994 - 05.1996] AE102 14V 0.08A |
88607-20060 |
— | ||
|
84730
|
84730
84732-12200 Switch Assy, Heater Blower[02.1994 - 05.1996] AE102 |
84732-12200 |
US $69.01 |
||
|
84730B
|
84730B
90981-11040 Bulb, Position Indicator Lamp[02.1994 - 05.1996] AE102 12V 2W |
90981-11040 |
from US $2.18 |
||
|
84730D
|
84730D
84998-10100 Cap, Heater Blower Switch Bulb[02.1994 - 05.1996] AE102 |
84998-10100 |
US $3.20 |
||
|
84790B
|
84790B
84999-10470 Bulb, Hazard Warning Signal Switch[02.1994 - 05.1996] AE102 14V 1.12W |
84999-10470 |
from US $6.12 |
||
|
84870A
|
84870A
84870-12100 Switch Assy, Outer Mirror[02.1994 - 05.1996] AE102 |
84870-12100 |
US $81.54 |
||
|
84930
|
84930
84930-12100 Switch Assy, Door ControlDOOR CONTROL [02.1994 - 05.1996] AE102 |
84930-12100 |
US $61.01 |
||
|
84930C
|
84930C
84999-10870 Bulb(For Door Control Switch)[02.1994 - 05.1996] AE102 14V 0.84W |
84999-10870 |
US $5.10 |
||
|
84930E
|
84930E
84998-10780 Cap(For Door Control Switch Bulb)[02.1994 - 05.1996] AE102 |
84998-10780 |
US $6.99 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[05.1994 - 05.1996] AE102 |
85500-12240 |
from US $28.68 |
||
|
85500
|
85500
85500-89106
Lighter Assy, Cigarette
[02.1994 - 05.1994] AE102 |
85500-89106 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[02.1994 - 05.1994] AE102 |
85500-12240 |
from US $28.68 |
||
|
85500B
|
85500B
84999-10230
Bulb, Cigarette Lighter
[02.1994 - 05.1996] AE102 14V 1.4W |
84999-10230 |
— | ||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[02.1994 - 05.1996] AE102 |
85513-12020 |
from US $5.21 |
||
|
85515
|
85515
85515-12070 Stay, Cigarette Lighter Bezel[02.1994 - 05.1996] AE102 |
85515-12070 |
US $16.60 |
||
| replacements | |||||
|
85515
|
85515
55477-12100
Bezel, Cigarette Lighter Hole
[02.1994 - 05.1996] AE102 |
55477-12100 |
— | ||
|
85515
|
85515
85515-12130 Stay, Cigarette Lighter Bezel[02.1994 - 05.1996] AE102 |
85515-12130 |
US $11.53 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[05.1994 - 05.1996] AE102 |
85520-28010 |
from US $17.90 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[02.1994 - 05.1994] AE102 |
85520-89101 |
from US $19.85 |
||
|
9354053010
|
9354053010
93540-53010 New Genuine Part |
93540-53010 |
US $0.96 |
||
