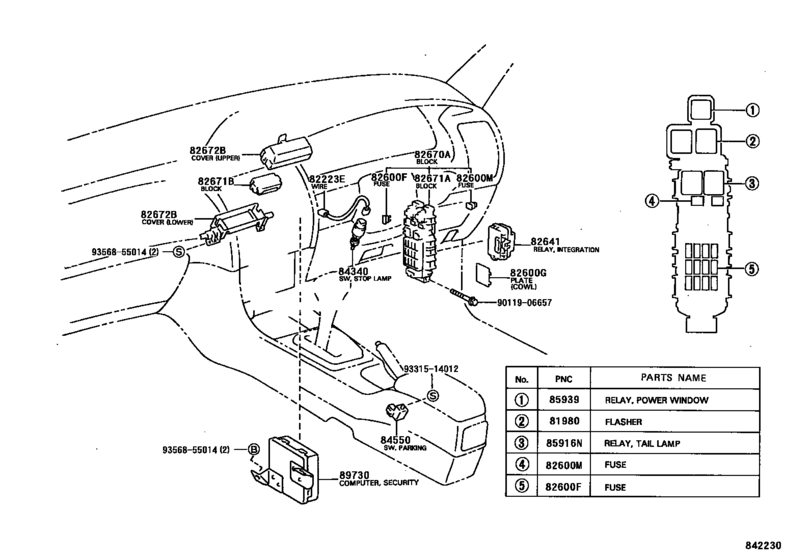

Switch & Relay & Computer ([02.1994 - ] COWL RH (9402- )) Diagram Toyota COROLLA
- Year
- 1994 - 1996
- Sales region
- General
- Frame
- AE102
- grade
- GLI
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 02.1994
- To
- 05.1996
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-02010 Flasher Assy, Turn Signal[02.1994 - 05.1996] AE102 TRIDON |
81980-02010 |
US $101.92 |
||
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[02.1994 - 05.1996] AE102 NIPPONDENSO |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[02.1994 - 05.1996] AE102 NIPPONDENSO |
81980-32010 |
from US $56.55 |
||
|
82223E
|
82223E
82223-12530
Wire, Clutch Start Switch
[02.1994 - 05.1996] AE102 |
82223-12530 |
— | ||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[02.1994 - 05.1996] AE102 30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[02.1994 - 05.1996] AE102 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[02.1994 - 05.1996] AE102 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[02.1994 - 05.1996] AE102 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[02.1994 - 05.1996] AE102 7.5A |
90982-09005 |
from US $1.09 |
||
|
82600G
|
82600G
82683-12160 Plate, Caution(For Fuse)[02.1994 - 05.1996] AE102 |
82683-12160 |
US $3.93 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[02.1994 - 05.1996] AE102 30A |
90982-10001 |
from US $3.84 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[02.1994 - 05.1996] AE102 40A |
90982-10002 |
US $4.48 |
||
|
82641
|
82641
82641-12031 Relay, Integration No.1INTEGRATION NO.1 [02.1994 - 05.1995] AE102 |
82641-12031 |
US $205.30 |
||
|
82641
|
82641
82641-13020 Relay, Integration No.1[05.1995 - 05.1996] AE102 |
82641-13020 |
US $177.63 |
||
|
82670A
|
82670A
82670-12290 Block Assy, Junction, No.1[02.1994 - 05.1996] AE102 |
82670-12290 |
US $273.73 |
||
|
82671A
|
82671A
82671-12130 Block, Junction[02.1994 - 05.1996] AE102 |
82671-12130 |
US $126.67 |
||
|
82671B
|
82671B
82671-12150 Block, Junction[02.1994 - 05.1996] AE102 |
82671-12150 |
US $61.59 |
||
|
82672B
|
82672B
82672-12200 Cover, Junction Block[02.1994 - 05.1996] AE102 UPR |
82672-12200 |
US $28.54 |
||
|
82672B
|
82672B
82672-12210 Cover, Junction Block[02.1994 - 05.1996] AE102 LWR |
82672-12210 |
US $28.54 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[02.1994 - 05.1996] AE102 |
84340-32050 |
from US $19.29 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[02.1994 - 05.1996] AE102 |
84550-33010 |
from US $18.39 |
||
|
85916N
|
85916N
90987-02009 Relay Assy[02.1994 - 05.1996] AE102 |
90987-02009 |
from US $33.87 |
||
|
85939
|
85939
90987-02009 Relay Assy[02.1994 - 05.1996] AE102 |
90987-02009 |
from US $33.87 |
||
|
89730
|
89730
89730-12050 Computer Assy, Security WarningSECURITY WARNING [02.1994 - 05.1996] AE102 |
89730-12050 |
US $543.09 |
||
|
9011906657
|
9011906657
90119-06657 New Genuine Part |
90119-06657 |
US $1.89 |
||
| replacement | |||||
|
9011906657
|
9011906657
91651-60655 BOLT |
91651-60655 |
US $1.75 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
