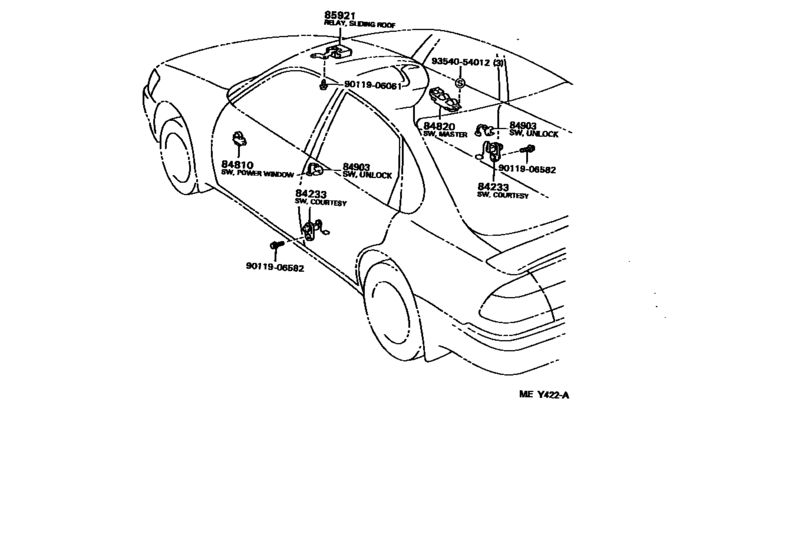

Switch & Relay & Computer ([02.1994 - ] ROOF & FRONT DOOR (9402- )) Diagram Toyota COROLLA
- Year
- 1994 - 1996
- Sales region
- General
- Frame
- AE102
- grade
- GLI
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 02.1994
- To
- 05.1996
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-12080 Switch Assy, Courtesy Lamp (For Front Door)[02.1994 - 05.1996] AE102 |
84231-12080 |
US $17.26 |
||
| replacement | |||||
|
84233
|
84233
84231-32040 Switch Assy, Courtesy Lamp (For Front Door)[02.1994 - 05.1996] AE102 |
84231-32040 |
from US $14.24 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[02.1994 - 05.1996] AE102 |
84810-12080 |
from US $31.35 |
||
|
84820
|
84820
84820-12231 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [02.1994 - 05.1995] AE102 |
84820-12231 |
US $324.69 |
||
| replacement | |||||
|
84820
|
84820
84820-33090
Master Switch Assy, Power Window Regulator
[02.1994 - 05.1995] AE102 |
84820-33090 |
— | ||
|
84820
|
84820
84820-33050 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [05.1995 - 05.1996] AE102 |
84820-33050 |
US $321.78 |
||
|
84903
|
84903
84903-12090 Switch Sub-Assy, Door Un-LockDOOR UN-LOCK [02.1994 - 05.1996] AE102 |
84903-12090 |
US $33.20 |
||
|
84903
|
84903
84903-12100 Switch Sub-Assy, Door Un-LockDOOR UN-LOCK [02.1994 - 05.1996] AE102 LH |
84903-12100 |
US $49.94 |
||
|
84903
|
84903
84903-12110 Switch Sub-Assy, Door Un-LockDOOR UN-LOCK [02.1994 - 05.1996] AE102 RH |
84903-12110 |
US $49.94 |
||
|
85921
|
85921
85921-12050 Relay, Sliding Roof ControlSLIDING ROOF CONTROL [02.1994 - 05.1996] AE102 |
85921-12050 |
US $365.46 |
||
|
9011906061
|
9011906061
90119-06061 New Genuine Part |
90119-06061 |
US $0.87 |
||
|
9011906582
|
9011906582
90119-06582 New Genuine Part |
90119-06582 |
US $1.60 |
||
| replacement | |||||
|
9011906582
|
9011906582
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
